Wi-Fi模塊專用晶振ECS-160-18-33-AEN-TR3

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2023-02-16 17:00:11【大中小】

分享到：

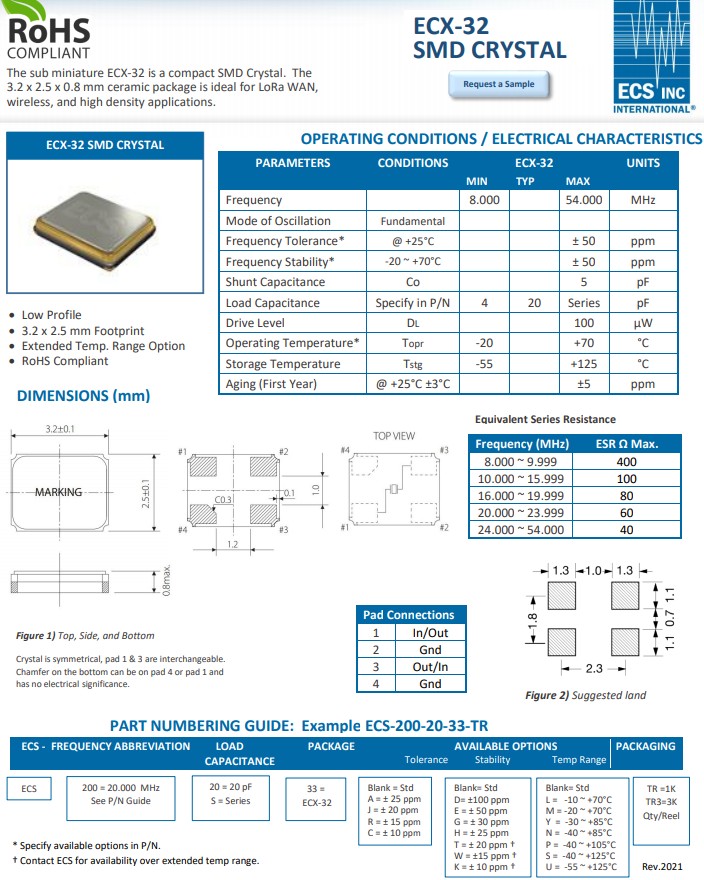

ECS晶振ECX-32系列緊湊型表面貼裝石英晶體，采用工業標準3.2x2.5mm陶瓷封裝四腳貼片晶振，MHz石英晶體提供8MHz至54MHz的寬頻率范圍。這些晶體具有10ppm的嚴格穩定性和容差選項，以及-50°C至+125°C的擴展溫度范圍選項。標準器件提供20pF負載電容，但額外提供8pF、10pF、12pF和18pF負載電容選項。這些石英貼片晶振非常適合電路板空間至關重要的無線、移動通訊、LoRa WAN，物聯網、Wi-Fi和藍牙應用。Wi-Fi模塊專用晶振ECS-160-18-33-AEN-TR3

Wi-Fi模塊專用晶振ECS-160-18-33-AEN-TR3

特點：
小體積尺寸：3.2x2.5x0.8mm無源晶振
頻率范圍：8.000MHz至54.000MHz
標準工業溫度范圍：-20℃至+70℃
提供擴展溫度范圍選項
嚴格的10ppm容差
緊密的10ppm穩定性
符合RoHS和REACH標準
應用于：無線，通訊，Wi-Fi，藍牙，物聯網

原廠編碼	廠家	型號	頻率	工作溫度	包裝/封裝
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	SMD晶振
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead

圖片	石英晶體諧振器	頻率	頻率穩定性	工作溫度
	ECS-240-18-33-JEN-TR3	24 MHz	±50ppm	-40°C ~ +85°C
	ECS-80-10-33-CKM-TR3	8 MHz	±10ppm	-20°C ~ +70°C
	ECS-160-18-33-AEN-TR3	16 MHz	±50ppm	-40°C ~ +85°C
	ECS-200-18-33-JGN-TR3	20 MHz	±30ppm	-40°C ~ +85°C
	ECS-250-10-33-AGM-TR3	25 MHz	±30ppm	-20°C ~ +70°C
	ECS-100-18-33-AGM-TR3	10 MHz	±30ppm	-20°C ~ +70°C
