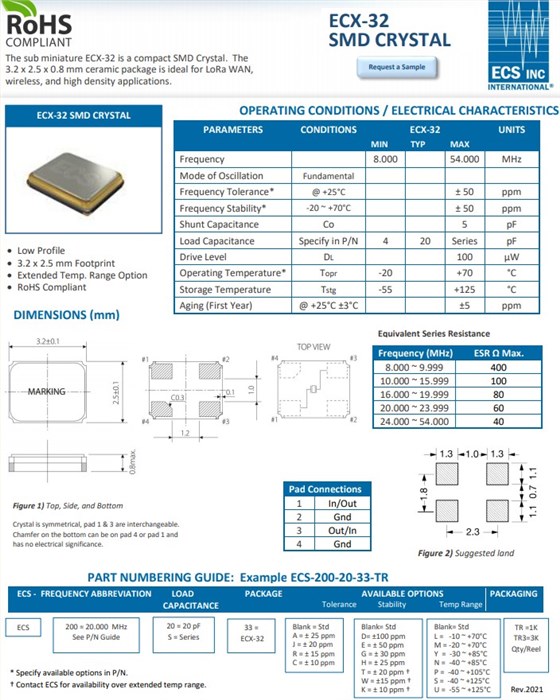

ECS晶振ECX-32系列緊湊型表面貼裝石英晶體，采用工業標準3.2x2.5mm陶瓷封裝四腳貼片晶振，MHz石英晶體提供8MHz至54MHz的寬頻率范圍。這些晶體具有10ppm的嚴格穩定性和容差選項，以及-50°C至+125°C的擴展溫度范圍選項。標準器件提供20pF負載電容，但額外提供8pF、10pF、12pF和18pF負載電容選項。這些石英貼片晶振非常適合電路板空間至關重要的無線、移動通訊、LoRa WAN，物聯網、Wi-Fi和藍牙應用。Wi-Fi模塊專用晶振ECS-160-18-33-AEN-TR3
Wi-Fi模塊專用晶振ECS-160-18-33-AEN-TR3
特點：
小體積尺寸：3.2x2.5x0.8mm無源晶振
頻率范圍：8.000MHz至54.000MHz
標準工業溫度范圍：-20℃至+70℃
提供擴展溫度范圍選項
嚴格的10ppm容差
緊密的10ppm穩定性
符合RoHS和REACH標準
應用于：無線，通訊，Wi-Fi，藍牙，物聯網
| 原廠編碼 | 廠家 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| ECS-250-20-33-CKM-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-20-33-CKM-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-20-33-CKM-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-CKM-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-CKM-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-CKM-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-20-33-CKM-TR | ECS Crystal | ECX-32 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-20-33-CKM-TR | ECS Crystal | ECX-32 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-20-33-CKM-TR | ECS Crystal | ECX-32 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-20-33-CKM-TR | ECS Crystal | ECX-32 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-20-33-CKM-TR | ECS Crystal | ECX-32 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-20-33-CKM-TR | ECS Crystal | ECX-32 | 27MHz | -20°C ~ 70°C | SMD晶振 |
| ECS-184-20-33-CKM-TR | ECS Crystal | ECX-32 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-20-33-CKM-TR | ECS Crystal | ECX-32 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-20-33-CKM-TR | ECS Crystal | ECX-32 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-20-33-DU-TR | ECS Crystal | ECX-32 | 18.432MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-184-20-33-DU-TR | ECS Crystal | ECX-32 | 18.432MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-184-20-33-DU-TR | ECS Crystal | ECX-32 | 18.432MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-120-20-33-DU-TR | ECS Crystal | ECX-32 | 12MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-120-20-33-DU-TR | ECS Crystal | ECX-32 | 12MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-120-20-33-DU-TR | ECS Crystal | ECX-32 | 12MHz | -55°C ~ 125°C | 4-SMD, No Lead |
| ECS-250-20-33-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-20-33-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-20-33-TR | ECS Crystal | ECX-32 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-120-20-33-TR | ECS Crystal | ECX-32 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| 圖片 | 石英晶體諧振器 | 頻率 | 頻率穩定性 | 工作溫度 |
|
|
ECS-240-18-33-JEN-TR3 |
24 MHz |
±50ppm |
-40°C ~ +85°C |
|
|
ECS-80-10-33-CKM-TR3 | 8 MHz | ±10ppm | -20°C ~ +70°C |
|
|
ECS-160-18-33-AEN-TR3 | 16 MHz | ±50ppm | -40°C ~ +85°C |
|
|
ECS-200-18-33-JGN-TR3 | 20 MHz | ±30ppm | -40°C ~ +85°C |
|
|
ECS-250-10-33-AGM-TR3 | 25 MHz | ±30ppm | -20°C ~ +70°C |
|
|
ECS-100-18-33-AGM-TR3 | 10 MHz | ±30ppm | -20°C ~ +70°C |
