彼得曼貼片石英晶振專用于超聲波,公司

PETERMANN-TECHNIK是象征著質量和可持續性。這是一家有著偉大使命的知名制造商,從打磨產品的每一個細節之中可體現，你從一個來源得到一切。從合格的設計服務到我們的內部工程，再到具有卓越一致質量和性能的最高質量產品。

30多年來，我們?cè)陬l率控制元件和系統方面積累了豐富的專業知識。我們的經驗不僅限于使用石英晶振和振蕩器開發電路。它還包括深入的工程知識，這是我們咨詢服務和頻率確定元件銷售的基礎。你可以相信我們的經驗和專業知識。因?yàn)槲覀兊哪繕?biāo)是能夠通過及時和有能力的咨詢?yōu)槟峁┳詈玫闹С帧?/span>

代表團

彼得曼技術公司努力為每一種產品和服務提供最高的質量、安全性、靈活性和客戶滿意度。作為一個充滿活力的市場環境中的創新者，我們致力于成為客戶可靠的戰略合作伙伴。憑借我們廣泛的產品和服務、不折不扣的質量和卓越的性價比，我們支持他們開發具有競爭力的高效應用。

每個開發和生產專家都知道！石英晶體不能處理超聲波焊接和清洗。高頻焊接或清洗過程會損壞石英晶體諧振器。

來自德國蘭茨貝格的制表專家PETERMANN-TECHNIK是世界上第一家推出小型化SMD晶振的公司尺寸為3.2×2.5毫米的陶瓷外殼，專門開發用于處理基于超聲波的焊接和清洗。轟動了！

與此同時，3.2×2.5 mm/4pad外殼的SMD石英(SMD03025/4系列)已成為陶瓷外殼中最便宜的小型化SMD石英。因此，最需要的外殼(3.2×2.5 mm/4pad)中提供適用于超聲波焊接和清洗的石英是合乎邏輯的。

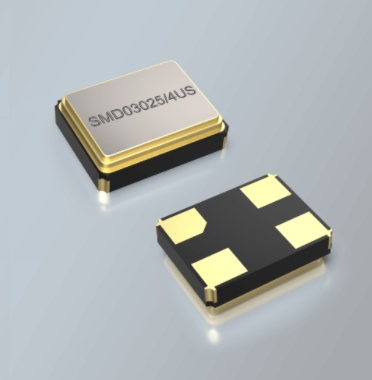

適用于超聲波的貼片石英SMD03025/4US系列可以通過超聲波焊接和清洗。為此，該石英(其石英諧振器具有特殊的固定超聲波極限)被設計用于15 kHz、20 kHz、35 kHz和40 kHz的超聲波頻率。

“SMD03025/4US”的頻率范圍為12–40 MHz，在+25°C時的頻率容差起始值為10 ppm，在-20/+70°C溫度范圍之外的溫度穩定性起始值為10 ppm，在-40/+85°C工業溫度范圍之外，最接近的溫度穩定性為15 ppm。

由于非常實惠的價格，可以使用在潔凈室制造的抗超聲波全能儀在任何應用中這就要求非常便宜的石英貼片晶振具有出色的參數和出色的耐用性，例如汽車、醫療、嵌入式、工業、商業、WIFI、無線(WLAN、ISM、KNX、ZigBee、Z-Wave等)應用。)、消費和電信部門等等。彼得曼貼片石英晶振專用于超聲波.

當然，彼得曼技術公司的產品范圍還包括32.768 kHz解決方案(石英和超低功率振蕩器)。

除了非常廣泛的產品范圍，彼得曼技術公司的專家還提供全面的產品建議。非常全面的電路分析/電路仿真也可以根據需要由內部工程人員執行。這些分析是基于振蕩晶體的DIN/IEC60444標準進行的，包括振蕩安全測試(確定準確的振蕩儲備)、壓電性能的確定和許多其他測試。

• 	Product Name	Package	Product Category	Dimensions in mm (W x D x H)	Frequency Range
  		Choose             SMD	Choose             kHz Crystal MHz	Choose	Choose
  	HC-49/US-SMD/2 pads	SMD Metal	MHz Crystal	11.05 x 4.7 x 4.2 mm	3.50 - 80.00 MHz
  	HC-49/US-GSMD/3 pads	SMD Metal	MHz Crystal	11.05 x 4.7 x 4.2 mm	3.50 - 80.00 MHz
  	HC-49/U-SMD CLIP	SMD Metal	MHz Crystal	11.05 x 5.3 x 18.0 mm	1.84 - 200.00 MHz
  	UM/1-SMD CLIP	SMD Metal	MHz Crystal	8.0 x 3.6 x 12.5 mm	6.00 - 200.00 MHz
  	UM/5-SMD CLIP	SMD Metal	MHz Crystal	6.0 x 3.6 x 10.5 mm	6.00 - 200.00 MHz
  	SMD01612/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	1.6 x 1.2 x 0.3 mm	24.00 - 285.00 MHz
  	SMD02016/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	2.0 x 1.6 x 0.45 mm	16.00 - 285.00 MHz
  	SMD02016/4 Ultrasonic	SMD Ceramic/4pad	MHz Crystal	2.0 x 1.6 x 0.45 mm	26.00 - 54.00 MHz
  	SMD02502/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	2.5 x 2.0 x 0.6 mm	12.00 - 285.00 MHz
  	SMD03025/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	3.2 x 2.5 x 0.8 mm	8.00 - 285.00 MHz
  	SMD03025/4 Ultrasonic	SMD Ceramic/4pad	MHz Crystal	3.2 x 2.5 x 0.7 mm	12.00 - 40.00 MHz
  	SMD0503/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	5.0 x 3.2 x 0.8 mm	8.00 - 133.00 MHz
  	SMD0503/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	5.0 x 3.2 x 0.75 mm	8.00 - 112.00 MHz
  	SMD0503/2CC (Low ESR)	SMD Ceramic/2pad	MHz Crystal	5.0 x 3.2 x 1.2 mm	10.00 - 54.00 MHz
  	SMD0603/4 (Low ESR)	SMD貼片晶振	MHz Crystal	6.0 x 3.5 x 1.1 mm	8.00 - 80.00 MHz
  	SMD0603/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	6.0 x 3.5 x 1.1 mm	8.00 - 160.00 MHz
  	SMD0507/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	7.0 x 5.0 x 1.3 mm	6.00 - 80.00 MHz
  	SMD0507/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	7.0 x 5.0 x 1.1 mm	6.00 - 150.00 MHz
  	SMD1045/4	SMD Ceramic/4pad	MHz Crystal	10.0 x 4.5 x 1.4 mm	3.2768 MHz - 10 MHz
  	SMD1045/2	SMD Ceramic/2pad	MHz Crystal	10.0 x 4.5 x 1.4 mm	3.2768 MHz - 10 MHz
  	HC-49/US/2 pins	THT Metal	MHz Crystal	11.05 x 4.65 x 3.5 mm	3.49 - 75.00 MHz
  	HC-49/US/3 pins	THT Metal	MHz Crystal	11.05 x 4.65 x 3.5 mm	3.49 - 75.00 MHz
  	HC-49/U	THT Metal	MHz Crystal	11.05 x 4.7 x 13.4 mm	1.84 - 200.00 MHz
  	UM/1	THT Metal	MHz Crystal	8.0 x 3.1 x 8.0 mm	6.00 - 200.00 MHz
  	UM/5	THT Metal	MHz Crystal	8.0 x 3.1 x 6.0 mm	6.00 - 200.00 MHz
  	M1610 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	1.6 x 1.0 x 0.45 mm	32.768KHZ晶振
  	M2012 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	2.0 x 1.2 x 0.55 mm	32.768 kHz
  	M3215 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz
  	M3215HT (High Temp. -40/+125°C)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz
  	M3215RR (50 kΩ - low power design)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz
  	M3215A (AEC-Q200)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz
  	M4819 (Not recommended for new design)	SMD Ceramic/2pad	kHz Crystal	4.8 x 1.9 x 0.8 mm	32.768 kHz

• 令人難以置信的廣泛最終報告提供了對連接的見解，將確認被測電路的正確尺寸，或可能包含調整建議。對該系列的支持是與客戶的工程、采購、生產和QA部門協調進行的。我們的目標是利用非常廣泛的服務，幫助客戶快速上市。

PETERMANN-TECHNIK stands for quality and sustainability. You get everything from one source. From qualified design-in service through our in-house engineering to the highest quality products with excellent consistent quality and performance.

We have developed great expertise in frequency control components and systems over more than 30 years. Our experience is not just restricted to developing circuits using quartz crystals and oscillators. It also includes in-depth engineering knowledge – the basis of our consulting services and sales of frequency-determining components. You can trust our experience and expertise. Because it is our goal to be able to provide you with the best possible support through a prompt and competent consulting.

MISSION

PETERMANN-TECHNIK strives for maximum quality, safety, flexibility and customer satisfaction with every product and service. As an innovative player in a dynamic market environment we are intent on being a reliable, strategic partner for our customers. With our extensive range of products and services, uncompromising quality and superb value for money we support them in producing competitive and efficient applications.

Every development and production specialist knows it! Quartz crystal can’t handle ultrasonic welding and cleaning. The quartz resonators are damaged by the high-frequency welding or cleaning process.

The clocking specialist PETERMANN-TECHNIK from Landsberg am Lech is the first in the world to present an SMD quartz in miniaturised ceramic housing measuring 3.2×2.5 mm, which was specially developed to handle ultrasonic-based welding and cleaning. A sensation!

In the meantime, the SMD quartz in 3.2×2.5 mm/4pad housing (series SMD03025/4) has become the cheapest miniaturised SMD quartz in ceramic housing. For this reason, it is only logical that the quartz suitable for ultrasonic welding and cleaning is available in the housing that is in greatest demand, 3.2×2.5 mm/4pad.

The SMD quartz suitable for ultrasonic from the “SMD03025/4US” series can be welded and cleaned by ultrasonic. In doing so, this quartz, whose quartz resonator has a special fixed ultrasonic limit, is designed for ultrasonic frequencies of 15 kHz, 20 kHz, 35 kHz and 40 kHz.

The “SMD03025/4US”, available with a frequency range of 12–40 MHz, can be shipped with frequency tolerances starting at ±10 ppm at +25 °C and with temperature stabilities beginning at ±10 ppm beyond the temperature range of -20/+70 °C. Beyond the industrial temperature range of -40/+85 °C, the closest temperature stability is ±15 ppm.

Because of the very affordable price, the ultrasonic-resistant all-rounder, which is manufactured in clean rooms, can be used in any application that demands very inexpensive SMD quartz with excellent parameters and outstanding durability, such as in the automotive, medical, embedded, industrial, commercial, WIFI, wireless (WLAN, ISM, KNX, ZigBee, Z-Wave, etc.), consumer and telecommunications sectors and more.

Of course, the range of PETERMANN-TECHNIK products also includes 32.768 kHz solutions (quartzes and ultra low power oscillators).

In addition to the very extensive product range, the specialists at PETERMANN-TECHNIK also provide comprehensive product advice. Very comprehensive circuit analyses/circuit simulations can also be performed by in-house engineering as needed. These analyses are carried out based on the DIN/IEC60444 standards for oscillating crystals and include oscillation safety tests (determination of the exact oscillation reserve), determination of the piezoelectricity and many other tests.

The incredibly extensive final report provides insight on the connection, will confirm the correct dimensioning of the tested circuitry or may contain proposals for adjustment. Support for this series is carried out in coordination with the customer’s engineering, purchasing, production and QA departments. The aim is to make use of a very extensive range of services to be able to facilitate a fast time to market for the customer.
