北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz

來源：*** 查看手機網址

掃一掃!

北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz

掃一掃!

瀏覽：- 發布日期：2023-05-25 09:53:51【大中小】

分享到：

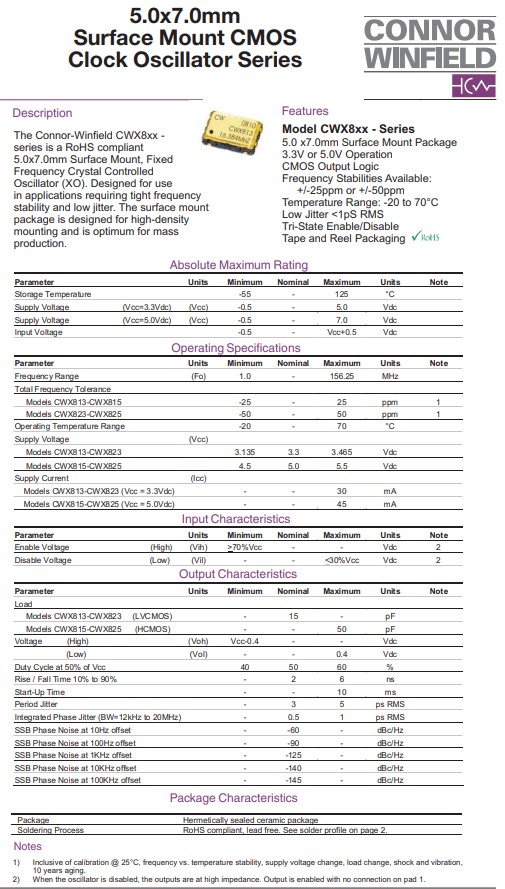

ConnorWinfield康納溫菲爾德晶振CWX8系列，CWX813是一款小體積晶振尺寸7.0x5.0mm表面貼裝，固定頻率晶體控制振蕩器(XO)。為使用而設計在要求嚴格頻率的應用中穩定性和低抖動，表面貼裝CMOS時鐘晶體振蕩器系列，封裝設計用于高密度安裝，是質量的最佳選擇生產。3.3V或5.0V工作電壓，CMOS輸出邏輯，可用的頻率穩定性: 低抖動< 1pS RMS 三態使能/禁用膠帶和卷軸包裝 +/-25ppm或+/-50ppm，工作溫度范圍:-20℃至+70℃。貼片石英晶振被廣泛用于通訊設備，無線網絡，北斗導航，藍牙模塊，汽車電子，GPS定位系統，導航儀，醫療設備，數碼電子，物聯網等應用。北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz

原廠代碼	康納溫菲爾德晶振	型號	頻率	工作溫度	包裝/封裝
CWX813-024.0M	ConnorWinfield晶振	CWX813	24MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.0M	ConnorWinfield晶振	CWX813	12MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-018.432M	ConnorWinfield晶振	CWX813	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-001.8432M	ConnorWinfield晶振	CWX813	1.8432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-007.3728M	ConnorWinfield晶振	CWX813	7.3728MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-010.0M	ConnorWinfield晶振	CWX813	10MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-025.0M	ConnorWinfield晶振	CWX813	25MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-027.0M	ConnorWinfield晶振	CWX813	27MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-033.0M	ConnorWinfield晶振	CWX813	33MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-040.0M	ConnorWinfield晶振	CWX813	40MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-060.0M	ConnorWinfield晶振	CWX813	60MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-004.0M	ConnorWinfield晶振	CWX813	4MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-016.0M	ConnorWinfield晶振	CWX813	16MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-080.0M	ConnorWinfield晶振	CWX813	80MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-064.0M	ConnorWinfield晶振	CWX813	64MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-100.0M	ConnorWinfield晶振	CWX813	100MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-044.736M	ConnorWinfield晶振	CWX813	44.736MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.288M	ConnorWinfield晶振	CWX813	12.288MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-019.44M	ConnorWinfield晶振	CWX813	19.44MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-024.576M	ConnorWinfield晶振	CWX813	24.576MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-030.0M	7050貼片晶振	CWX813	30MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.0M	ConnorWinfield晶振	CWX813	20MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.48M	ConnorWinfield晶振	CWX813	20.48MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-049.152M	ConnorWinfield晶振	CWX813	49.152MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-050.0M	ConnorWinfield晶振	CWX813	50MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-029.4912M	ConnorWinfield晶振	CWX813	29.4912MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-066.6666M	ConnorWinfield晶振	CWX813	66.6666MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-001.544M	ConnorWinfield晶振	CWX813	1.544MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-016.384M	ConnorWinfield晶振	CWX813	16.384MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-072.0M	ConnorWinfield晶振	CWX813	72MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-014.31818M	ConnorWinfield晶振	CWX813	14.31818MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-015.36M	ConnorWinfield晶振	CWX813	15.36MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-045.0M	ConnorWinfield晶振	CWX813	45MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-003.6864M	ConnorWinfield晶振	CWX813	3.6864MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-008.0M	ConnorWinfield晶振	CWX813	8MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-032.0M	ConnorWinfield晶振	CWX813	32MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-032.768M	ConnorWinfield晶振	CWX813	32.768MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-033.333M	ConnorWinfield晶振	CWX813	33.333MHz	-20°C ~ 70°C	4-SMD, No Lead

北斗導航專用晶振CWX813-024.576M/7050mm/±25ppm/3.3V/24.576MHz，Connor-Winfield公司是一家總部位于美國的私人電子產品制造商。1963年成立后，ConnorWinfield晶振主要專注于設計和制造石英計時電路和振蕩器，用于各種電子應用。在20世紀90年代，康納-溫菲爾德擴展到其他產品領域，同時繼續關注其核心計時根源。Connor-Winfield的頻率控制產品應用非常廣泛，包括電信、局域網和廣域網產品、計算機以及其他微處理器和電子設備。
