頻率：50MHZ
尺寸：3.2x2.5mm

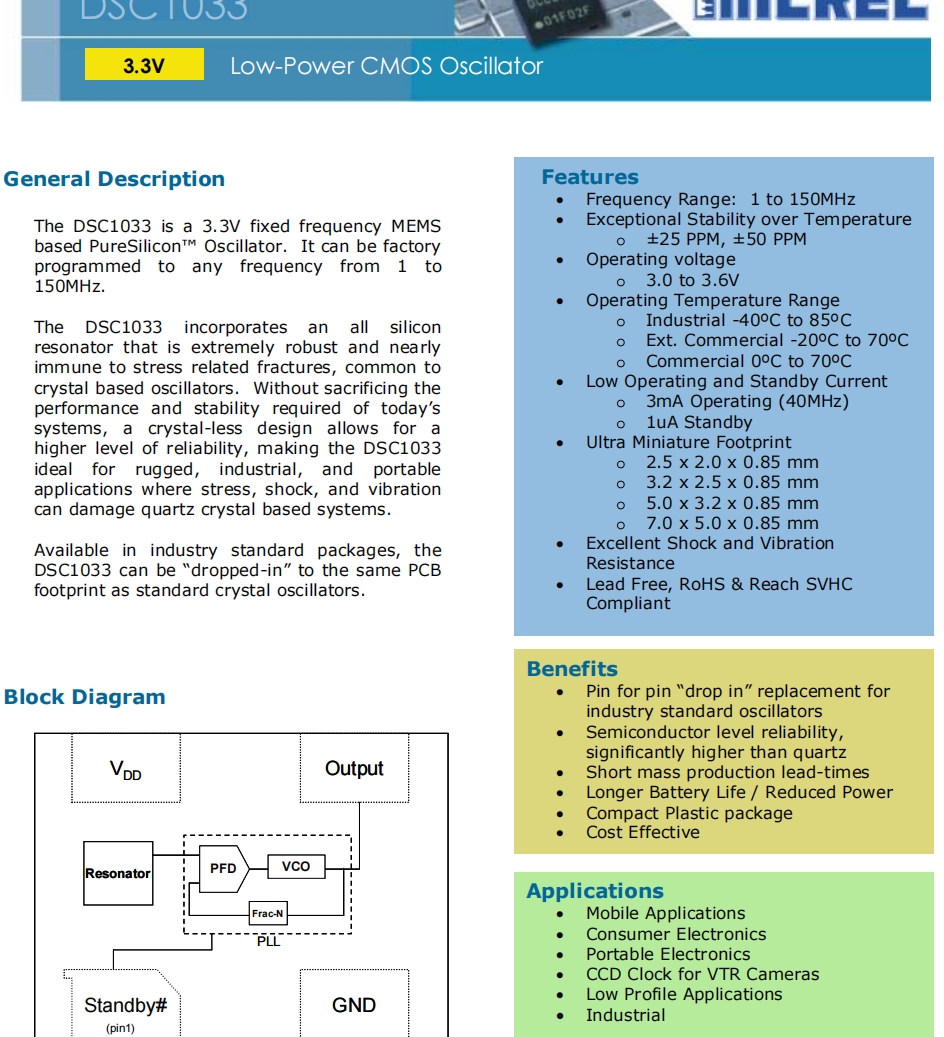

DSC1033是3.3V固定頻率MEMS基于PureSsilicon™振蕩器?？梢允枪S編程為從1到的任何頻率150MHz。DSC1033有源晶振包含全硅諧振器非常堅固，幾乎對應力相關骨折免疫，常見于基于晶體的振蕩器。在不犧牲當今所需的性能和穩定性系統，無晶體設計允許更高級別的可靠性，使DSC1033適用于堅固耐用、工業級和便攜式應力、沖擊和振動的應用會損壞基于石英晶體的系統。Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm.
DSC1033是3.3V固定頻率MEMS基于PureSsilicon™振蕩器?？梢允枪S編程為從1到的任何頻率150MHz。DSC1033有源晶振包含全硅諧振器非常堅固，幾乎對應力相關骨折免疫，常見于基于晶體的振蕩器。在不犧牲當今所需的性能和穩定性系統，無晶體設計允許更高級別的可靠性，使DSC1033適用于堅固耐用、工業級和便攜式應力、沖擊和振動的應用會損壞基于石英晶體的系統。Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm.
Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm 參數表
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |||||||||||||||||||||||||
| Frequency | f0 | Single Frequency |
|
50 |
|
MHz | |||||||||||||||||||||||||
|
Frequency Tolerance Option 1 Option 2 Option 3 |
Δf |
-40°C to +85°C -20°C to +70°C 0°C to +70°C |
±25,±50 ±25,±50 ±25,±50 |
ppm | |||||||||||||||||||||||||||
| Supply Current, no load | IDD |
CL =0p RL =∞ T=25° C |
1 to 40MHz 40 to 80MHz 80 to 125MHz 125 to 150MHz |
3 4 5 6 |
10 | mA | |||||||||||||||||||||||||
| Supply Current, standby | IDD | T=25°C | 1.0 | uA | |||||||||||||||||||||||||||
|
Output Logic Levels Output logic high Output logic low |
VOH VOL |
CL =15pF |
0.8*VDD - |
- 0.2*VDD |
Volts | ||||||||||||||||||||||||||
|
Output Transition time Rise Time Fall Time |
tR tF |
CL =15pF; T=25°C 20%/80%*VDD |
1.3 1.3 |
2 2 |
ns | ||||||||||||||||||||||||||
| Output Startup Time2 | tSU | T=25°C | 1.5 | 3 | ms | ||||||||||||||||||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | |||||||||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | |||||||||||||||||||||||||||
|
Input Logic Levels Input logic high Input logic low |
VIH VIL |
0.75*VDD - |
- 0.25* VDD |
Volts | |||||||||||||||||||||||||||
| Jitter, Cycle to Cycle | JCC | F = 100MHz3 | 95 | ps | |||||||||||||||||||||||||||

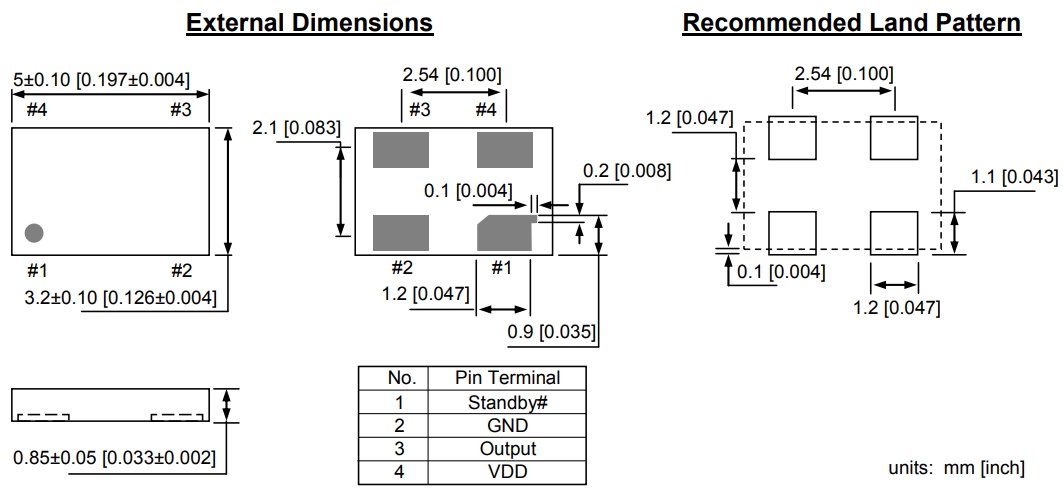

Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm 尺寸圖
Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm
有源晶體振蕩器產品特性：
頻率范圍：1至150MHz
卓越的溫度穩定性
±25PPM，±50PPM
工作電壓
3.0至3.6V
工作溫度范圍
工業-40ºC至85ºC
外部商用-20ºC至70ºC
商用0ºC至70ºC
低工作和備用電流
3mA工作（40MHz）
1uA待機
超小型占地面積
2.5 x 2.0 x 0.85毫米
3.2 x 2.5 x 0.85毫米
5.0 x 3.2 x 0.85毫米
7.0 x 5.0 x 0.85毫米
卓越的沖擊和振動
無鉛、RoHS和Reach SVHC
