可編程晶振就是可以滿足任何頻點的晶體振蕩器，經過頻率發生器的放大或縮小后實現各種不同的總線頻率。

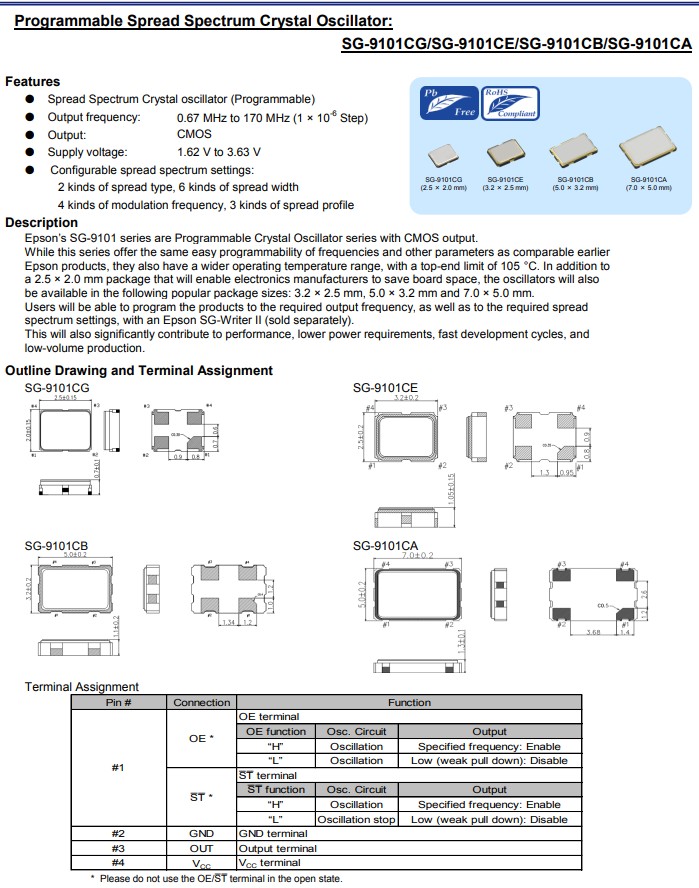

日本愛普生晶振SG-9101CA是具有CMOS輸出的可編程晶振系列，小體積尺寸7.0x5.0mm四腳貼片晶振，有源晶振，晶體振蕩器，電源電壓:1.62V至3.63V，頻率范圍:0.67MHz至170MHz，SG-9101系列石英晶體振蕩器還提供以下流行的封裝超小型晶振尺寸:2.5x2.0mm，3.2x2.5mm和5.0x3.2mm封裝使電子制造商能夠節省電路板空間。具有小體積輕薄型，低功耗，低抖動，高性能，高品質等特點，應用于鐘表、數碼產品、汽車電子、手機、對講機、數碼相機、MID平板電腦，光電技術等通訊設備及各種頻率控制設備。

SG-9101CA可編程晶振X1G005301001500可以滿足任何頻點的晶體振蕩器

貼片晶振	頻率	型號	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005301001100	66.666000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001200	40.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001300	40.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001400	16.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001500	20.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001600	48.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301001700	64.100000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301001800	16.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301001900	82.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301002000	50.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002100	30.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002200	66.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002300	50.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002400	66.660000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002500	40.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002600	33.333300MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002700	66.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301002800	32.768000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301002900	66.666700MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003000	32.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003100	25.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C

X1G005301003200	40.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003300	75.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003400	50.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003500	25.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003600	13.500000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003700	14.745600MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003800	44.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301003900	48.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004000	20.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004100	40.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004200	13.560000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004300	156.250000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301004400	66.666600MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004500	29.491200MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004600	19.660000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 105°C
X1G005301004700	12.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004800	50.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301004900	60.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301005000	2.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301005100	160.000000MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C
X1G005301005200	29.461200MHz	SG-9101CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630V	-40 to 85°C

SG-9101CA可編程晶振X1G005301001500可以滿足任何頻點的晶體振蕩器

可編程晶振，很多人依然陌生的一頭霧水，其實在各種精密的電子儀器上，可編程晶振已得到廣泛的應用了。在普及可編程晶振的時候，也有人對這款‘新型產品’有不少的知識盲區，例如可編程晶振無源和有源晶振都會燒錄嗎？可編程現在被普及且廣泛使用的只有有源晶振，因?yàn)榭删幊叹д窨啥ㄖ扑灾С址庋b標準也較多，從國際封裝QFN封裝到7050、5032、3225、2520甚至更小的2016，客戶都可以按需選擇，同理也支持1.8V、 2.5V、2.8V、3.0V、3.3V等多種工作電壓匹配。還有客戶會把可編程晶振和溫補晶振混淆，其實可編程晶振內部集成了溫度補償電路，本身也具備溫度自動補償功能。
