SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

返回列表 來源：*** 查看手機網址
掃一掃!SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振掃一掃!
 瀏覽：- 發布日期：2022-09-09 15:45:19【大 中 小】
分享到：

差分晶振是指能夠輸出差分信號的晶振,輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲,并產生一個更高性能的系統

愛普生晶振SG5032VAN是一款LVDS輸出差分晶體振蕩器，是EPSON/愛普生的一款額定頻率73.5MHz至700MHz的石英晶體振蕩器，小體積尺寸5.0x3.2mm，六腳貼片晶振，有源晶振，電源電壓2.5V，3.3V，具有小體積輕薄型，低抖動，低功耗，低相位，低損耗，低耗能，低功耗，低電源電壓，高穩定性等特點。該款有源晶體振蕩器，可以在B:-20℃至+70℃/ G:-40℃至+85℃的溫度內穩定工作，它廣泛應用于汽車多媒體、車身電子、遙控器、太空設備、GPS，防盜防災裝置、安放監控等。

SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

愛普生晶振 型號 頻率 尺寸 輸出波 電源電壓 工作溫度
X1G004261000100 SG5032VAN 100.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261000200 SG5032VAN 125.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261000500 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261000600 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261001100 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261001300 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261001400 SG5032VAN 155.520000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261002000 SG5032VAN 125.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261002100 SG5032VAN 125.006250MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261002300 SG5032VAN 100.000000MHz 5.00x3.20x1.20mm LVDS輸出晶振 2.250 to 3.630 V -40 to 85 °C
X1G004261002400 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261002500 SG5032VAN 400.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261002900 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261003100 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261003300 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261003400 SG5032VAN 312.500000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261004300 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004261006200 SG5032VAN 200.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004261006700 SG5032VAN 148.500000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C

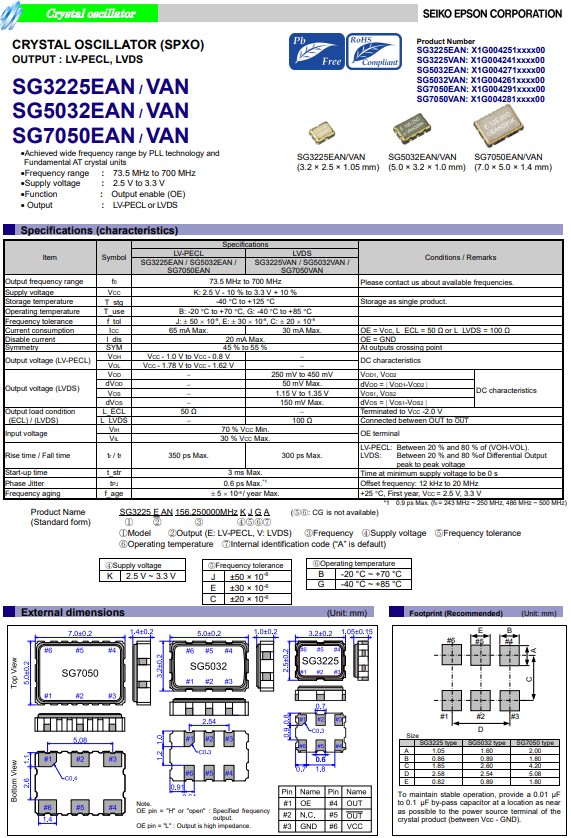

SG3225VAN，SG5032VAN,SG7050VAN

X1G004261006900 SG5032VAN 150.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004261007100 SG5032VAN 156.250000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004261010200 SG5032VAN 250.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261010700 SG5032VAN 153.600000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261011400 SG5032VAN 78.125000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261011900 SG5032VAN 120.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261012100 SG5032VAN 644.531250MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261012500 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261012600 SG5032VAN 133.333300MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261012800 SG5032VAN 250.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261012900 SG5032VAN 135.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261013100 SG5032VAN 322.265625MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261013300 SG5032VAN 230.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261013500 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261013600 SG5032VAN 644.531250MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261013800 SG5032VAN 148.351600MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004261014100 SG5032VAN 161.132812MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004261014300 SG5032VAN 625.000000MHz 5.00x3.20x1.20mm LVDS 2.250 to 3.630 V -40 to 85 °C
SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

差分晶振一般為六腳貼片，工作溫度范圍-40℃~+85℃，差分晶振的頻率相對都比較高，比如從50MHz起可以做到700MHz或者更低和更高頻率，且任意頻率精確到個位小數點后六位。電源電壓能夠做到2.5V-3.3V之間。例如：2.25V、2.5V 、3.0V、3.3V、3.6V 可任意選擇應用。常見的封裝尺寸有7050(7.0x5.0mm)、5032(5.0x3.2mm)、3225(3.2x2.5mm)，更小封裝可達到2520(2.5x2.0mm)，常用的輸出方式主要有LVPECL和LVDS兩種。

SG5032VAN差分貼片晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.
