NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

來源：*** 查看手機網址

掃一掃!

NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

掃一掃!

瀏覽：- 發布日期：2022-07-16 15:49:47【大中小】

分享到：

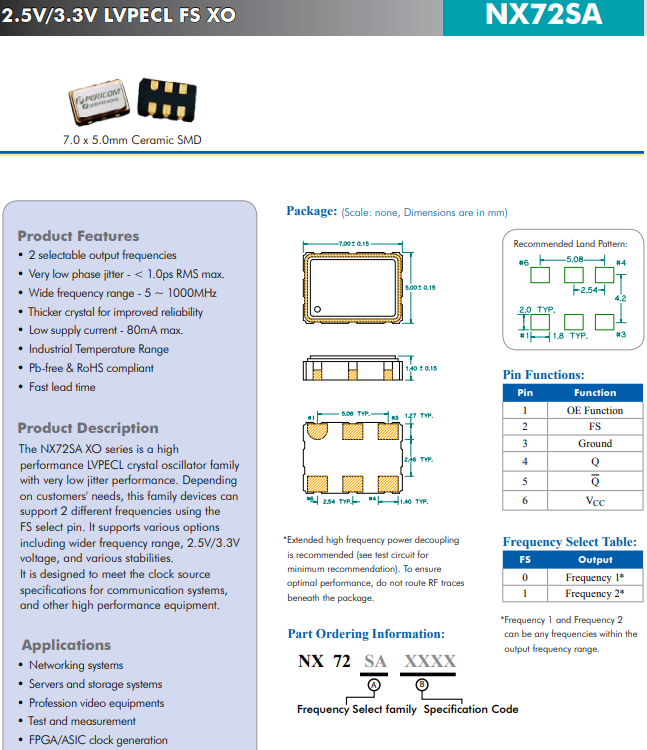

百利通亞陶晶振NX72SA XO系列是具有極低抖動性能的高性能LVPECL差分晶體振蕩器系列。根據客戶的需求，該系列器件可以使用FS選擇引腳支持2個不同的頻率。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。

特征：
2個可選輸出頻率
非常低相位噪聲晶振 -<1.0ps RMS 最大值。
寬頻率范圍 - 5~1000MHz
更厚的晶體以提高可靠性
低電源電流 - 最大80mA。
工業溫度范圍
無鉛且符合RoHS標準
交貨時間快
應用：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC時鐘生成

NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C
NX7021D0622.080000	Diodes Incorporated	SaRonix-eCera™ NX	622.08MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
NX7031D0644.531250	Diodes Incorporated	SaRonix-eCera™ NX	644.53125MHz	±25ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF7021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
WF9021B0622.080000	Diodes Incorporated	SaRonix-eCera™ WF	622.08MHz	±5ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
JX5011C0056.000000	Diodes Incorporated	SaRonix-eCera™ JX	56MHz	±50ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C

JT255CF0026.000000	Diodes Incorporated	SaRonix-eCera™ JT	26MHz	±500ppb	-30°C ~ 85°C
FRBST1061	Diodes Incorporated	SaRonix-eCera™ FR	61.44MHz	±50ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
JT2551T0039.000000	Diodes Incorporated	SaRonix-eCera™ JT	39MHz	±2.5ppm	-40°C ~ 85°C
KM3270004	Diodes Incorporated	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
FK2500021	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FN4000159	Diodes Incorporated	SaRonix-eCera™ FN	40MHz	±50ppm	-40°C ~ 85°C
FK0800003	Diodes Incorporated	SaRonix-eCera™ FK	8MHz	±50ppm	-20°C ~ 70°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
PRBST1122	Diodes Incorporated	SaRonix-eCera™ FR	122.88MHz	±50ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Incorporated	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
FK2500022	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK2500022	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 85°C
FK5000013	Diodes Incorporated	SaRonix-eCera™ FK	50MHz	±50ppm	-40°C ~ 85°C
FK5000013	Diodes Incorporated	SaRonix-eCera™ FK	50MHz	±50ppm	-40°C ~ 85°C
FD2500050	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-20°C ~ 70°C
FD2500050	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS2062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FK1200011	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-40°C ~ 85°C

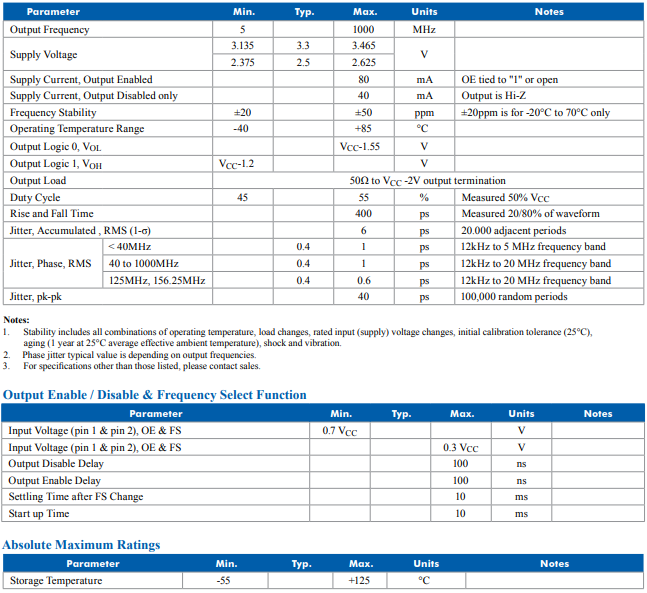

Product Parameters

ProductSeries	NX7
Family	XO
Output Logic	LVPECL
Supply Voltage (V)	3.3, 2.5
Freq Range (MHz)	5 to 1000
Jitter RMS (ps)	<1
PkgType	Ceramic Seam
Package Size (mm)	7.0 x 5.0 x 2.0
Pads	6

NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

產品參數：

產品系列 NX7
家庭 XO 晶體振蕩器
輸出邏輯 LVPECL
電源電壓 (V) 3.3V, 2.5V
頻率范圍 (MHz) 5到1000
抖動均方根 (ps) <1
包裝類型陶瓷縫
包裝尺寸 7.0x5.0x2.0mm
墊 6腳

FK1200011	Diodes Incorporated	SaRonix-eCera™ FK	12MHz	±50ppm	-40°C ~ 85°C
FNSAS2075	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	75MHz	±50ppm	-20°C ~ 70°C
FD6250012	Diodes Incorporated	SaRonix-eCera™ FD	62.5MHz	±50ppm	-20°C ~ 70°C
KN3270028	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270032	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270031	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270042	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270022	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270036	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270032	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KN3270033	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270034	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3211C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3211E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3213B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3213C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3213G0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3211H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KD3270043	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270026	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270034	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270012	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270040	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-20°C ~ 70°C

NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

NX71SA	CMOS	3.32.5	5 到 250	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm CMOS 2 頻可編程 XO
NX71SB	CMOS	3.32.5	5 到 250	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm CMOS 四頻可編程XO
NX72SA	LVPECL差分晶振	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVPECL 2頻可編程XO
NX72SB	LVPECL	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVPECL 4頻可編程XO
NX73SA	LVDS	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVDS 2 頻可編程 XO
NX73SB	LVDS	3.32.5	5 到 1000	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm LVDS 4 頻可編程 XO
NX74SA	HCSL	3.32.5	5 至 212.5	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm HCSL 2頻可編程XO
NX74SB	HCSL	3.32.5	5 至 212.5	<1	7.0 x 5.0 x 2.0	6	7.0mmx5.0mm HCSL 四頻可編程XO

KK3270042	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270044	Diodes Incorporated	SaRonix-eCera™ KK	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270027	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270033	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270030	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270039	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270023	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
FNC500129	Diodes Incorporated	SaRonix-eCera™ FN	125MHz	±50ppm	-20°C ~ 70°C
KN3270036	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-40°C ~ 85°C
KN3270029	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2511C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX2511E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX2511H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KX2513C0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX2513E0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C
KX2513H0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 85°C
KX2513B0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KD3270038	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±25ppm	-20°C ~ 70°C
KN3270025	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±25ppm	-20°C ~ 70°C
KX2513A0032.768000	Diodes Incorporated	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KD3270041	Diodes Incorporated	SaRonix-eCera™ KD	32.768kHz	±20ppm	-20°C ~ 70°C
KN3270024	Diodes Incorporated	SaRonix-eCera™ KN	32.768kHz	±20ppm	-20°C ~ 70°C

NX72SA系列具有超低抖動性能,編碼NX72F6208Z,差分晶體振蕩器,ECERA小體積晶振

我們提供一流的晶體(Xtal)和晶體振蕩器(XO)，針對您的設計要求進行了優化。
我們廣泛的晶體和貼片振蕩器提供：
輸出頻率范圍從 kHz到GHz
完整的輸出組合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的XO產品組合，包括標準XO、VCXO、TCXO到超低抖動和高溫XO
從1.0V到3.3V的多個電壓范圍（甚至是傳統的5V）
大量 SMT 封裝選項組合，可滿足您的封裝要求
