頻率：155.520000 MHz
尺寸：3.2x2.5x0.9mm

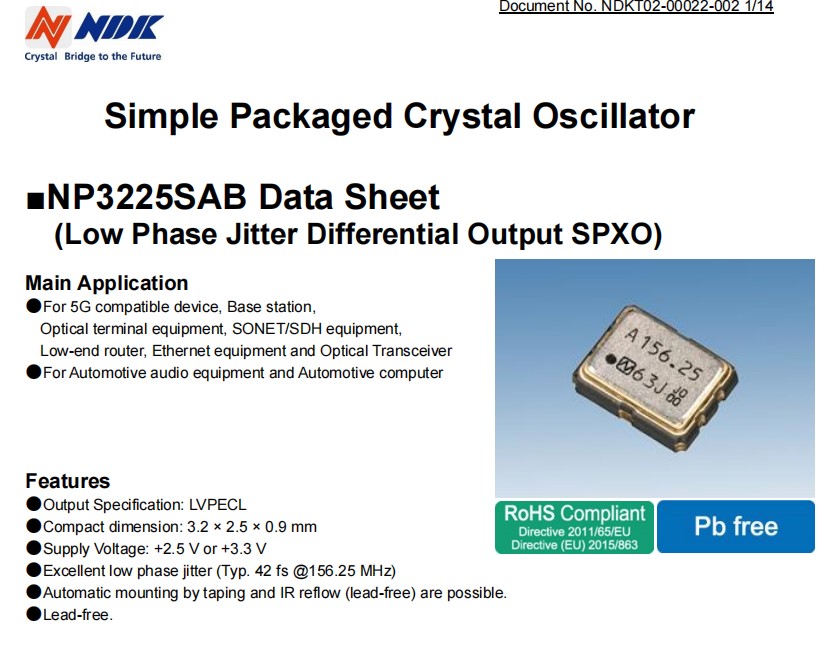

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振，日本電波株式會社，NDK晶振，型號：NP3225SAB，編碼為：NP3225SAB-155.520000MHz-NSC5186A，頻率為：155.520000 MHz，小體積晶振尺寸：3.2x2.5x0.9mm，六腳貼片晶振，LV-PECL輸出差分晶振，石英晶體振蕩器，有源晶振，石英晶振，電源電壓：+2.5 V，優秀的低相位抖動(Typ。42 fs @156.25 MHz)，自動安裝通過膠帶和紅外回流（無鉛）是可能的。是無鉛的。具有超小型，輕薄型，超低抖動，低功耗，低電源電壓，低相位噪聲，低耗能，低損耗，低電平等特點。NP3225SAB貼片晶振適用于：6G兼容設備，基站、光終端設備、聲波/SDH設備，低端路由器，以太網設備和光收發器，汽車音頻設備和汽車計算機，無線網絡、藍牙模塊，機頂盒，光端機，藍牙模塊，物聯網等。

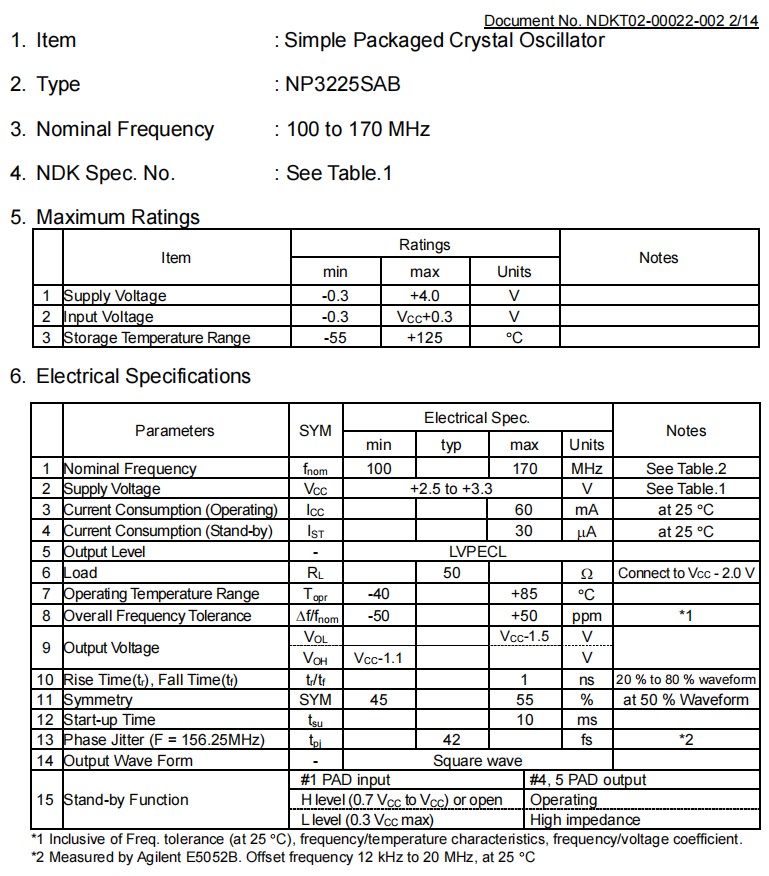

NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振,參數表
Item
Symbol
NP3225SAB
Unit
Nominal frequency range
fnom
155.520000
MHz
Package size (L×W×H)
-
3.2×2.5×0.9
mm
Supply voltage
Vcc
+2.5 to +3.3
V
Current consumption
ICC
Max. 60
mA
Stand-by current
IST
Max. 30
μA
Output specification
-
LVPECL
-
Load
RL
50
Ω
Storage temperature range
Tstr
-55 to +125
℃
Operating temperature range
Topr
-40 to +85
℃
Overall frequency tolerance
Δf/fnom
Max. ±50
ppm
Output voltage
VOL
Max. VCC-1.5
V
Output voltage
VOH
Min. VCC-1.1
V
Rise (tr), fall (tf) time
tr/tf
Max. 1
ns
Symmetry
SYM
45 to 55
%
Start-up time
tsu
Max. 10
ms
Phase jitter (F = 156.25MHz)
tpj
Typ. 42
fs
Specification number
-
NSC5186A (+2.5V)
NSC5186B (+3.3V)
-
NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振,尺寸圖
NDK6G基站晶振,NP3225SAB-155.520000MHz-NSC5186A,汽車音頻設備晶振
差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲，并產生一個更高性能的系統。差分晶體振蕩器一般為六腳貼片，常用的輸出類型分為：LVDS，LV-PECL，HCSL具有低電平，低抖動，低功耗，低相位噪聲，低電壓等特性。
