WXB00003GIKD‐PF,ACT32.768K晶體,6G路由器晶振,WX20B無源諧振器，尺寸為2.0*1.2mm,頻率為32.768KHZ，艾西迪晶振，ACT Crystal，ACT無源晶體，英國艾西迪晶振，石英晶體諧振器，音叉晶體，水晶振動子，2012mm無源晶振，SMD晶振，32.768K晶振，無源時鐘晶體，32.768KHZ貼片晶振，時鐘專用晶體，兩腳無源晶體，無源諧振器，ACT貼片晶振，藍牙音響晶振，智能手機應用晶振，無線設備貼片晶振，移動應用無源晶振，網絡設備專用晶振，高質量貼片晶振，高性能晶振。
SMD晶振產品具有高質量高性能的特點，非常適合用于時鐘應用，也可廣泛用于智能手機，藍牙音響，無線設備，網絡產品等領域.WXB00003GIKD‐PF,ACT32.768K晶體,6G路由器晶振,WX20B無源諧振器.

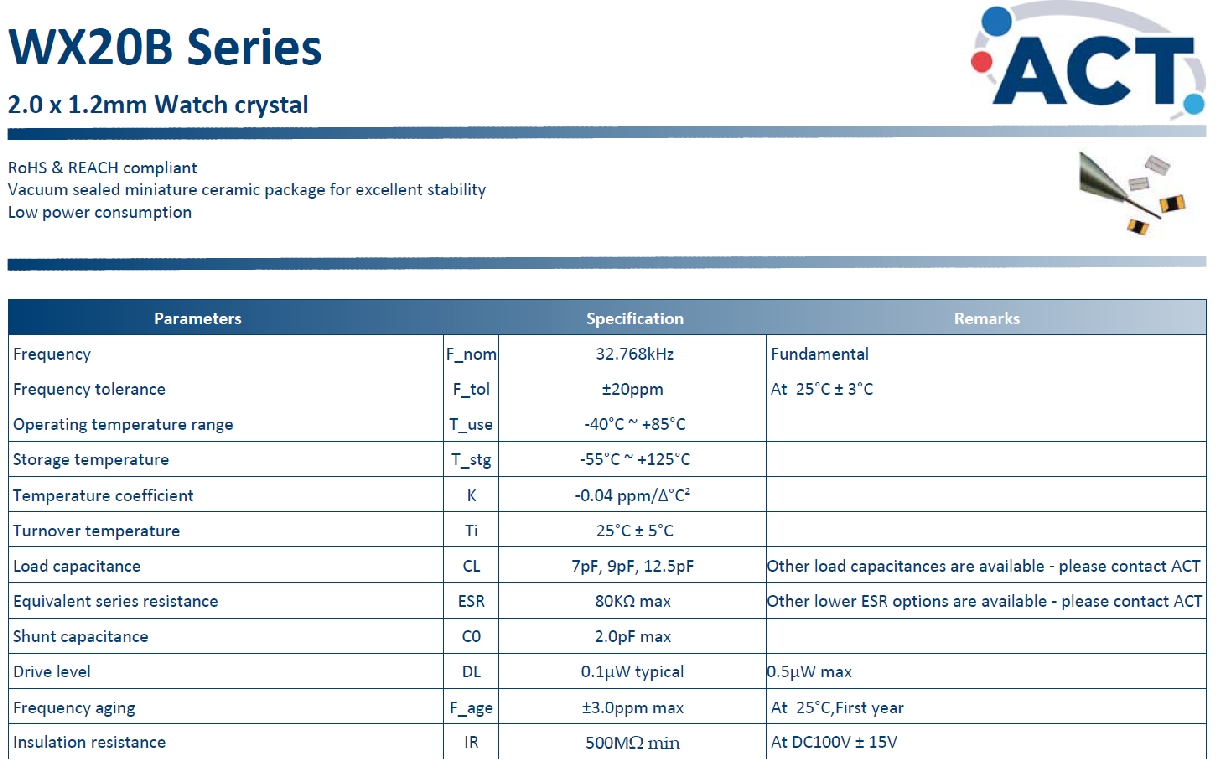

WXB00003GIKD‐PF,ACT32.768K晶體,6G路由器晶振,WX20B無源諧振器 參數表
|
|
|
|
||
|
Frequency |
F_nom |
32.768kHz |
Fundamental |
|
|
Frequency tolerance |
F_tol |
±20ppm |
At25°C±3°C |
|
|
Operating temperaturerange |
T_use |
‐40°C ~+85°C |
||
|
Storage temperature |
T_stg |
‐55°C ~+125°C |
||
|
Temperature coefficient |
K |
‐0.04ppm/Δ°C² |
||
|
Turnover temperature |
Ti |
25°C±5°C |
||
|
Load capacitance |
CL |
7pF, 9pF,12.5pF |
Otherload capacitances areavailable ‐please contactACT |
|
|
Equivalent seriesresistance |
ESR |
80K?max |
OtherlowerESR options are available‐pleasecontact ACT |
|
|
Shunt capacitance |
C0 |
2.0pFmax |
||
|
Drivelevel |
DL |
0.1μWtypical |
0.5μWmax |
|
|
Frequency aging |
F_age |
±3.0ppmmax |
At25°C,Firstyear |
|
|
Insulationresistance |
IR |
500MΩmin |
AtDC100V ±15V |
|
Parameters
Specification
Remarks

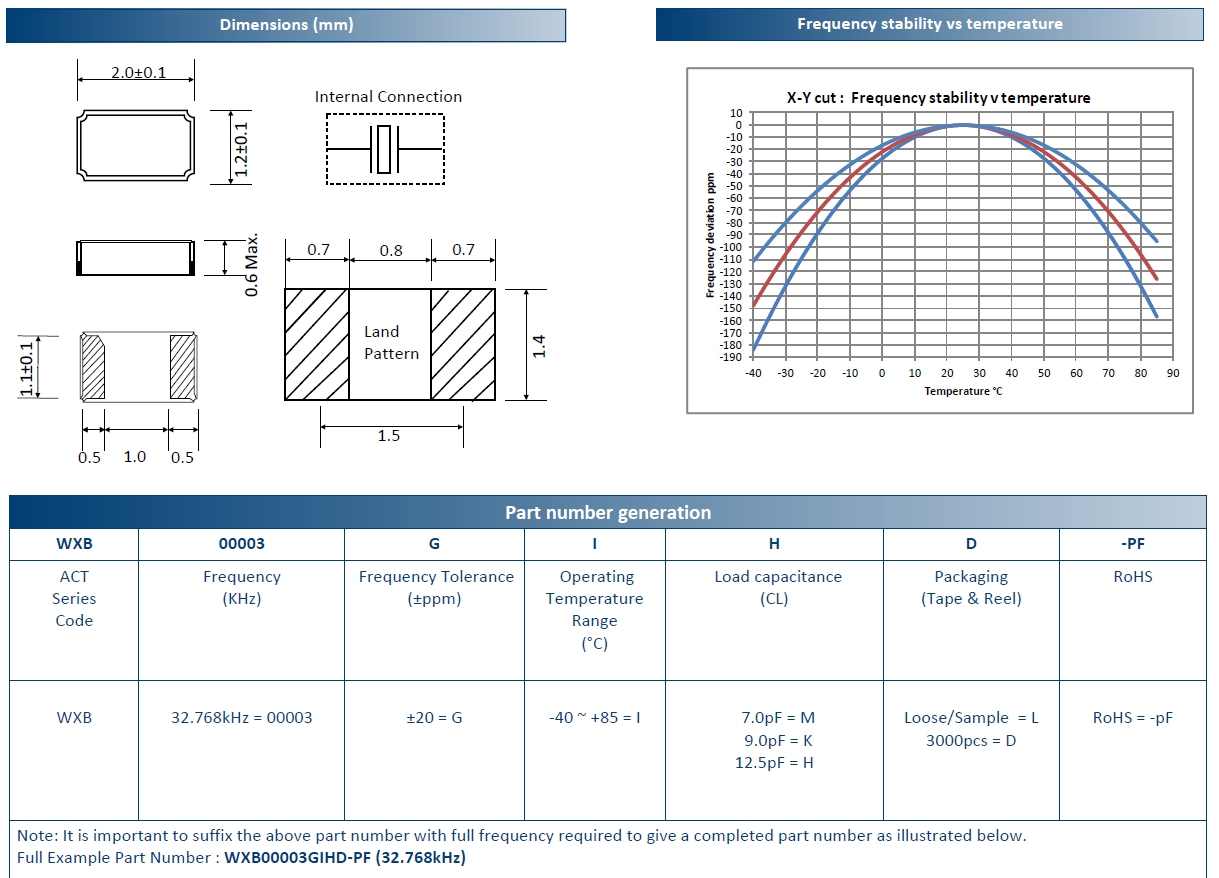

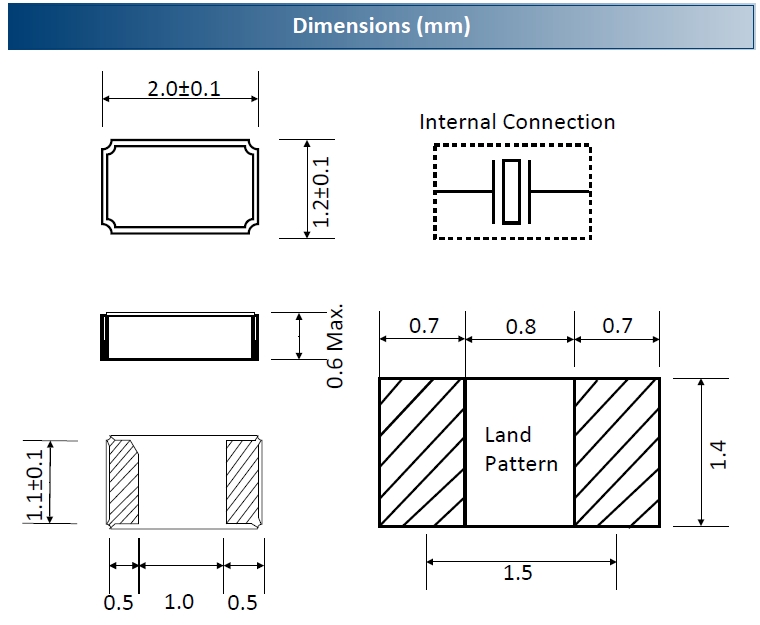

WXB00003GIKD‐PF,ACT32.768K晶體,6G路由器晶振,WX20B無源諧振器 尺寸圖
32.768K特點：
尺寸:2.0*1.2mm
符合RoHS和REACH標準
真空密封微型陶瓷封裝，穩定性極佳
低功耗
更多相關英國艾西迪ACT Crystal型號，請聯系我們！
