歡迎訪問康比電子有限公司

首頁 Abracon晶振

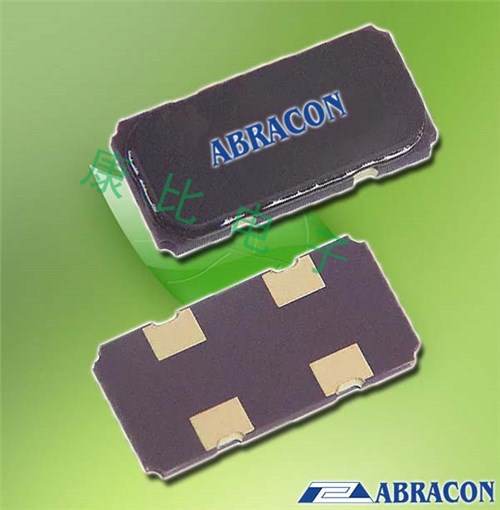

Abracon晶振,ABC2-18.432MHZ-2-T,ABC2無源晶振,通訊晶振

產品簡介

Abracon晶振,ABC2-18.432MHZ-2-T,ABC2無源晶振,通訊晶振，美國進口晶振，Abracon艾博康晶振，型號：ABC2系列，編碼為：ABC2-18.432MHZ-2-T，頻率：18.432MHz，工作溫度范圍：-10℃至+60℃，頻率穩定性：±20ppm，負載電容：18pF，小體積晶振尺寸：11.8mmx5.5mmx2mm陶瓷SMD封裝，四腳貼片晶振，石英晶振，無源晶振，SMD諧振器，石英晶體諧振器。具有超小型，輕薄型晶振，高品質晶振，高性能晶振，高可靠等特點。應用于：通信設備晶振，測量設備晶振，商業和工業應用等。

產品詳情

Abracon晶振,ABC2-18.432MHZ-2-T,ABC2無源晶振,通訊晶振，產品特點：

•小型SMD中的低頻
•1.9mm高，非常適合高密度電路板
•陶瓷包裝提供卓越的環境和耐熱性
•工業應用的擴展溫度-40°C至+85°C
•適用于符合RoHS的回流焊

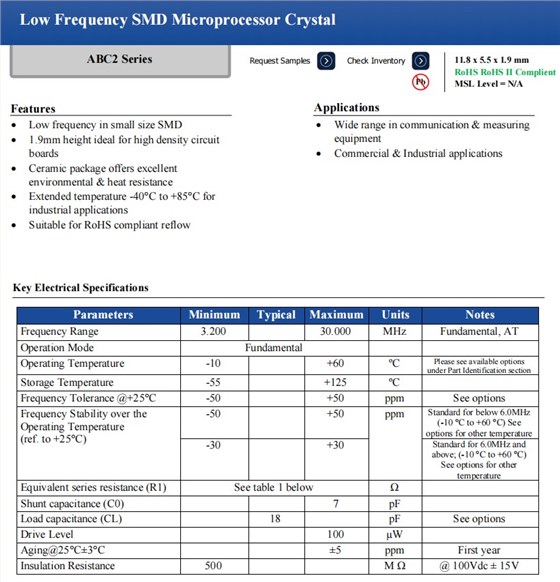

Abracon晶振,ABC2-18.432MHZ-2-T,ABC2無源晶振,通訊晶振,參數表

Parameters

Minimum

Typical

Maximum

Units

Notes

Frequency Range

18.432

MHz

Fundamental, AT

Operation Mode

Fundamental

Operating Temperature

- 10

+60

ºC

Please see available options
under Part Identification section

Storage Temperature

-55

+125

ºC

Frequency Tolerance @+25°C

-50

+50

ppm

See options

Frequency Stability over the
Operating Temperature
(ref. to +25°C)

-50

+50

ppm

Standard for below 6.0MHz
(- 10 °C to +60 °C) See
options for other temperature

-30

+30

Standard for 6.0MHz and
above; (- 10 °C to +60 °C)
See options for other
temperature

Equivalent series resistance (R1)

See table 1 below

Shunt capacitance (C0)

Load capacitance (CL)

See options

Drive Level

100

µW

Aging@25°C±3°C

±5

ppm

First year

Insulation Resistance

500

MΩ

@ 100Vdc ± 15V

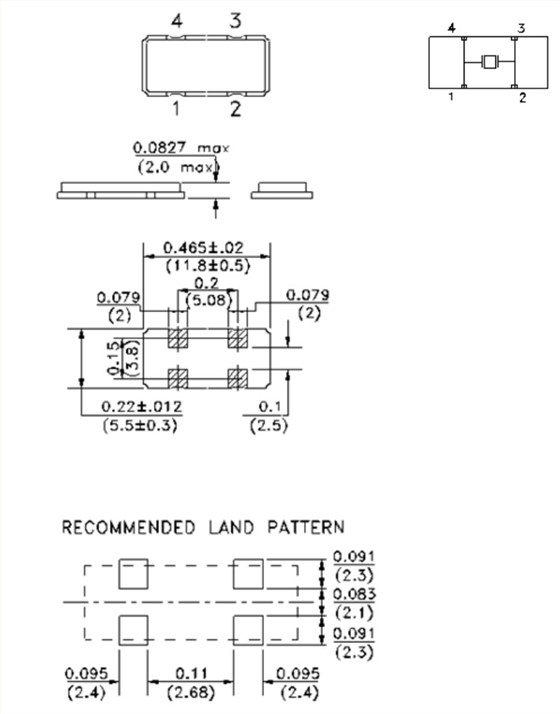

Abracon晶振,ABC2-18.432MHZ-2-T,ABC2無源晶振,通訊晶振,尺寸圖

產品編碼	貼片晶振	型號	頻率	長度	寬度	高度
ABC2-10.000MHZ-4-T	Abracon晶振	ABC2	10 MHz	11.8mm	5.5mm	2mm
ABC2-10.000MHZ-D4Y-T	Abracon晶振	ABC2	10 MHz	11.8mm	5.5mm	2mm
ABC2-11.0592MHZ-4-T	Abracon晶振	ABC2	11.0592 MHz	11.8mm	5.5mm	2mm
ABC2-11.2896MHZ-4-T	Abracon晶振	ABC2	11.2896 MHz	11.8mm	5.5mm	2mm
ABC2-12.000MHZ-4-T	Abracon晶振	ABC2	12 MHz	11.8mm	5.5mm	2mm
ABC2-12.288MHZ-4-T	Abracon晶振	ABC2	12.288 MHz	11.8mm	5.5mm	2mm
ABC2-14.31818MHZ-4-T	Abracon晶振	ABC2	14.31818 MHz	11.8mm	5.5mm	2mm
ABC2-14.7456MHZ-4-T	Abracon晶振	ABC2	14.7456 MHz	11.8mm	5.5mm	2mm
ABC2-14.7456MHZ-D4Y-T	Abracon晶振	ABC2	14.7456 MHz	11.8mm	5.5mm	2mm
ABC2-15.000MHZ-4-T	Abracon晶振	ABC2	15 MHz	11.8mm	5.5mm	2mm
ABC2-15.360MHZ-4-T	Abracon晶振	ABC2	15.36 MHz	11.8mm	5.5mm	2mm
ABC2-16.000MHZ-4-T	Abracon晶振	ABC2	16 MHz	11.8mm	5.5mm	2mm
ABC2-16.666MHZ-4-T	Abracon晶振	ABC2	16.666 MHz	11.8mm	5.5mm	2mm
ABC2-18.432MHZ-4-T	Abracon晶振	ABC2	18.432 MHz	11.8mm	5.5mm	2mm
ABC2-19.440MHZ-4-T	Abracon晶振	ABC2	19.44 MHz	11.8mm	5.5mm	2mm
ABC2-20.000MHZ-4-T	Abracon晶振	ABC2	20 MHz	11.8mm	5.5mm	2mm
ABC2-20.480MHZ-4-T	Abracon晶振	ABC2	20.48 MHz	11.8mm	5.5mm	2mm
ABC2-20.480MHZ-BY-T	艾博康晶振	ABC2	20.48 MHz	11.8mm	5.5mm	2mm
ABC2-22.1184MHZ-4-T	Abracon晶振	ABC2	22.1184 MHz	11.8mm	5.5mm	2mm
ABC2-24.000MHZ-4-T	Abracon晶振	ABC2	24 MHz	11.8mm	5.5mm	2mm
ABC2-24.576MHZ-4-T	Abracon晶振	ABC2	24.576 MHz	11.8mm	5.5mm	2mm
ABC2-25.000MHZ-4-T	Abracon晶振	ABC2	25 MHz	11.8mm	5.5mm	2mm
ABC2-3.579545MHZ-4-T	Abracon晶振	ABC2	3.579545 MHz	11.8mm	5.5mm	2mm
ABC2-3.6864MHZ-4-T	Abracon晶振	ABC2	3.6864 MHz	11.8mm	5.5mm	2mm
ABC2-4.000MHZ-4-T	Abracon晶振	ABC2	4 MHz	11.8mm	5.5mm	2mm
ABC2-4.000MHZ-D-T	Abracon晶振	ABC2	4 MHz	11.8mm	5.5mm	2mm
ABC2-4.096MHZ-4-T	Abracon晶振	ABC2	4.096 MHz	11.8mm	5.5mm	2mm
ABC2-4.9152MHZ-4-T	Abracon晶振	ABC2	4.9152 MHz	11.8mm	5.5mm	2mm
ABC2-5.000MHZ-4-T	Abracon晶振	ABC2	5 MHz	11.8mm	5.5mm	2mm
ABC2-6.000MHZ-4-T	Abracon晶振	ABC2	6 MHz	11.8mm	5.5mm	2mm
ABC2-6.144MHZ-4-T	Abracon晶振	ABC2	6.144 MHz	11.8mm	5.5mm	2mm
ABC2-7.3728MHZ-4-T	Abracon晶振	ABC2	7.3728 MHz	11.8mm	5.5mm	2mm
ABC2-7.680MHZ-4-T	Abracon晶振	ABC2	7.68 MHz	11.8mm	5.5mm	2mm
ABC2-8.000MHZ-4-T	Abracon晶振	ABC2	8 MHz	11.8mm	5.5mm	2mm
ABC2-9.8304MHZ-4-T	Abracon晶振	ABC2	9.8304 MHz	11.8mm	5.5mm	2mm
