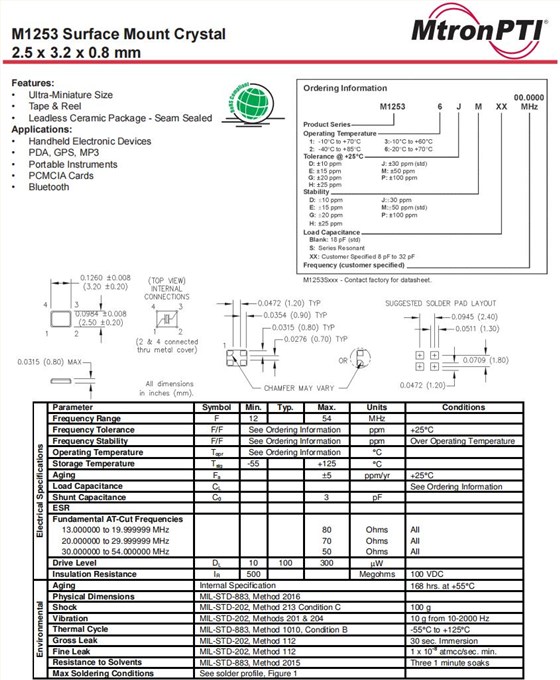

M12531JM12 12.000000,12MHz,3225mm,MtronPTI藍牙應用晶振,參數表

Parameter	Symbol	Min.		Typ.	Max.		Units	Conditions
Frequency Range	F				12		MHz
Frequency Tolerance	F/F	See Ordering Information					ppm	+25℃
Frequency Stability	F/F	See Ordering Information					ppm	Over Operating Temperature
Operating Temperature	Topr	See Ordering Information					℃
Storage Temperature	Tstg	-55			+125		℃
Aging	Fa				±5		ppm/yr	+25℃
Load Capacitance	CL							See Ordering Information
Shunt Capacitance	C0				3		pF
ESR
Fundamental AT-Cut Frequencies 13.000000 to 19.999999 MHz 20.000000 to 29.999999 MHz 30.000000 to 54.000000 MHz					80 70 50		Ohms Ohms Ohms	All All All
Drive Level	DL	10		100	300		μW
Insulation Resistance	IR	500					Megohms	100 VDC
Aging	Internal Specification							168 hrs. at +55℃
Physical Dimensions	MIL-STD-883, Method 2016
Shock	MIL-STD-202, Method 213 Condition C							100 g
Vibration	MIL-STD-202, Methods 201 & 204							10 g from 10-2000 Hz
Thermal Cycle	MIL-STD-883, Method 1010, Condition B							-55℃to +125℃
Gross Leak	MIL-STD-202, Method 112							30 sec. Immersion
Fine Leak	MIL-STD-202, Method 112							1 x 10-8atmcc/sec. min.
Resistance to Solvents	MIL-STD-883, Method 2015							Three 1 minute soaks
Max Soldering Conditions	See solder profile, Figure 1

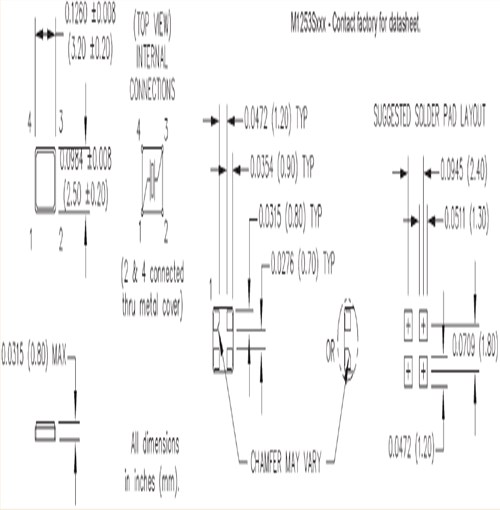

M12531JM12 12.000000,12MHz,3225mm,MtronPTI藍牙應用晶振,尺寸圖

進口晶振	型號	頻率	包裝	頻率穩定性	頻率容差
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531DD20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531JJ12 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12531JM12 12.000000	M1253	12MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM12 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM20 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531MM16 30.000000	M1253	30MHz	2.5 x 3.2 mm	±50 ppm	±50 ppm
M12532DE09 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M12532DG 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG12 19.200000	M1253	19.2MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG13 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG15 20.000000	M1253	20MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 25.000000	M1253	15.36MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG22 30.000000	M1253	30MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532GG 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GG 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GJ 24.000000	M1253	24MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532HH 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 16.000000	M1253	16MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 27.000000	M1253	27MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
