A072聲表面濾波器,A072-164M1,安克儀器設備晶振,164MHZ,7050mm,十腳無源濾波器,俄國進口晶振,AEK石英晶振,SAW濾波器,SMD聲表面諧振器,石英貼片晶振,無源石英晶振,164MHZ晶體,石英晶振,7050mm濾波器,尺寸7.0×5.0mm,頻率164MHZ,高品質晶振,低耗能晶振,低成本晶振,雷達晶振,汽車應用晶振,醫療設備晶振,電視機晶振,音頻晶振.
A072聲表面濾波器,A072-164M1,安克儀器設備晶振,164MHZ,7050mm特點:
1.濾波器輸入（輸出）處的直流電壓不應超過10V。
2.建議在設備和發電機之間包括耦合電容器（負載）。
3.SAW濾波器對靜電敏感，因此應采取相應的預防措施與他們一起工作時拍攝的。

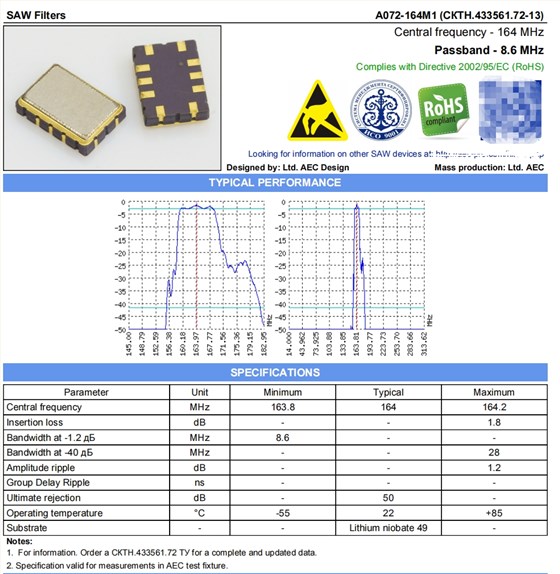

A072聲表面濾波器,A072-164M1,安克儀器設備晶振,164MHZ,7050mm 參數表
| SPECIFICATIONS | ||||||||||||||||||||||||
| Parameter | Unit | Minimum | Typical | Maximum | ||||||||||||||||||||
| Central frequency | MHz | 163.8 | 164 | 164.2 | ||||||||||||||||||||
| Insertion loss | dB | - | - | 1.8 | ||||||||||||||||||||
| Bandwidth at -1.2 дБ | MHz | 8.6 | - | - | ||||||||||||||||||||
| Bandwidth at -40 дБ | MHz | - | - | 28 | ||||||||||||||||||||
| Amplitude ripple | dB | - | - | 1.2 | ||||||||||||||||||||
| Group Delay Ripple | ns | - | - | - | ||||||||||||||||||||
| Ultimate rejection | dB | - | 50 | - | ||||||||||||||||||||
| Operating temperature | °C | -55 | 22 | +85 | ||||||||||||||||||||
| Substrate | - | - | Lithium niobate 49 | - | ||||||||||||||||||||

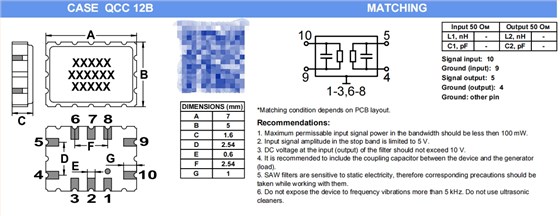

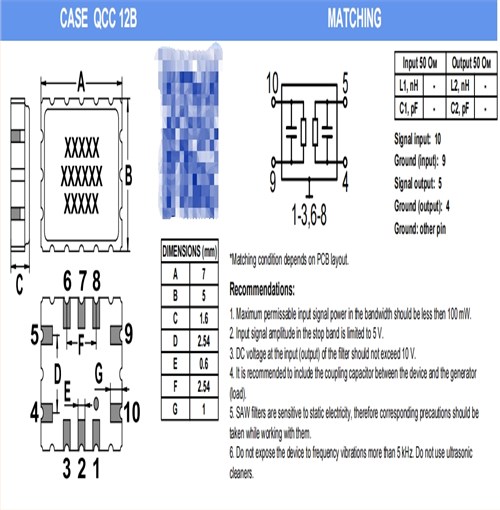

A072聲表面濾波器,A072-164M1,安克儀器設備晶振,164MHZ,7050mm 尺寸圖
