FCD-Tech智能穿戴晶振,F1612A,F1612A‐20‐20‐D‐30‐F‐24.000MHz,1612mm,荷蘭FCD-Tech晶振,進口無源晶振,石英貼片晶振,1612mm超小型晶體,24MHZ諧振器,SMD晶振,石英水晶振子,無源晶振,尺寸1.6x1.2mm,頻率24MHZ,負載30pF,工作溫度‐20°C~+70°C,低老化晶振,耐熱性晶振,數字音頻晶振,智能穿戴晶振,移動電話晶振.
FCD-Tech智能穿戴晶振,F1612A,F1612A‐20‐20‐D‐30‐F‐24.000MHz,1612mm特點:
超小型4焊盤SMD晶振封裝
非常低的老化
優異的耐熱性和抗震性
頻率范圍24MHz-60MHz（基本模式）
初始穩定性和溫度公差選項

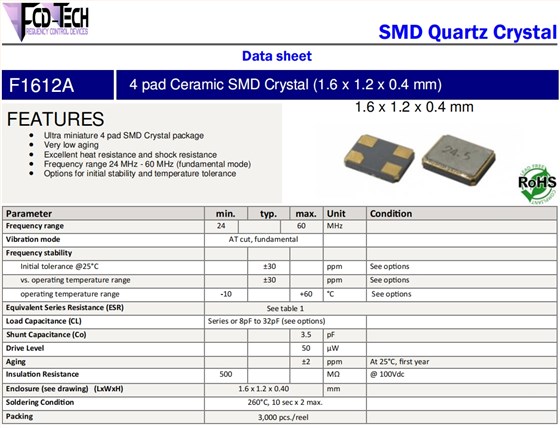

FCD-Tech智能穿戴晶振,F1612A,F1612A‐20‐20‐D‐30‐F‐24.000MHz,1612mm 參數表
| Parameter | min. | typ. | max. | Unit | Condition | ||||||||||
| Frequency range | 24 |
|
MHz | ||||||||||||
| Vibration mode | AT cut, fundamental | ||||||||||||||
| Frequency stability | |||||||||||||||
| Initial tolerance @25°C | ±30 | ppm | See options | ||||||||||||
| vs. operating temperature range | ±30 | ppm | See options | ||||||||||||
| operating temperature range | ‐10 | +60 | °C | See options | |||||||||||

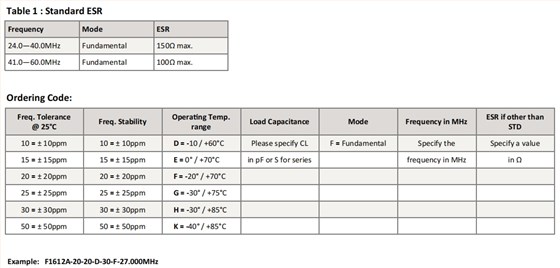

| Equivalent Series Resistance (ESR) | See table 1 | ||||||||||||||
| Load Capacitance (CL) | Series or 8pF to 32pF (see options) | ||||||||||||||
| Shunt Capacitance (Co) | 3.5 | pF | |||||||||||||
| Drive Level | 50 | µW | |||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | ||||||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc | ||||||||||||

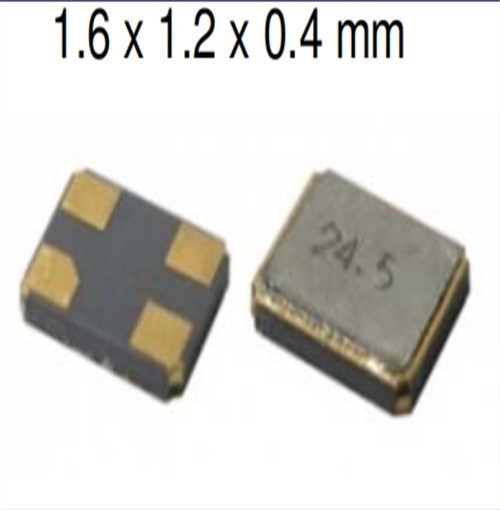

| Enclosure (see drawing)(LxWxH) | 1.6 x 1.2 x 0.40 | mm | |||||||||||||
| Soldering Condition | 260°C, 10 sec x 2 max. | ||||||||||||||
| Packing | 3,000 pcs./reel | ||||||||||||||

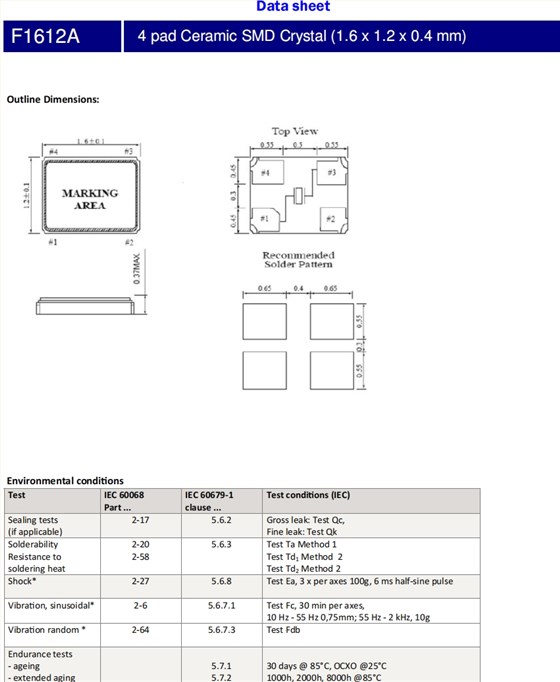

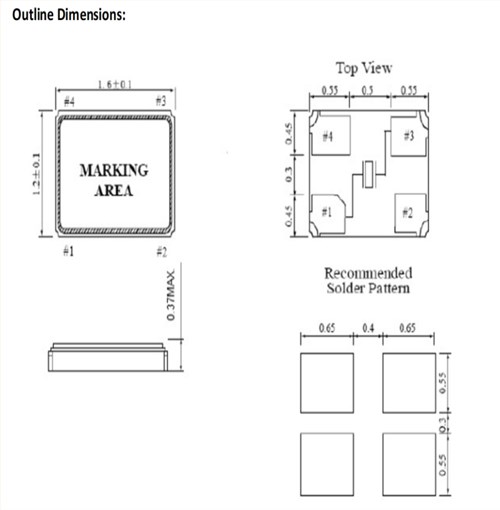

FCD-Tech智能穿戴晶振,F1612A,F1612A‐20‐20‐D‐30‐F‐24.000MHz,1612mm 尺寸圖
