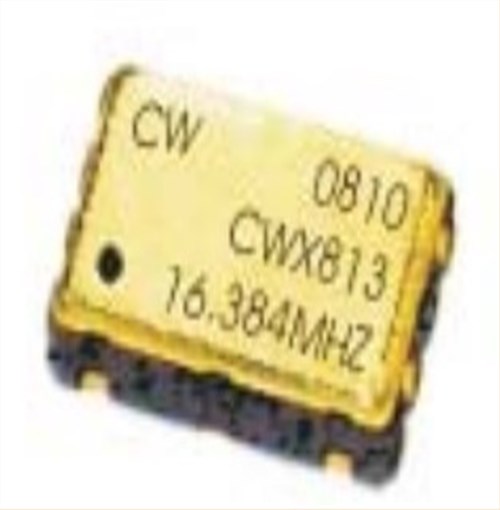

CWX813-020.48M,20.48MHz,7050mm,ConnorWinfield時鐘振蕩器,導航晶振

產品簡介

CWX813-020.48M,20.48MHz,7050mm,ConnorWinfield時鐘振蕩器,導航晶振，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：CWX8xx系列，編碼為：CWX813-020.48M，頻率為：20.48MHz，工作電壓3.3V，，CMOS輸出邏輯，工作溫度范圍:-20℃至+70℃。是一個符合RoHS標準尺寸的5.0x7.0mm表面安裝，四腳貼片晶振，有源晶振，固定頻率晶體控制振蕩器（XO）。設計用于需要緊密的頻率穩定性和低抖動的應用程序。表面安裝包是設計為高密度安裝，是最佳的大規模生產。被廣泛用于：通訊設備晶振，無線網絡晶振，導航晶振，藍牙模塊晶振，GPS定位系統，導航儀，物聯網等應用。

產品詳情

CWX813-020.48M,20.48MHz,7050mm,ConnorWinfield時鐘振蕩器,導航晶振，產品特點:

CWX8xx型-系列，5.0x7.0mm表面安裝封裝

3.3V或5.0V操作，CMOS輸出邏輯

可用頻率穩定性：+/-25ppm 或 +/-50ppm

溫度范圍：-20至70°C貼片晶振

低抖動<1pS RMS，三態啟用/禁用，膠帶和卷軸包裝

CWX813-020.48M,20.48MHz,7050mm,ConnorWinfield時鐘振蕩器,導航晶振,參數表

型號	CWX813
頻率	20.48MHz
電源電壓	3.3V
輸入電壓	Vcc+0.5
輸出	CMOS
工作溫度	-20 °C ~ +70 °C
保存溫度	-55 °C ~ +125 °C

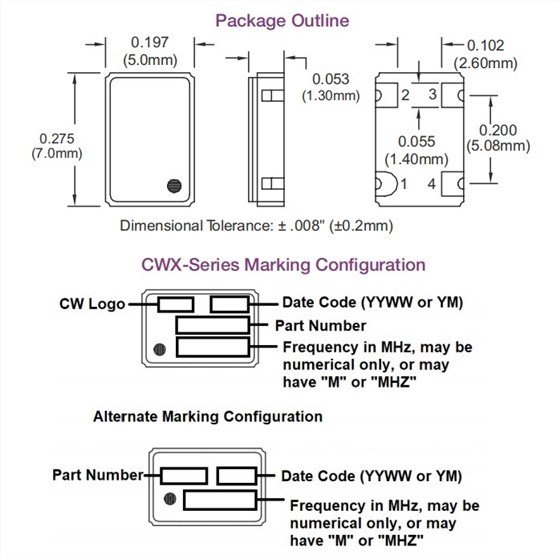

CWX813-020.48M,20.48MHz,7050mm,ConnorWinfield時鐘振蕩器,導航晶振,尺寸圖

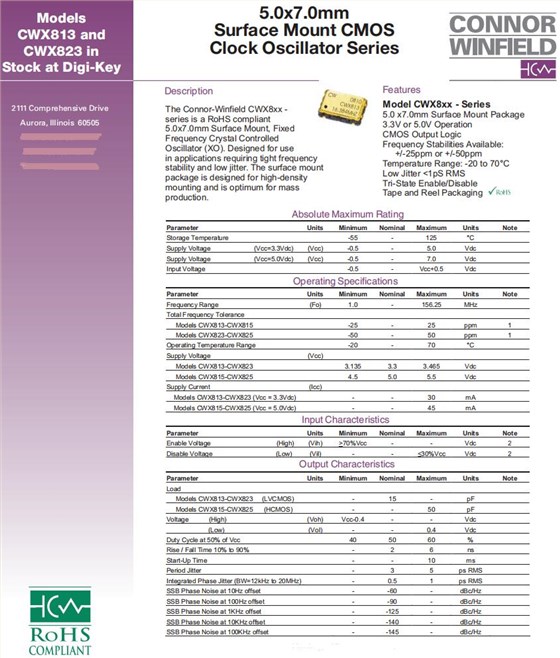

CWX813，CWX823,CWX815,CWX825

石英晶體振蕩器	品牌	型號	頻率	工作溫度
CWX813-024.0M	ConnorWinfield晶振	CWX813	24MHz	-20°C ~ 70°C
CWX813-012.0M	ConnorWinfield晶振	CWX813	12MHz	-20°C ~ 70°C
CWX813-018.432M	ConnorWinfield晶振	CWX813	18.432MHz	-20°C ~ 70°C
CWX813-001.8432M	ConnorWinfield晶振	CWX813	1.8432MHz	-20°C ~ 70°C
CWX813-007.3728M	ConnorWinfield晶振	CWX813	7.3728MHz	-20°C ~ 70°C
CWX813-010.0M	ConnorWinfield晶振	CWX813	10MHz	-20°C ~ 70°C
CWX813-025.0M	ConnorWinfield晶振	CWX813	25MHz	-20°C ~ 70°C
CWX813-027.0M	ConnorWinfield晶振	CWX813	27MHz	-20°C ~ 70°C
CWX813-033.0M	ConnorWinfield晶振	CWX813	33MHz	-20°C ~ 70°C
CWX813-040.0M	ConnorWinfield晶振	CWX813	40MHz	-20°C ~ 70°C
CWX813-060.0M	ConnorWinfield晶振	CWX813	60MHz	-20°C ~ 70°C
CWX813-004.0M	ConnorWinfield晶振	CWX813	4MHz	-20°C ~ 70°C
CWX813-016.0M	ConnorWinfield晶振	CWX813	16MHz	-20°C ~ 70°C
CWX813-080.0M	ConnorWinfield晶振	CWX813	80MHz	-20°C ~ 70°C
CWX813-064.0M	ConnorWinfield晶振	CWX813	64MHz	-20°C ~ 70°C
CWX813-100.0M	ConnorWinfield晶振	CWX813	100MHz	-20°C ~ 70°C
CWX813-044.736M	ConnorWinfield晶振	CWX813	44.736MHz	-20°C ~ 70°C
CWX813-012.288M	ConnorWinfield晶振	CWX813	12.288MHz	-20°C ~ 70°C
CWX813-019.44M	ConnorWinfield晶振	CWX813	19.44MHz	-20°C ~ 70°C
CWX813-024.576M	ConnorWinfield晶振	CWX813	24.576MHz	-20°C ~ 70°C
CWX813-030.0M	ConnorWinfield晶振	CWX813	30MHz	-20°C ~ 70°C
CWX813-020.0M	康納溫菲爾德晶振	CWX813	20MHz	-20°C ~ 70°C
CWX813-020.48M	ConnorWinfield晶振	CWX813	20.48MHz	-20°C ~ 70°C
CWX813-049.152M	ConnorWinfield晶振	CWX813	49.152MHz	-20°C ~ 70°C
CWX813-050.0M	ConnorWinfield晶振	CWX813	50MHz	-20°C ~ 70°C
CWX813-029.4912M	ConnorWinfield晶振	CWX813	29.4912MHz	-20°C ~ 70°C
CWX813-066.6666M	ConnorWinfield晶振	CWX813	66.6666MHz	-20°C ~ 70°C
CWX813-001.544M	ConnorWinfield晶振	CWX813	1.544MHz	-20°C ~ 70°C
CWX813-016.384M	ConnorWinfield晶振	CWX813	16.384MHz	-20°C ~ 70°C
CWX813-072.0M	ConnorWinfield晶振	CWX813	72MHz	-20°C ~ 70°C
CWX813-014.31818M	ConnorWinfield晶振	CWX813	14.31818MHz	-20°C ~ 70°C
CWX813-015.36M	ConnorWinfield晶振	CWX813	15.36MHz	-20°C ~ 70°C
CWX813-045.0M	ConnorWinfield晶振	CWX813	45MHz	-20°C ~ 70°C
CWX813-003.6864M	ConnorWinfield晶振	CWX813	3.6864MHz	-20°C ~ 70°C
CWX813-008.0M	ConnorWinfield晶振	CWX813	8MHz	-20°C ~ 70°C
CWX813-032.0M	ConnorWinfield晶振	CWX813	32MHz	-20°C ~ 70°C
CWX813-032.768M	ConnorWinfield晶振	CWX813	32.768MHz	-20°C ~ 70°C
CWX813-033.333M	ConnorWinfield晶振	CWX813	33.333MHz	-20°C ~ 70°C
