產品簡介

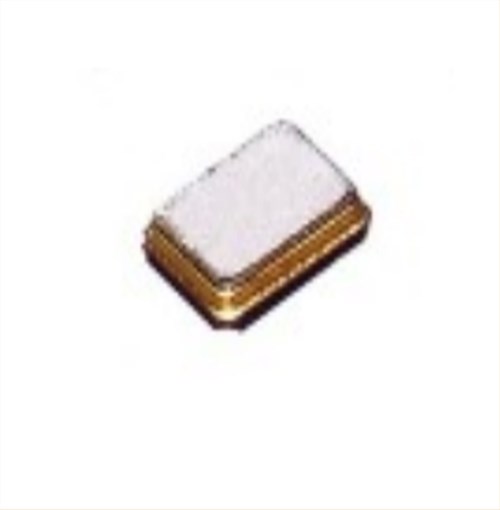

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體，尺寸2.5x2.0mm，頻率為24MHZ，歐洲石英晶體，歐美進口晶振，無源貼片晶振，石英SMD晶振，SMD晶振，石英水晶振子，石英晶體諧振器，小體積晶振，手持式設備晶振，無線設備晶振，藍牙音響晶振，小型設備晶振，智能家居晶振，網絡設備晶振，平板電腦晶振，低功耗晶振，輕薄型晶振，低成本晶振，高質量晶振.

X22貼片石英晶振是覆蓋頻率的超小型AT切割晶體頻率范圍12MHz至60MHz。它們的小尺寸（2.5 x2.0mm）和低質量使這些晶體成為小型化的理想選擇手持式設備和類似的高密度應用。Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體.

產品詳情

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶體 參數表

Frequency Range
AT-Cut Fundamental:				24.0MHz
Calibration Tolerance at 25ºC:				±5, ±10ppm, ±20ppm, ±30ppm
Frequency stability -10° to +60°C -20° to +70°C -40° to +85°C				from ±5ppm from ±5ppm from ±15ppm
Storage Temperature:				-50°~+105°C
Equivalent Series Resistance:				See table
Shunt Capacitance (C0):				2pF to 4pF typical, 5pF maximum
Load Capacitance (CL):				Series or from 8pF to 32pF
Ageing:				<±3ppm per year at +25°C
Drive level:				10 µW typ., 100 µW max.
Reflow Soldering:				10s maximum at 260°C twice
or 180s at 230°C, once.
