當前位置：首頁 » 歐美進口晶振 » AEL晶振 » ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振

prevnext

ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振

頻率：12MHZ

尺寸：3.2x2.5mm

ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振，尺寸3.2x2.5mm，頻率12MHZ，美國艾爾晶振，歐美進口晶振，3225mm無源晶體，石英貼片晶振，無源石英晶體，無源晶振，石英晶振，水晶振動子，SMD晶振，12MHZ貼片晶振，石英晶體諧振器，平板電腦晶振，藍牙耳機晶振，數字電視晶振，蜂窩電話晶振，娛樂設備晶振，網絡設備晶振，小型設備晶振，低功耗晶振，低耗能晶振，低成本晶振，高質量晶振，具有高質量低成本的特點。

無源晶體產品特別適合用于平板電腦，藍牙耳機，數字電視，蜂窩電話，娛樂設備，網絡設備，小型設備等應用。ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振.

訂購熱線：0755-27876201

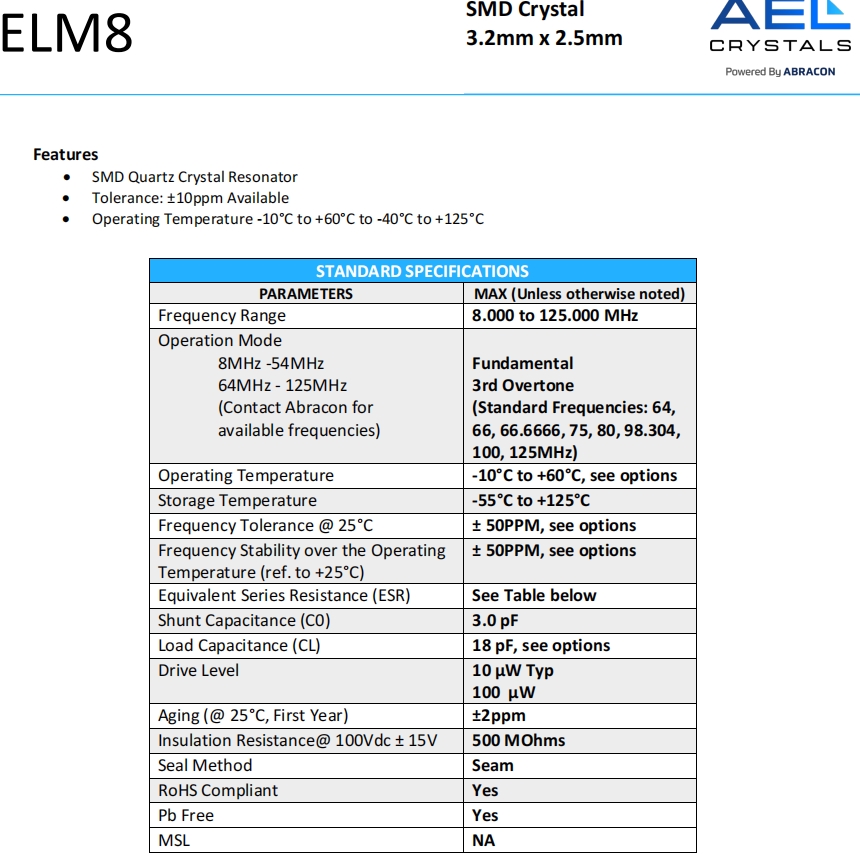

ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振 參數表

STANDARD SPECIFICATIONS
PARAMETERS						MAX (Unless otherwise noted)
Frequency Range						12.000 MHz
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies)						Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz)
Operating Temperature						-10°C to +60°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 50PPM, see options
Frequency Stability over the Operating Temperature (ref. to +25°C)						± 50PPM, see options

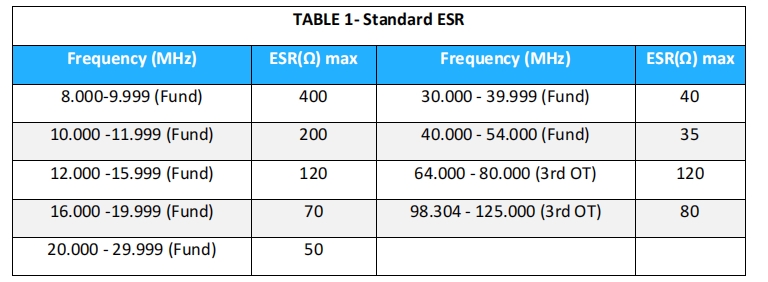

Equivalent Series Resistance (ESR)						See Table below
Shunt Capacitance (C0)						3.0 pF
Load Capacitance (CL)						18 pF, see options
Drive Level						10 μW Typ 100 μW
Aging (@ 25°C, First Year)						±2ppm
Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA

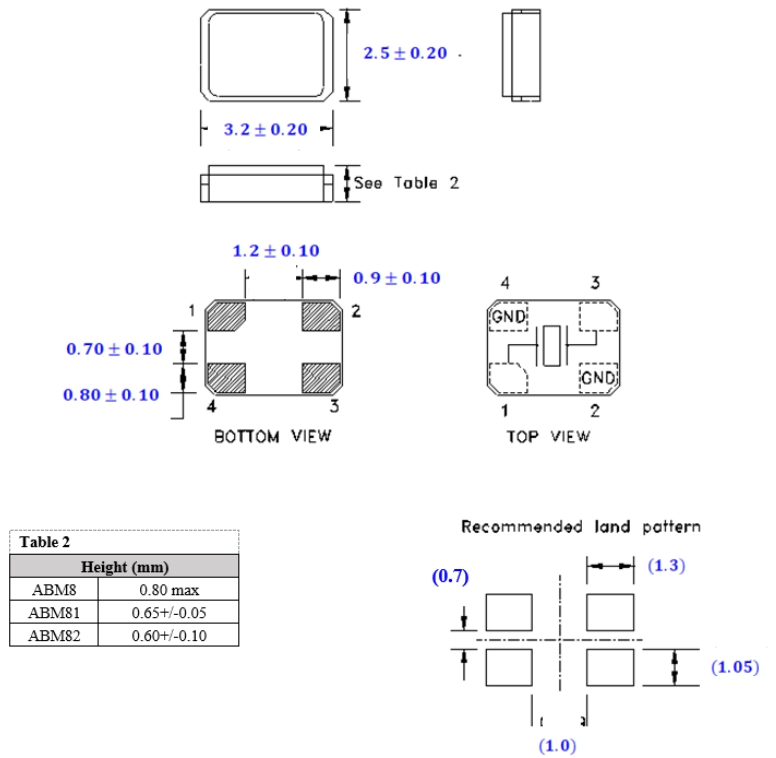

ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振 尺寸圖

ELM8-12.000MHz-10-R50-D4Y-T,ELM8平板電腦晶振,AEL艾爾晶振

產品特性：

SMD石英晶體諧振器

公差：±10ppm可用

工作溫度-10°C至+60°C至-40°C至+125°C

ELM8 2

Part	歐美晶振	Length	Width	Height	Operating Temperature	Frequency	Frequency Stability
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz	±100ppm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz	±50ppm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz	±30ppm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz	±10ppm
ELLS-4.000MHz-16-R120-A4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	4 MHz	±50ppm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-25°C ~ 75°C	4 MHz	±20ppm
ELLS-4.000MHz-30-R120-D4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	4 MHz	±50ppm
ELLS-8.000MHz-16-R45-D4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	8 MHz	±50ppm
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz	±20ppm
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz	±15ppm
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	2mm	1.6mm	0.5mm	-40°C ~ 85°C	32 MHz	±20ppm
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz	±30ppm
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz	±50ppm
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz	±50ppm
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	5mm	3.2mm	1mm	-20°C ~ 70°C	8.057 MHz	±30ppm
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz	±30ppm
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz	±10ppm
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz	±10ppm
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz	±100ppm
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz	±25ppm
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz	±10ppm
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz	±10ppm
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz	±10ppm
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz	±10ppm
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz	±15ppm
ELS07-32.768kHz-6-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz	0
ELS07-32.768kHz-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz	0
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS13-32.768kHz-9-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	±-0.034ppm
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS25-32.768kHz-6-2-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz	±0.035ppm
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz	0
ELS06-32.768kHz-9-T	AEL Crystals	2mm	1.2mm	0.6mm	-40°C ~ 85°C	32.768 kHz
ELS05-32.768kHz-9-T	AEL Crystals	1.6mm	1mm	0.5mm	-40°C ~ 85°C	32.768 kHz
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C	24 MHz	±20ppm
X10M000000L121	AEL Crystals	11.3mm	4mm	16mm	-20°C ~ 70°C	10 MHz	±50ppm
X10M000000S065	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz	±100ppm
X12M000000S081	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz	±50ppm
X12M000000S096	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz	±30ppm
X12M000000S118	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz	±30ppm
X12M582900S001	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz	±10ppm
X13M560000S024	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz	±30ppm
X14M000000S003	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz	±50ppm
X14M800000S001	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz	±10ppm
X16M000000S182	AEL Crystal	3mm	2.5mm	0.6mm	-40°C ~ 85°C	16 MHz	±30ppm
X16M000000S207	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz	±20ppm
X18M432000S049	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz	±100ppm
X21M948717S005	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 125°C	21.948717 MHz	±50ppm
X24M000000S029	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz	±15ppm
X24M000000S049	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	24 MHz	±25ppm
X24M000000S050	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz	±25ppm
X24M000000S079	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz	±50ppm
X24M000000S094	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz	±10ppm
X24M000000S303	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz	±10ppm
X26M000000S301	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz	±10ppm
X30M000000S005	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz	±10ppm
X32K768L025	AEL Crystals	2.1mm	6.2mm	13.2mm	-10°C ~ 60°C	32.768 kHz	0
X32K768L104	AEL Crystals	2.9mm	8mm	17mm	-10°C ~ 60°C	32.768 kHz	0
X32K768S003	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz	±-0.034ppm
