當前位置：首頁 » 歐美進口晶振 » 瑞薩renesas晶振 » XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振

prevnext

XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振

頻率：625.000MHz

尺寸：5.0x3.2x1.17mm

XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振，進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPP516625.000000I，頻率為：625.000MHz，小型外形尺寸：5.0x3.2x1.17mm封裝，LVPECL輸出差分晶體振蕩器，8墊腳貼片晶振，石英貼片晶振，5032進口晶振，有源晶振，耐高溫晶振，石英晶體振蕩器，電壓1.8V，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，低相位噪聲，低電平，低耗能，低損耗等特點。應用于：通訊設備，物聯網，無線網絡，藍牙模塊，路由器，交換機，以太網，光纖通道，導航儀，GPS定位，工業等應用。

訂購熱線：0755-27876201

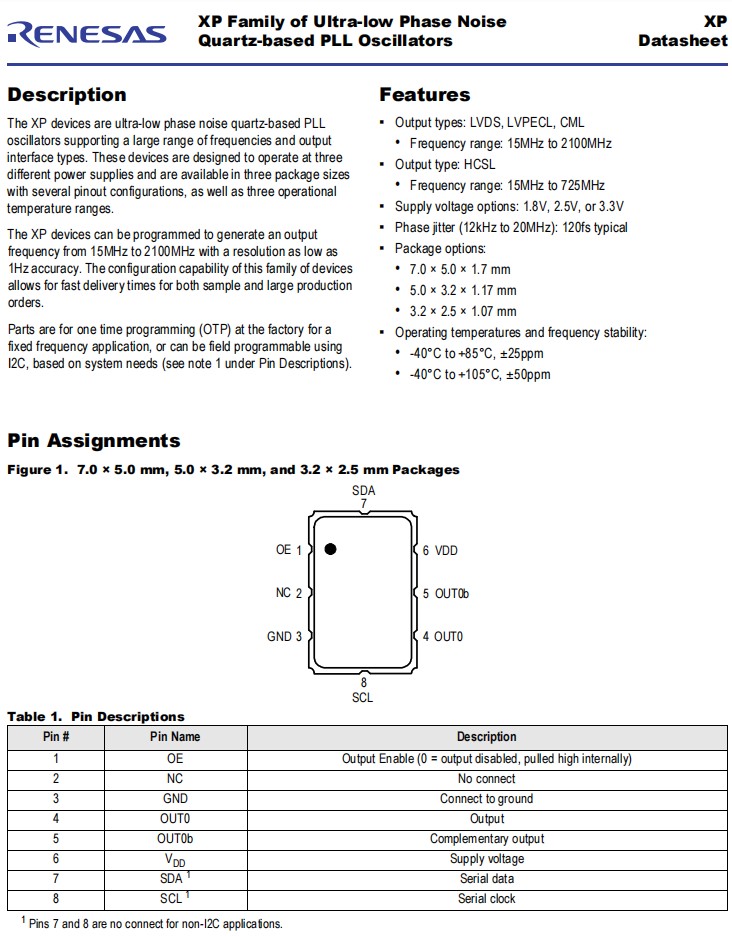

XP系列差分晶振是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。

XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振,參數表

Parameter	Test Condition		Minimum	Typical	Maximum	Units
Output Frequency Range	LVDS, LVPECL, CML.			—	625.000	MHz
Output Frequency Range	HCSL.		15	—	725
Frequency Stability	Temperature = -40°C to +85°C.		—	—	±25	ppm
Frequency Stability	Temperature = -40°C to +105°C.		—	—	±50	ppm
Frequency Tolerance (25°C)	Temperature = 25°C.		-15	±10	-15	ppm
Aging (1st year)	TA = 25°C.		—	—	±3	ppm
Aging (10 years)	TA = 25°C.		—	—	±10	ppm
Output Load	LVDS.	Differential.	—	100	—	Ω
	LVPECL.	VDD - 2.0V.	—	50	—
	HCSL.	To GND.	—	50	—
Start-up Time	Output valid time after VDD meets minimum specified level.		—	5	—	ms
Output Rise Time	LVDS.	20% – 80%, 156.25MHz	—	299	400	ps
	LVPECL.		—	287	400
	HCSL.		—	306	400
	CML		—	301	400
Output Fall Time	LVDS.	20% – 80%, 156.25MHz	—	279	400	ps
	LVPECL.		—	274	400
	HCSL.		—	284	400
	CML		—	279	400
Output Clock Duty Cycle	LVDS.	156.25MHz	48	—	52	%
	LVPECL.	156.25MHz	48	—	52
	HCSL.	156.25MHz	48	—	52
	CML	156.25MHz	48	—	52
Output Enable/Disable Time	—	—	—	1	—	ms

XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振,尺寸圖

XPP516625.000000I,瑞薩LVPECL輸出振蕩器,交換機應用晶振

產品特點：

輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：

7.0×5.0×1.7mm

5.0×3.2×1.17mm貼片石英晶振

3.2×2.5×1.07mm
工作溫度和頻率穩定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm

編碼	進口晶振	描述	系列	頻率	輸出	電壓
XPP736625.000000I	Renesas晶振	0625.000000MHZ 3.3VDC LVPECL 705	XPP	625 MHz	LVPECL	3.3V
XPP736156.250000I	Renesas晶振	0156.250000MHZ 3.3VDC LVPECL 705	XPP	156.25 MHz	LVPECL	3.3V
XPP736312.500000I	Renesas晶振	0312.500000MHZ 3.3VDC LVPECL 705	XPP	312.5 MHz	LVPECL	3.3V
XPP336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	100 MHz	LVPECL	3.3V
XPP736161.132812I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	161.132812 MHz	LVPECL	3.3V
XPP736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	125 MHz	LVPECL	3.3V
XPP316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.25 MHz	LVPECL	1.8V
XPP736212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	212.5 MHz	LVPECL	3.3V
XPP736156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.253906 MHz	LVPECL	3.3V
XPP736175.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	175 MHz	LVPECL	3.3V
XPP736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	100 MHz	LVPECL	3.3V
XPP736106.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	106.25 MHz	LVPECL	3.3V
XPP735156.250005I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.250005 MHz	LVPECL	3.3V
XPP736122.880000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	122.88 MHz	LVPECL	3.3V
XPP736124.992000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	124.992 MHz	LVPECL	3.3V
XPP736200.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	200 MHz	LVPECL	3.3V
XPP526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPP	156.25 MHz	LVPECL	2.5V
XPP726212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	212.5 MHz	LVPECL	2.5V
XPP736250.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	250 MHz	LVPECL	3.3V
XPP726312.510900I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	312.5109 MHz	LVPECL	2.5V
XPP736915.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	915 MHz	LVPECL	3.3V
XPP336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	830 MHz	LVPECL	3.3V
XPP336156.253906I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.253906 MHz	LVPECL	3.3V
XPP336250.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	250 MHz	LVPECL	3.3V
XPP736161.132580I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	161.13258 MHz	LVPECL	3.3V
XPP726445.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	445.5 MHz	LVPECL	2.5V
XPP726160.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	160 MHz	LVPECL	2.5V
XPP336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	312.5 MHz	LVPECL	3.3V
XPP516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPP	625 MHz	LVPECL	1.8V
XPP336050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	50 MHz	LVPECL	3.3V
XPP336207.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	207.5 MHz	LVPECL	3.3V
XPP726312.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	312.5 MHz	LVPECL	2.5V
XPP336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	40 MHz	LVPECL	3.3V
XPP336A00.000000I	有源晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	1 GHz	LVPECL	3.3V
XPP736159.375000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	159.375 MHz	LVPECL	3.3V
XPP536161.132812I	Renesas晶振	XTAL OS XO 161.132812MHZ LVPECL	XPP	161.132812 MHz	LVPECL	3.3V
XPP726156.257813I	Renesas晶振	XTAL OS XO 156.257813MHZ LVPECL	XPP	156.257813 MHz	LVPECL	2.5V
XPP726100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL	2.5V
XPP526155.520000I	Renesas晶振	XTAL OSC XO 155.5200MHZ LVPECL	XPP	155.52 MHz	LVPECL	2.5V
XPP516100.000000I	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL	1.8V
XPP536156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP726127.500000I	Renesas晶振	XTAL OSC XO 127.5000MHZ LVPECL	XPP	127.5 MHz	LVPECL	2.5V
XPP526150.000000I	Renesas晶振	XTAL OSC XO 150.0000MHZ LVPECL	XPP	150 MHz	LVPECL	2.5V
XPP736A00.000000I	Renesas晶振	XTAL OSC XO 1.0000GHZ LVPECL SMD	XPP	1 GHz	LVPECL	3.3V
XPP535156.25000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP726445.500001I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	445.500001 MHz	LVPECL	2.5V
XPP735245.760000K	Renesas晶振	XTAL OSC XO 245.7600MHZ LVPECL	XPP	245.76 MHz	LVPECL	3.3V
XPP535312.500000K	Renesas晶振	XTAL OSC XO 312.5000MHZ LVPECL	XPP	312.5 MHz	LVPECL	3.3V
XPP735100.000000K	Renesas晶振	XTAL OSC XO 100.0000MHZ LVPECL	XPP	100 MHz	LVPECL	3.3V
XPP735156.250000K	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP73Q122.880000I	Renesas晶振	XPP73Q122.88000 PROGRAMMABLE XO	XPP	122.880MHz	LVPECL	3.3V
XPP736045.158400I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	45.1584 MHz	LVPECL	3.3V
XPP736050.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	50 MHz	LVPECL	3.3V
XPP736155.520000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	155.52 MHz	LVPECL	3.3V
XPP736133.333000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	133.333 MHz	LVPECL	3.3V
XPP735050.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	50 MHz	LVPECL	3.3V
XPP736049.152000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	49.152 MHz	LVPECL	3.3V
XPP736150.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	150 MHz	LVPECL	3.3V
XPP735156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.25 MHz	LVPECL	3.3V
XPP336156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP336156.250000K	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP336037.125000I	Renesas晶振	XTAL OSC XO 37.1250MHZ LVPECL	XPP	37.125 MHz	LVPECL	3.3V
XPP326125.000000I	Renesas晶振	XTAL OSC XO 125.0000MHZ LVPECL	XPP	125 MHz	LVPECL	2.5V
XPP536500.000000I	Renesas晶振	XTAL OSC XO 500.0000MHZ LVPECL	XPP	500 MHz	LVPECL	3.3V
XPP536312.500000I	Renesas晶振	XTAL OSC XO 312.5000MHZ LVPECL	XPP	312.5 MHz	LVPECL	3.3V
XPP726156.250000I	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	2.5V
XPP536625.000000I	Renesas晶振	XTAL OSC XO 625.0000MHZ LVPECL	XPP	625 MHz	LVPECL	3.3V
XPP736705.024000I	Renesas晶振	XTAL OSC XO 705.0240MHZ LVPECL	XPP	705.024 MHz	LVPECL	3.3V
XPP726500.000000I	Renesas晶振	XTAL OSC XO 500.0000MHZ LVPECL	XPP	500 MHz	LVPECL	2.5V
XPP726120.000000I	Renesas晶振	XTAL OSC XO 120.0000MHZ LVPECL	XPP	120 MHz	LVPECL	2.5V
XPP33CA00.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	1 GHz	LVPECL	3.3V
XPP52C156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XPP	156.25 MHz	LVPECL	2.5V
XPP33IA00.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	1 GHz	LVPECL	3.3V
XPP736248.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	248 MHz	LVPECL	3.3V
XPP535156.250000K	Renesas晶振	XTAL OSC XO 156.2500MHZ LVPECL	XPP	156.25 MHz	LVPECL	3.3V
XPP73Q156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	156.25 MHz	LVPECL	3.3V
XPP73Q100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XPP	100 MHz	LVPECL	3.3V
XPP335026.000000K	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	26 MHz	LVPECL	3.3V
XPP325156.250000K	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.25 MHz	LVPECL	2.5V
XPP335156.250000K	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	156.25 MHz	LVPECL	3.3V
XPP335054.000000K	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XPP	54 MHz	LVPECL	3.3V
