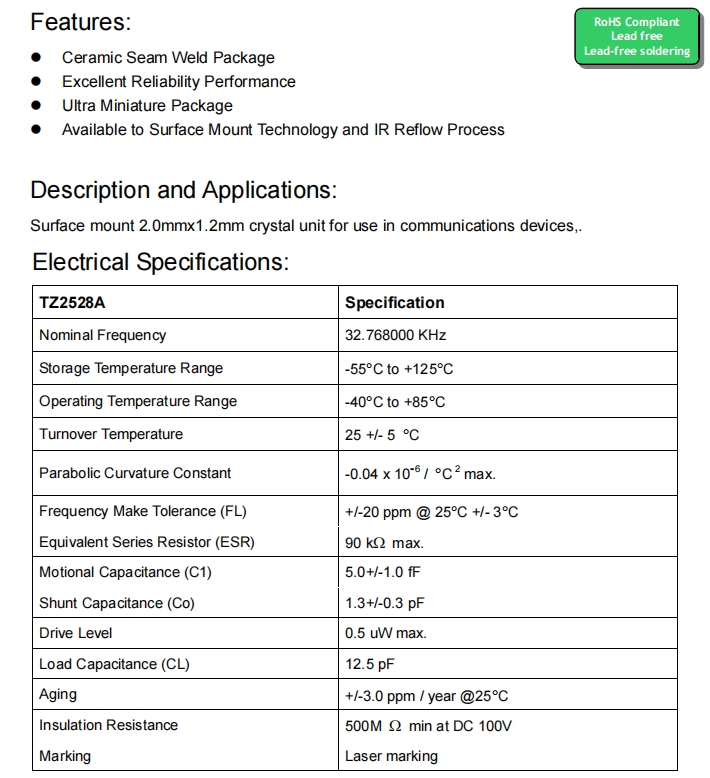

TZ2528A,32.768KHZ,2012mm兩腳貼片晶振,臺灣TST晶振特點:
32.768K晶振陶瓷接縫封裝,卓越的可靠性性能
超微型封裝,可用于表面安裝技術和紅外回流工藝
表面安裝的2.0mmx1.2mm晶體單元，用于通信裝置.
TZ2528A,32.768KHZ,2012mm兩腳貼片晶振,臺灣TST晶振 參數表
        TZ2528A
|
Specification |
| NominalFrequency | 32.768000KHz |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -40°Cto+85°C |
| Turnover Temperature | 25+/-5°C |
| Parabolic CurvatureConstant | -0.04ppm/°C2max. |
| FrequencyMakeTolerance(FL) |
+/-20 ppm@25°C+/-3°C 90KΩmax. |
| EquivalentSeriesResistor(ESR) | 70kΩmax. |
| LoadCapacitance(CL) |
5.0+/-1.0 fF |
| ShuntCapacitance(Co) |
1.3+/-0.3 PF |
| DriveLevel | 0.5uWmax. |
| Aging | +/-3.0ppm/year@25°C |
| InsulationResistance | 500MΩmin atDC100V |
| Marking | Lasermarking |

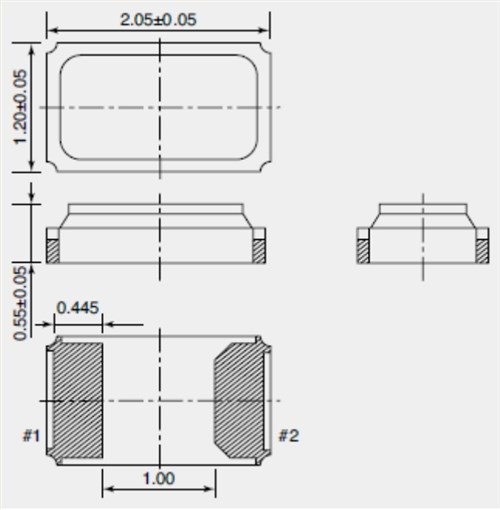

TZ2528A,32.768KHZ,2012mm兩腳貼片晶振,臺灣TST晶振 尺寸圖
