艾西迪時鐘晶體3215A,SY00003GIHD-PF,6G移動通信晶振，ACT無源晶體，英國進口晶振，32.768K時鐘晶體，32.768K晶振，3215mm貼片晶振，兩腳無源晶體，音叉晶體，水晶振動子，無源晶體，SMD晶體，石英貼片晶振，無源貼片晶振，貼片諧振器，高精度晶振，無鉛環保晶振，高性能貼片晶振，消費電子專用晶振，計量應用無源晶振，移動通信專用晶振，醫療產品晶振，工業應用晶振。
貼片晶振產品具有輕薄型高精度高性能的特點，很適合用于消費、計量、移動通信、醫療、工業，數碼電子，智能家居，藍牙音響等領域。艾西迪時鐘晶體3215A,SY00003GIHD-PF,6G移動通信晶振.

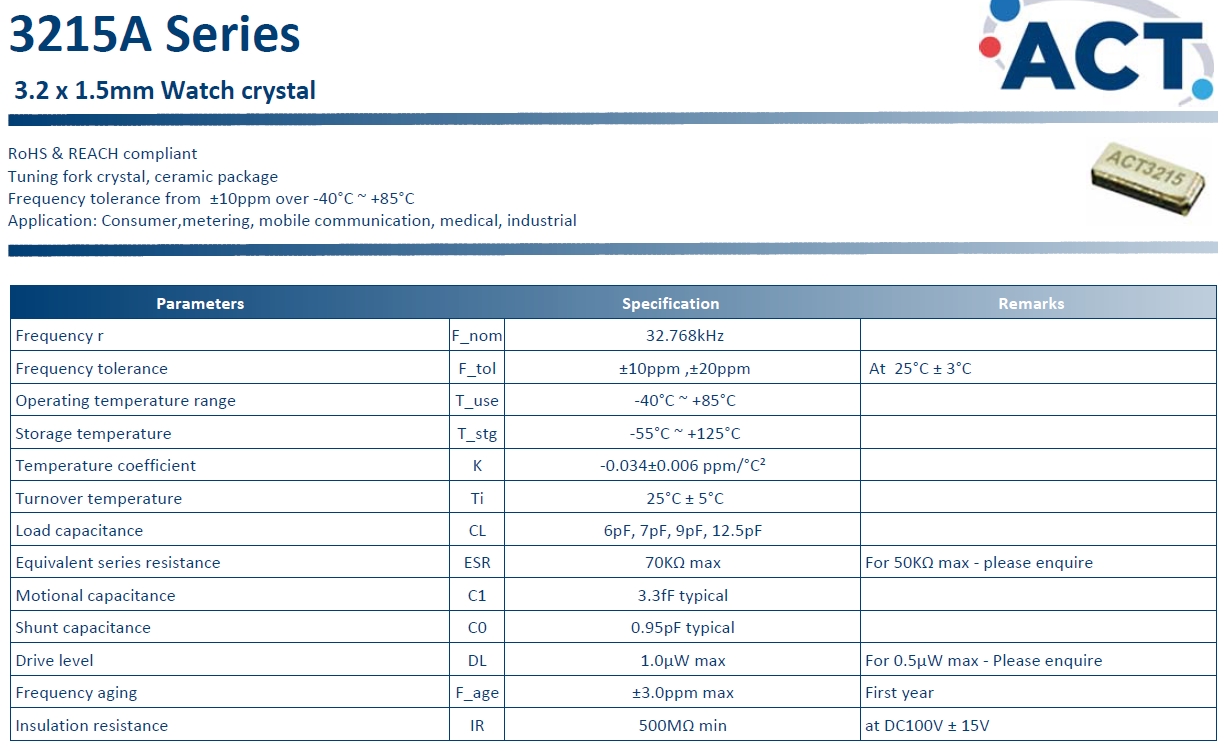

艾西迪時鐘晶體3215A,SY00003GIHD-PF,6G移動通信晶振 參數表
|
Parameters |
|
|
||
|
Frequencyr |
F_nom |
32.768kHz |
||
|
Frequency tolerance |
F_tol |
±10ppm,±20ppm |
At25°C±3°C |
|
|
Operating temperaturerange |
T_use |
-40°C ~+85°C |
||
|
Storage temperature |
T_stg |
-55°C ~+125°C |
||
|
Temperature coefficient |
K |
-0.034±0.006ppm/°C² |
||
|
Turnover temperature |
Ti |
25°C±5°C |
||
|
Load capacitance |
CL |
6pF, 7pF,9pF,12.5pF |
||
|
Equivalent seriesresistance |
ESR |
70KΩmax |
For50KΩmax-pleaseenquire |
|
|
Motional capacitance |
C1 |
3.3fFtypical |
||
|
Shunt capacitance |
C0 |
0.95pFtypical |
||
|
Drivelevel |
DL |
1.0μWmax |
For0.5μWmax-Pleaseenquire |
|
|
Frequency aging |
F_age |
±3.0ppmmax |
First year |
|
|
Insulationresistance |
IR |
500MΩmin |
atDC100V ±15V |
|
Specification
Remarks

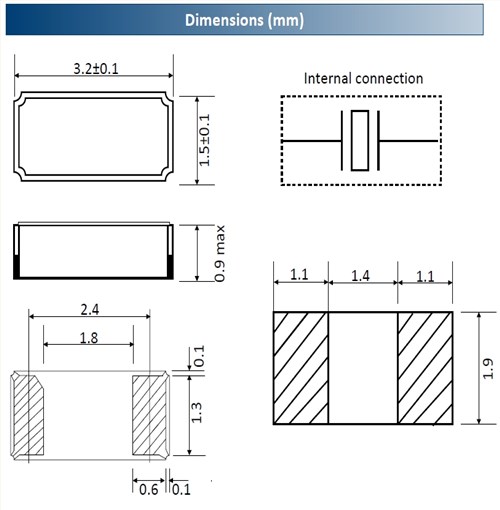

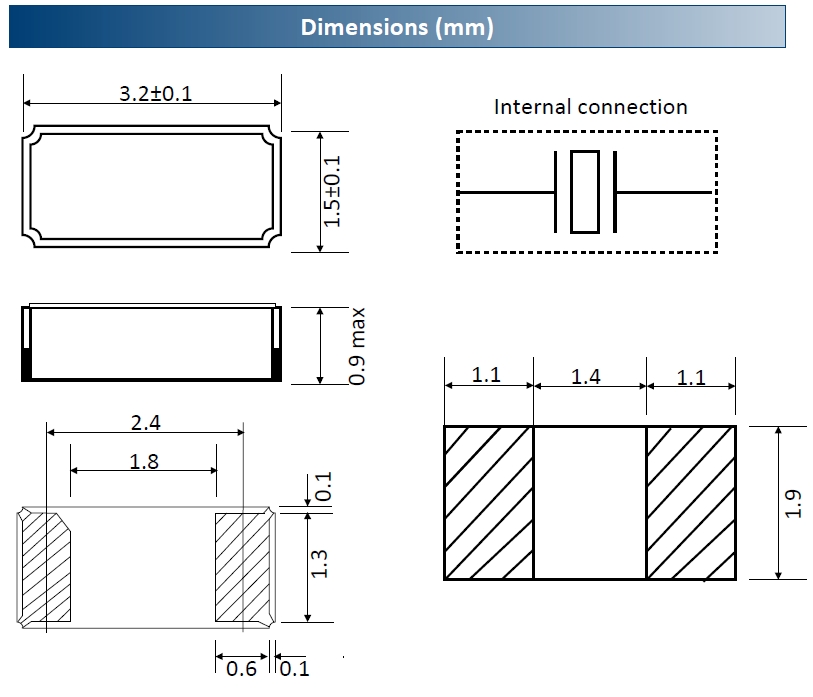

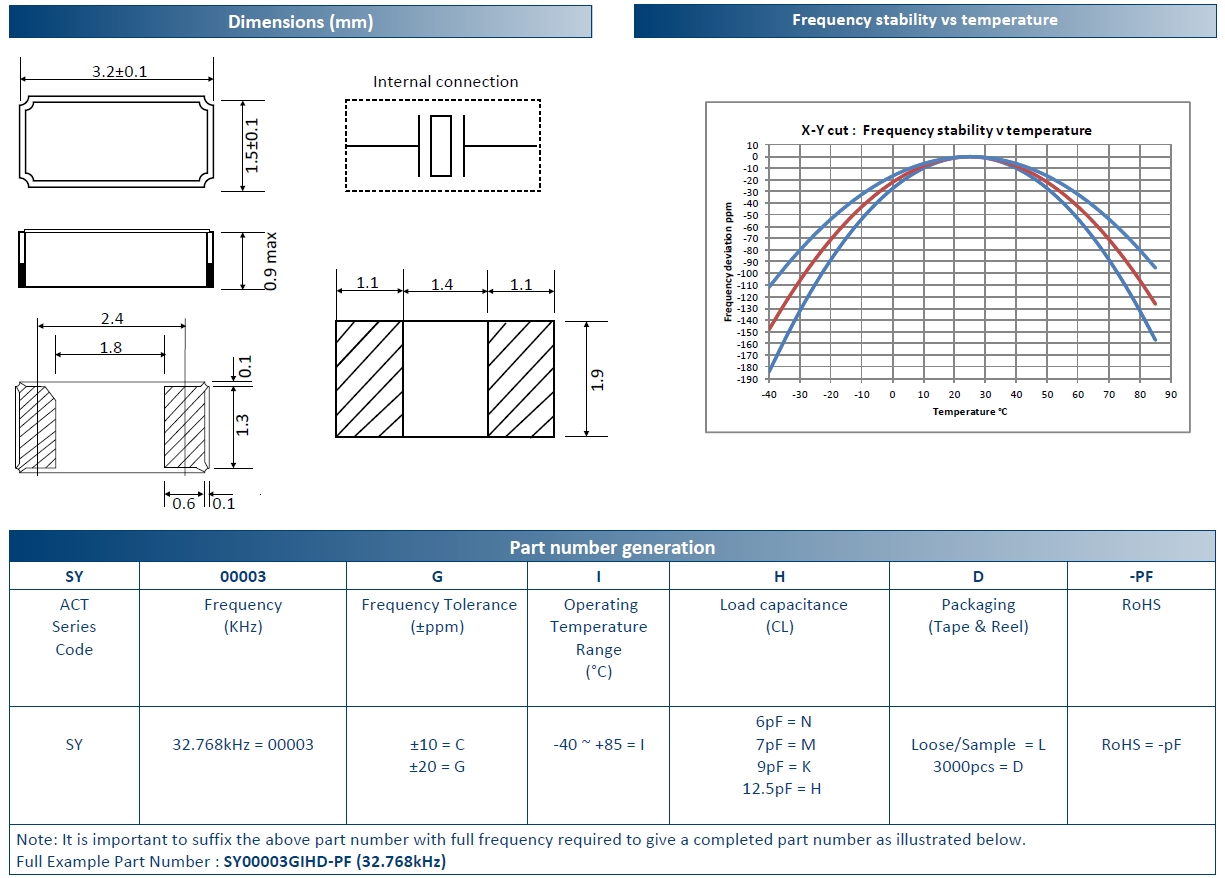

艾西迪時鐘晶體3215A,SY00003GIHD-PF,6G移動通信晶振 尺寸圖
石英晶振特點：
符合RoHS和REACH標準
音叉水晶，陶瓷包裝
-40°C+85°C以上±10ppm的頻率公差
更多相關英國艾西迪晶振型號，請聯系我們！
