BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22，尺寸1.6x1.0mm，頻率32.768KHZ，BC22系列是一種超小型smd陶瓷晶振，高度為0.5mm。非常適合最小的電路空間應用包括移動通信、芯片卡、實時時鐘和無線通信。美國進口晶振，Bomar輕薄型晶振，1610mm超小型晶振，32.768KHZ音叉晶體，無源貼片晶振，無源晶振，SMD諧振器，32.768K晶振，兩腳貼片晶振，輕薄型晶體，移動通信晶振，實時時鐘專用晶振，無線通信晶振，網絡設備晶振，藍牙耳機晶振，高性能晶振，高品質晶振，低損耗晶振，低耗能晶振，具有輕薄型高品質的特點。BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22.

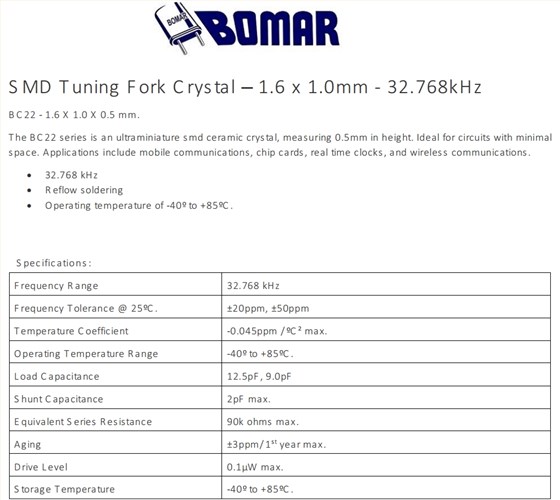

BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22 參數表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.045ppm / ºC² max. | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 90k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 0.1µW max. | |||||||||
| Storage Temperature | -40º to +85ºC. | |||||||||

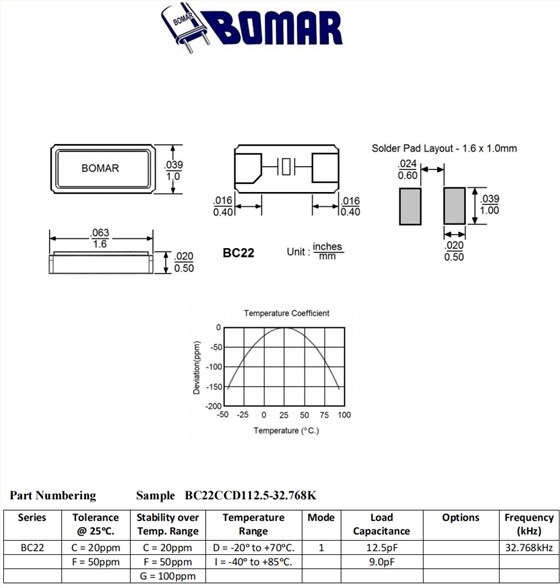

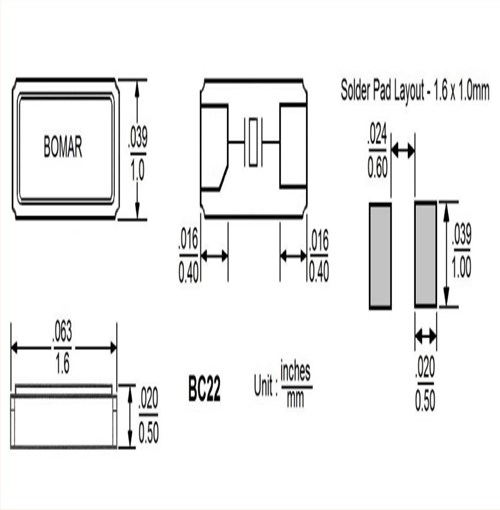

BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22 尺寸圖

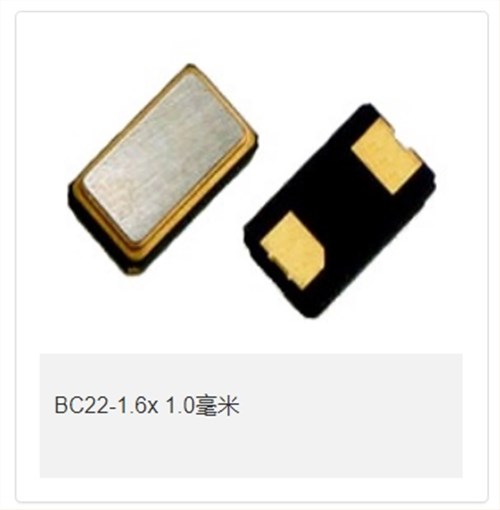

BC22CCI112.5-32.768K,1610mm,Bomar音叉晶振,BC22
無源晶體產品特性：
尺寸1.6x1.0mm
32.768千赫
回流焊接
工作溫度為-40º至+85ºC。
