550AD27M0000DGR|Skyworks壓控振蕩器Si550|6G光模塊晶振，尺寸7.0x5.0mm，頻率27MHZ，支持輸出LVPECL，電壓3.3V，頻率穩定性50ppm，VCXO壓控晶振，壓控差分晶振，OSC差分晶振，LVPECL輸出晶振，LVPECL差分壓控晶振，壓控晶體振蕩器，7050mm壓控晶振，六腳壓控差分晶振，測試測量差分晶振，儀器設備壓控晶振，路由器差分晶振，無線局域網差分晶振，光模塊差分晶振，數據恢復壓控晶振，低抖動壓控晶振，低損耗差分晶振，低電壓差分晶振，高品質壓控晶振，以太網專用差分晶振，數字視頻專用差分晶振，具有小體積低電壓的特點。

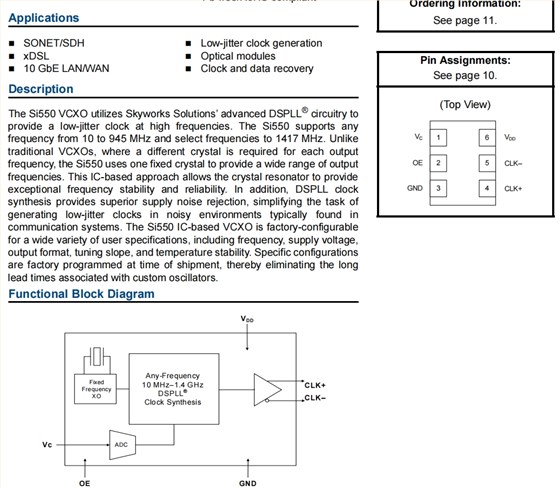

Si550 VCXO利用Skyworks Solutions的先進DSPLL®電路在高頻下提供低抖動時鐘。Si550支持任何頻率從10到945MHz，并選擇頻率到1417MHz。不像傳統的VCXO振蕩器，其中每個輸出需要不同的晶體頻率，Si550使用一個固定晶體來提供寬范圍的輸出頻率。這種基于IC的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了卓越的電源噪聲抑制，簡化了在噪聲環境中生成低抖動時鐘通信系統?；赟i550 IC的VCXO有源晶振可在工廠進行配置對于包括頻率、電源電壓、電源電壓等的各種各樣的用戶規范，輸出格式、調諧斜率和溫度穩定性。550AD27M0000DGR|Skyworks壓控振蕩器Si550|6G光模塊晶振.

550AD27M0000DGR|Skyworks壓控振蕩器Si550|6G光模塊晶振 參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Supply Voltage1

VDD

3.3 V option

2.97

3.3

3.63

2.5 V option

2.25

2.5

2.75

1.8 V option

1.71

1.8

1.89

Supply Current

IDD

Output enabled
LVPECL
CML
LVDS
CMOS

120
108
99
90

130
117
108
98

tristate mode

Output Enable (OE)2

VIH

0.75 x VDD

VIL

0.5

Operating Temperature Range

–40

°C

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

Control Voltage Tuning Slope1,2,3

10 to 90% of VDD

33
45
90
135
180
356

ppm/V

Control Voltage Linearity4

LVC

BSL

–5

±1

Incremental

–10

±5

+10

Modulation Bandwidth

9.3

10.0

10.7

kHz

VCInput Impedance

ZVC

500

kΩ

Nominal Control Voltage

VCNOM

@ fO

VDD/2

Control Voltage Tuning Range

VDD

Parameter

Symbol

Test Condition

Min

Typ

Max

Units

LVPECL Output Option1

mid-level

VDD– 1.42

VDD– 1.25

VOD

swing (diff)

1.1

1.9

VPP

VSE

swing (single-ended)

0.55

0.95

VPP

LVDS Output Option2

mid-level

1.125

1.20

1.275

VOD

swing (diff)

0.5

0.7

0.9

VPP

CML Output Option2

2.5/3.3 V option mid-level

—

VDD– 1.30

—

1.8 V option mid-level

—

VDD– 0.36

—

VOD

2.5/3.3 V option swing (diff)

1.10

1.50

1.90

VPP

1.8 V option swing (diff)

0.35

0.425

0.50

VPP

CMOS Output Option3

VOH

IOH= 32 mA

0.8 x VDD

—

VDD

VOL

IOL= 32 mA

—

0.4

Rise/Fall time (20/80%)

tR,tF

LVPECL/LVDS/CML

—

350

CMOS with CL= 15 pF

—

Symmetry (duty cycle)

SYM

LVPECL:VDD– 1.3 V (diff)
LVDS:1.25 V (diff)
CMOS:VDD/2

—

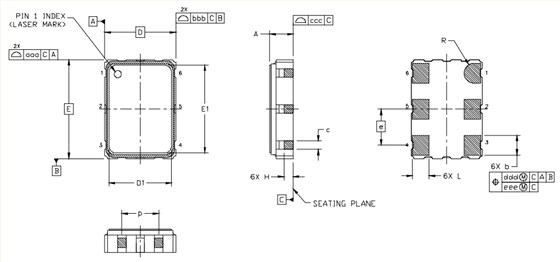

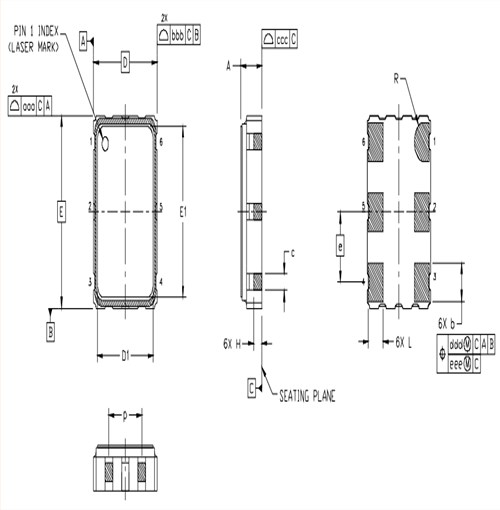

550AD27M0000DGR|Skyworks壓控振蕩器Si550|6G光模塊晶振 尺寸圖

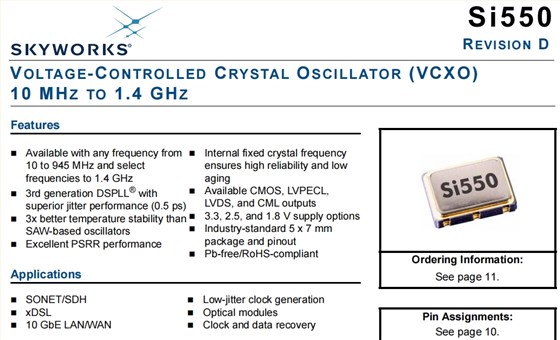

差分晶體振蕩器產品特性:

適用于以下任意頻率10至945MHz，選擇頻率至1.4GHz

第三代DSPLL®卓越的抖動性能（0.5ps）

溫度穩定性比SAW振蕩器

出色的PSRR性能

內部固定晶體頻率

確保高可靠性和低成本

可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項

行業標準5x7mm

包裝和引腳

無鉛/符合RoHS

更多相關美國Skyworks晶振型號

Mfr Part #	美國進口晶振	Description	Series	Frequency	Output	Voltage - Supply
550CE100M000DG	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ CMOS	Si550	100 MHz	CMOS	3.3V
550BJ25M0000DG	Skyworks有源晶振	VCXODIFFSESINGLE FREQ10-14	Si550	25 MHz	LVDS	3.3V
550CE102M400DG	Skyworks有源晶振	XTAL OSC VCXO 102.4000MHZ CMOS	Si550	102.4 MHz	CMOS	3.3V
550CD16M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 16.0000MHZ CMOS	Si550	16 MHz	CMOS	3.3V
550CD20M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 20.0000MHZ CMOS	Si550	20 MHz	CMOS	3.3V
550CD30M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 30.0000MHZ CMOS	Si550	30 MHz	CMOS	3.3V
550CF10M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si550	10 MHz	CMOS	3.3V
550CD16M0000DG	Skyworks有源晶振	XTAL OSC VCXO 16.0000MHZ CMOS	Si550	16 MHz	CMOS	3.3V
550CD20M0000DG	Skyworks有源晶振	XTAL OSC VCXO 20.0000MHZ CMOS	Si550	20 MHz	CMOS	3.3V
550CD30M0000DG	Skyworks有源晶振	XTAL OSC VCXO 30.0000MHZ CMOS	Si550	30 MHz	CMOS	3.3V
550CF10M0000DG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si550	10 MHz	CMOS	3.3V
550CJ22M5790DG	Skyworks有源晶振	XTAL OSC VCXO 22.5790MHZ CMOS	Si550	22.579 MHz	CMOS	3.3V
550CM22M5790DG	Skyworks有源晶振	XTAL OSC VCXO 22.5790MHZ CMOS	Si550	22.579 MHz	CMOS	3.3V
550CM94M0000DG	Skyworks有源晶振	XTAL OSC VCXO 94.0000MHZ CMOS	Si550	94 MHz	CMOS	3.3V
550CJ22M5790DGR	Skyworks有源晶振	XTAL OSC VCXO 22.5790MHZ CMOS	Si550	22.579 MHz	CMOS	3.3V
550CM22M5790DGR	Skyworks有源晶振	XTAL OSC VCXO 22.5790MHZ CMOS	Si550	22.579 MHz	CMOS	3.3V
550CM94M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 94.0000MHZ CMOS	Si550	94 MHz	CMOS	3.3V
550AD10M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si550	10 MHz	LVPECL	3.3V
550AD12M5458DGR	Skyworks有源晶振	XTAL OSC VCXO 12.5458MHZ LVPECL	Si550	12.5458 MHz	LVPECL	3.3V
550AD24M5760DGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ LVPECL	Si550	24.576 MHz	LVPECL	3.3V
550AD27M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVPECL	Si550	27 MHz	LVPECL	3.3V
550AD94M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 94.0000MHZ LVPECL	Si550	94 MHz	LVPECL	3.3V
550BD62M5000DGR	Skyworks有源晶振	XTAL OSC VCXO 62.5000MHZ LVDS	Si550	62.5 MHz	LVDS	3.3V
550FD74M2500DGR	Skyworks有源晶振	XTAL OSC VCXO 74.2500MHZ LVDS	Si550	74.25 MHz	LVDS	2.5V
550RC12M2230DGR	Skyworks有源晶振	XTAL OSC VCXO 12.2230MHZ LVPECL	Si550	12.223 MHz	LVPECL	2.5V
550AJ873M515DG	Skyworks有源晶振	XTAL OSC VCXO 873.5150MHZ LVPECL	Si550	873.515 MHz	LVPECL	3.3V
550AJ873M515DGR	Skyworks有源晶振	XTAL OSC VCXO 873.5150MHZ LVPECL	Si550	873.515 MHz	LVPECL	3.3V
550FG125M000DG	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si550	125 MHz	LVDS	2.5V
550FG125M000DGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si550	125 MHz	LVDS	2.5V
550AD10M0000DG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si550	10 MHz	LVPECL	3.3V
550AD12M5458DG	Skyworks有源晶振	XTAL OSC VCXO 12.5458MHZ LVPECL	Si550	12.5458 MHz	LVPECL	3.3V
550AD24M5760DG	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ LVPECL	Si550	24.576 MHz	LVPECL	3.3V
550AD27M0000DG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVPECL	Si550	27 MHz	LVPECL	3.3V
550AD94M0000DG	Skyworks有源晶振	XTAL OSC VCXO 94.0000MHZ LVPECL	Si550	94 MHz	LVPECL	3.3V
550BD62M5000DG	Skyworks有源晶振	XTAL OSC VCXO 62.5000MHZ LVDS	Si550	62.5 MHz	LVDS	3.3V
550FD74M2500DG	Skyworks有源晶振	XTAL OSC VCXO 74.2500MHZ LVDS	Si550	74.25 MHz	LVDS	2.5V
550RC12M2230DG	Skyworks有源晶振	XTAL OSC VCXO 12.2230MHZ LVPECL	Si550	12.223 MHz	LVPECL	2.5V
550AJ40M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 40.0000MHZ LVPECL	Si550	40 MHz	LVPECL	3.3V
550CA100M000DGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ CMOS	Si550	100 MHz	CMOS	3.3V
550CA24M5760DGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ CMOS	Si550	24.576 MHz	CMOS	3.3V
550CA25M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si550	25 MHz	CMOS	3.3V
550CA27M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si550	27 MHz	CMOS	3.3V
550CA30M7200DGR	Skyworks有源晶振	XTAL OSC VCXO 30.7200MHZ CMOS	Si550	30.72 MHz	CMOS	3.3V
550CA38M8800DGR	Skyworks有源晶振	XTAL OSC VCXO 38.8800MHZ CMOS	Si550	38.88 MHz	CMOS	3.3V
550CA48M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 48.0000MHZ CMOS	Si550	48 MHz	CMOS	3.3V
550CA49M1250DGR	Skyworks有源晶振	XTAL OSC VCXO 49.1250MHZ CMOS	Si550	49.125 MHz	CMOS	3.3V
550CA49M1520DGR	Skyworks有源晶振	XTAL OSC VCXO 49.1520MHZ CMOS	Si550	49.152 MHz	CMOS	3.3V
550CB25M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si550	25 MHz	CMOS	3.3V
550CK11M2896DGR	Skyworks有源晶振	XTAL OSC VCXO 11.2896MHZ CMOS	Si550	11.2896 MHz	CMOS	3.3V
550CK22M5792DGR	Skyworks有源晶振	XTAL OSC VCXO 22.5792MHZ CMOS	Si550	22.5792 MHz	CMOS	3.3V
550CK24M5760DGR	Skyworks有源晶振	XTAL OSC VCXO 24.5760MHZ CMOS	Si550	24.576 MHz	CMOS	3.3V
550CK29M5000DGR	Skyworks有源晶振	XTAL OSC VCXO 29.5000MHZ CMOS	Si550	29.5 MHz	CMOS	3.3V
550PK13M5600DGR	Skyworks有源晶振	XTAL OSC VCXO 13.5600MHZ CMOS	Si550	13.56 MHz	CMOS	3.3V
550CB24M5760DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si550	24.576 MHz	CMOS	3.3V
550AE19M2000DGR	Skyworks有源晶振	XTAL OSC VCXO 19.2000MHZ LVPECL	Si550	19.2 MHz	LVPECL	3.3V
550CC78M3360DGR	Skyworks有源晶振	XTAL OSC VCXO 78.3360MHZ CMOS	Si550	78.336 MHz	CMOS	3.3V
550CC86M0160DGR	Skyworks有源晶振	XTAL OSC VCXO 86.0160MHZ CMOS	Si550	86.016 MHz	CMOS	3.3V
550CD000149DGR	Skyworks有源晶振	XTAL OSC VCXO 74.175824MHZ CMOS	Si550	74.175824 MHz	CMOS	3.3V
550CD000230DGR	Skyworks有源晶振	XTAL OSC VCXO 43.04895MHZ CMOS	Si550	43.04895 MHz	CMOS	3.3V
550CD000231DGR	Skyworks有源晶振	XTAL OSC VCXO 77.570634MHZ CMOS	Si550	77.570634 MHz	CMOS	3.3V
550CD100M000DGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ CMOS	Si550	100 MHz	CMOS	3.3V
550CD108M000DGR	Skyworks有源晶振	XTAL OSC VCXO 108.0000MHZ CMOS	Si550	108 MHz	CMOS	3.3V
550CD10M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ CMOS	Si550	10 MHz	CMOS	3.3V
550CD120M000DGR	Skyworks有源晶振	XTAL OSC VCXO 120.0000MHZ CMOS	Si550	120 MHz	CMOS	3.3V
550CD122M880DGR	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ CMOS	Si550	122.88 MHz	CMOS	3.3V
550CD125M000DGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ CMOS	Si550	125 MHz	CMOS	3.3V
550CD19M4400DGR	Skyworks有源晶振	XTAL OSC VCXO 19.4400MHZ CMOS	Si550	19.44 MHz	CMOS	3.3V
550CD24M7040DGR	Skyworks有源晶振	XTAL OSC VCXO 24.7040MHZ CMOS	Si550	24.704 MHz	CMOS	3.3V
550CD25M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ CMOS	Si550	25 MHz	CMOS	3.3V
550CD27M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ CMOS	Si550	27 MHz	CMOS	3.3V
550CD30M7200DGR	Skyworks有源晶振	XTAL OSC VCXO 30.7200MHZ CMOS	Si550	30.72 MHz	CMOS	3.3V
550CD36M8640DGR	Skyworks有源晶振	XTAL OSC VCXO 36.8640MHZ CMOS	Si550	36.864 MHz	CMOS	3.3V
550CD49M5000DGR	Skyworks有源晶振	XTAL OSC VCXO 49.5000MHZ CMOS	Si550	49.5 MHz	CMOS	3.3V
550CD50M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ CMOS	Si550	50 MHz	CMOS	3.3V
550CD63M8976DGR	Skyworks有源晶振	XTAL OSC晶振 VCXO 63.8976MHZ CMOS	Si550	63.8976 MHz	CMOS	3.3V
550CD64M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 64.0000MHZ CMOS	Si550	64 MHz	CMOS	3.3V
550CD65M5360DGR	Skyworks有源晶振	XTAL OSC VCXO 65.5360MHZ CMOS	Si550	65.536 MHz	CMOS	3.3V
550CD70M6560DGR	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ CMOS	Si550	70.656 MHz	CMOS	3.3V
550CD74M1582DGR	Skyworks有源晶振	XTAL OSC VCXO 74.1582MHZ CMOS	Si550	74.1582 MHz	CMOS	3.3V
550CD74M1758DGR	Skyworks有源晶振	XTAL OSC VCXO 74.1758MHZ CMOS	Si550	74.1758 MHz	CMOS	3.3V
550CD77M7600DGR	Skyworks有源晶振	XTAL OSC VCXO 77.7600MHZ CMOS	Si550	77.76 MHz	CMOS	3.3V
550CD80M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ CMOS	Si550	80 MHz	CMOS	3.3V
550CD89M6000DGR	Skyworks有源晶振	XTAL OSC VCXO 89.6000MHZ CMOS	Si550	89.6 MHz	CMOS	3.3V
550CF000205DGR	Skyworks有源晶振	XTAL OSC VCXO 36.5714285MHZ CMOS	Si550	36.5714285 MHz	CMOS	3.3V
550CF000256DGR	Skyworks有源晶振	XTAL OSC VCXO 27.9127092MHZ CMOS	Si550	27.9127092 MHz	CMOS	3.3V
550CF100M000DGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ CMOS	Si550	100 MHz	CMOS	3.3V
550CF125M000DGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ CMOS	Si550	125 MHz	CMOS	3.3V
550CF12M2880DGR	Skyworks有源晶振	XTAL OSC VCXO 12.2880MHZ CMOS	Si550	12.288 MHz	CMOS	3.3V
550CF16M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 16.0000MHZ CMOS	Si550	16 MHz	CMOS	3.3V
550CF20M0000DGR	Skyworks有源晶振	XTAL OSC VCXO 20.0000MHZ CMOS	Si550	20 MHz	CMOS	3.3V
