515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振，尺寸5.00x3.20mm，頻率為50MHZ，輸出CMOS，壓控晶體振蕩器，壓控有源晶振，有源貼片晶振，CMOS輸出晶振，低電壓晶振，低抖動晶振，低功耗晶振，Si515 VCXO利用Skyworks Solutions的先進PLL技術提供從100kHz到250MHz的任何頻率。不同于傳統的VCXO每個輸出頻率都需要不同的晶體，Si515有源晶振使用一個固定的晶體crystal和Skyworks Solutions的專有合成器，可生成任何頻率在這個范圍內。這種基于IC的方法允許晶體諧振器提供增強的可靠性、改進的機械堅固性和優異的穩定性。在里面此外，該解決方案提供了卓越的控制電壓線性度和電源噪聲抑制、提高PLL穩定性并簡化噪聲環境下的低抖動PLL設計環境。

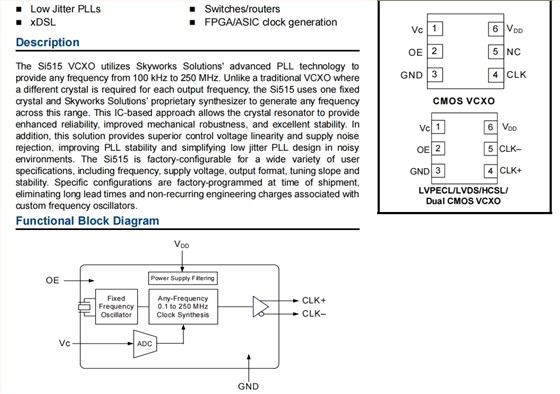

Si515 VCXO振蕩器可在工廠為各種用戶進行配置規格，包括頻率、電源電壓、輸出格式、調諧斜率和穩定性具體配置在出廠時進行編程，消除了與定制頻率振蕩器。產品很適合用于SONET/SDH/OTN,低抖動PLL,xDSL,廣播視頻,電信,交換機/路由器,FPGA/ASIC時鐘生成.515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振.
515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| Supply Voltage | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| SDA, SCL Input Voltage High | VIH | 0.80 x VDD | — | — | V | |||||||||
| SDA, SCL Input Voltage Low | VIL | — | — | 0.20 x VDD | V | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
|
Programmable Frequency Range |
FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||
| FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | |||||||||
|
Frequency Reprogramming Resolution |
MRES | — | 0.026 | — | ppb | |||||||||
|
Frequency Range for Small Frequency Change (Continuous Glitchless Output) |
From center frequency | –1000 | — | +1000 | ppm | |||||||||
|
Settling time for Small Frequency Change |
<±1000 ppm from center frequency |
— | — | 100 | µs | |||||||||
|
Settling time for Large Frequency Change (Out- put Squelched during Fre- quency Transition) |
>±1000 ppm from center frequency |
— | — | 10 | ms | |||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||
| Startup Time | TSU |
Minimum VDDuntil output frequency (FO) within specification |
— | — | 10 | ms | ||||||||
| Disable Time | TD | FO< 10 MHz | — | — | 40 | µs | ||||||||
| FO>10 MHz | — | — | 5 | µs | ||||||||||
| Enable Time | TE | FO< 10 MHz | — | — | 60 | µs | ||||||||
| FO>10 MHz | — | — | 20 | µs | ||||||||||

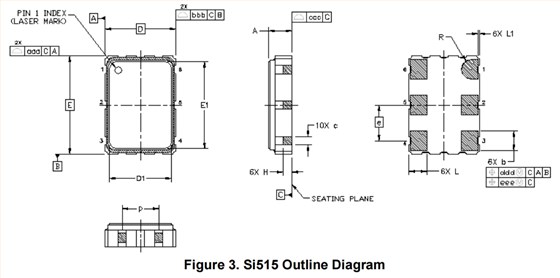

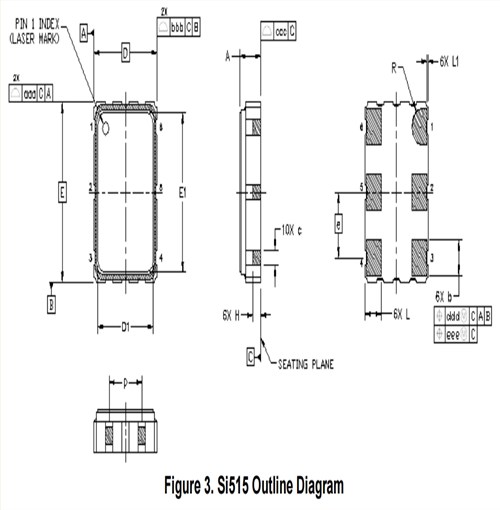

515NBB50M0000AAGR,Skyworks有源晶振,Si515壓控晶振,6G電信晶振 尺寸圖

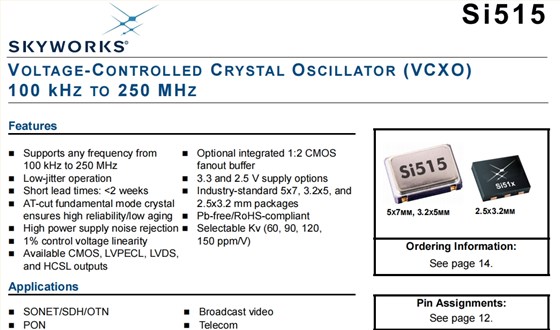

有源晶體振蕩器產品特征:
支持來自的任何頻率100kHz至250MHz
低抖動操作
交付周期短：<2周
AT切基模晶體確保高可靠性/低老化
高電源噪聲抑制
1%控制電壓線性
可用CMOS、LVPECL、LVDS，和HCSL輸出
可選集成1:2 CMOS扇出緩存
3.3和2.5 V電源選項

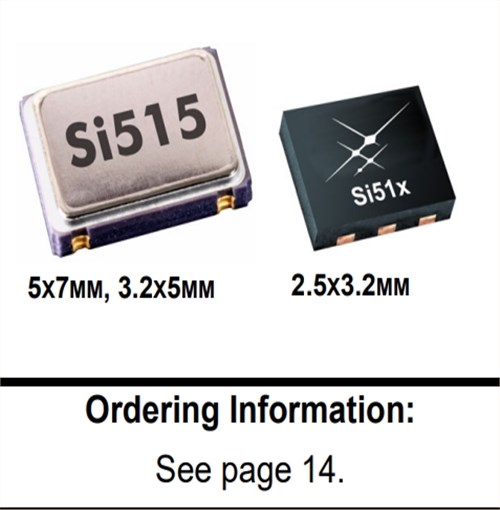

行業標準5x7、3.2x5和2.5x3.2 mm包裝
無鉛/符合RoHS
可選擇的Kv（60、90、120，150ppm/V）
