Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm，尺寸3.2x2.5mm，頻率50MHZ，無鉛有源晶振，歐美有源振蕩器，OSC振蕩器，有源晶體振蕩器，有源貼片晶振，3225mm有源晶振，時鐘晶體振蕩器，四腳有源晶振，攝像機專用有源晶振，低姿態應用有源晶振，無線模塊有源晶振，移動設備有源晶振，工業應用有源晶振，微波通信有源晶振，智能家居有源晶振，低抖動有源晶振，低功耗有源晶振，低相位有源晶振，低相噪有源晶振，具有低電壓低相位的特點。
DSC1033是3.3V固定頻率MEMS基于PureSsilicon™振蕩器?？梢允枪S編程為從1到的任何頻率150MHz。DSC1033有源晶振包含全硅諧振器非常堅固，幾乎對應力相關骨折免疫，常見于基于晶體的振蕩器。在不犧牲當今所需的性能和穩定性系統，無晶體設計允許更高級別的可靠性，使DSC1033適用于堅固耐用、工業級和便攜式應力、沖擊和振動的應用會損壞基于石英晶體的系統。Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm.
Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm 參數表
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | |||||||||||||||||||||||||
| Frequency | f0 | Single Frequency |
|
50 |
|
MHz | |||||||||||||||||||||||||
|
Frequency Tolerance Option 1 Option 2 Option 3 |
Δf |
-40°C to +85°C -20°C to +70°C 0°C to +70°C |
±25,±50 ±25,±50 ±25,±50 |
ppm | |||||||||||||||||||||||||||
| Supply Current, no load | IDD |
CL=0p RL=∞ T=25° C |
1 to 40MHz 40 to 80MHz 80 to 125MHz 125 to 150MHz |
3 4 5 6 |
10 | mA | |||||||||||||||||||||||||
| Supply Current, standby | IDD | T=25°C | 1.0 | uA | |||||||||||||||||||||||||||
|
Output Logic Levels Output logic high Output logic low |
VOH VOL |
CL=15pF |
0.8*VDD - |
- 0.2*VDD |
Volts | ||||||||||||||||||||||||||
|
Output Transition time Rise Time Fall Time |
tR tF |
CL=15pF; T=25°C 20%/80%*VDD |
1.3 1.3 |
2 2 |
ns | ||||||||||||||||||||||||||
| Output Startup Time2 | tSU | T=25°C | 1.5 | 3 | ms | ||||||||||||||||||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | |||||||||||||||||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | |||||||||||||||||||||||||||
|
Input Logic Levels Input logic high Input logic low |
VIH VIL |
0.75*VDD - |
- 0.25* VDD |
Volts | |||||||||||||||||||||||||||
| Jitter, Cycle to Cycle | JCC | F = 100MHz3 | 95 | ps | |||||||||||||||||||||||||||

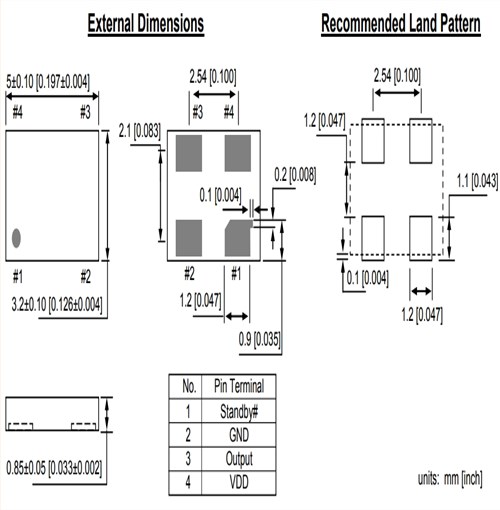

Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm 尺寸圖
Microchip振蕩器,DSC1033CE2-050.0000,50MHZ,DSC1033,3225mm

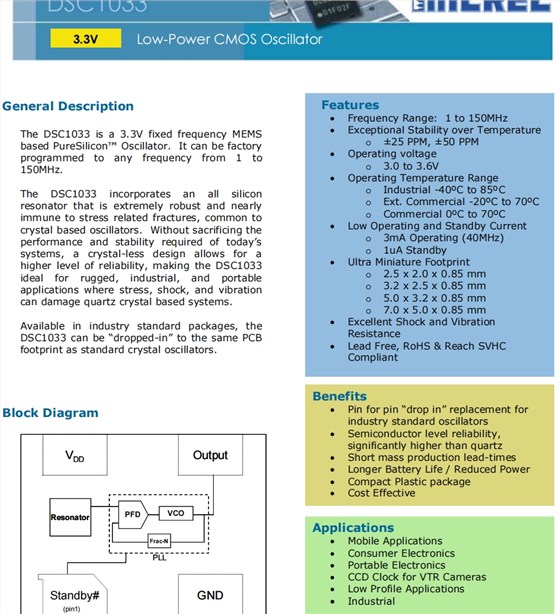

有源晶體振蕩器產品特性：
頻率范圍：1至150MHz
卓越的溫度穩定性
±25PPM，±50PPM
工作電壓
3.0至3.6V
工作溫度范圍
工業-40ºC至85ºC
外部商用-20ºC至70ºC
商用0ºC至70ºC
低工作和備用電流
3mA工作（40MHz）
1uA待機
超小型占地面積
2.5 x 2.0 x 0.85毫米
3.2 x 2.5 x 0.85毫米
5.0 x 3.2 x 0.85毫米
7.0 x 5.0 x 0.85毫米
卓越的沖擊和振動
無鉛、RoHS和Reach SVHC
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Type 類型 | Frequency 頻率 | Voltage - Supply電壓 |
| DSC6003HI2A-048.0000T | Microchip振蕩器 | DSC60XX | MEMS (Silicon) | 48MHz | 1.71 V ~ 3.63 V |
| DSC6003HI2A-012.0000T | Microchip振蕩器 | DSC60XX | MEMS (Silicon) | 12MHz | 1.71 V ~ 3.63 V |
| DSC1001CI2-108.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 108MHz | 1.8 V ~ 3.3 V |
| DSC1101DE2-008.0000 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 8MHz | 2.25 V ~ 3.6 V |
| DSC1121DI1-026.6000 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 26.6MHz | 2.25 V ~ 3.6 V |
| DSC1121CE1-025.0012 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 25.0012MHz | 2.25 V ~ 3.6 V |
| DSC1001CI1-024.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V |
| DSC1033BC2-012.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 12MHz | 3.3V |
| DSC1001CC1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.7 V ~ 3.6 V |
| DSC1001DE1-050.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.7 V ~ 3.6 V |
| DSC1001DE1-025.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 25MHz | 1.7 V ~ 3.6 V |
| DSC1033DE1-013.5600 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 13.56MHz | 3.3V |
| DSC1003DE1-040.0000 | Microchip振蕩器 | DSC1003 | MEMS (Silicon) | 40MHz | 1.8 ~ 3.3V |
| DSC1101DM2-033.3333 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V |
| DSC1001CE1-024.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24MHz | 1.8 V ~ 3.3 V |
| DSC1033CE2-050.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 50MHz | 3.3V |
| DSC1001BC1-020.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.8 V ~ 3.3 V |
| DSC1001CI1-016.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 16MHz | 1.8 V ~ 3.3 V |
| DSC1030DI1-042.5000 | Microchip振蕩器 | DSC1030 | MEMS (Silicon) | 42.5MHz | 3V |
| DSC1033DI1-020.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 20MHz | 3.3V |
| DSC1001CI1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1001CE2-022.5792 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 22.5792MHz | 1.7 V ~ 3.6 V |
| DSC1001CI1-033.3330 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V |
| DSC1033CI1-001.9800 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 1.98MHz | 3.3V |
| DSC1033CI1-010.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 10MHz | 3.3V |
| DSC1001CE2-003.5800 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 3.58MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-018.4320 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-030.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-066.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 66MHz | 1.7 V ~ 3.6 V |
| DSC1033DI1-032.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 32MHz | 3.3V |
| DSC1001CI1-033.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.7 V ~ 3.6 V |
| DSC1001DI1-033.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.7 V ~ 3.6 V |
| DSC1033CI1-002.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 2MHz | 3.3V |
| DSC1001DI1-027.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 27MHz | 1.7 V ~ 3.6 V |
| DSC1001AE1-006.1440 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 6.144MHz | 1.7 V ~ 3.6 V |
| DSC1033AI2-033.3333 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 33.3333MHz | 3.3V |
| DSC1033AI2-054.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 54MHz | 3.3V |
| DSC1001BI1-004.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 4MHz | 1.7 V ~ 3.6 V |
| DSC1001AE1-019.6608 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 19.6608MHz | 1.7 V ~ 3.6 V |
| DSC1121CE5-012.2880 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 12.288MHz | 2.25 V ~ 3.6 V |
| DSC1121CE5-024.5670 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 24.567MHz | 2.25 V ~ 3.6 V |
| DSC1001CI2-031.2500 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 31.25MHz | 1.7 V ~ 3.6 V |
| DSC1001AI1-055.3330 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 55.333MHz | 1.7 V ~ 3.6 V |
| DSC1001AI2-066.6670 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 66.667MHz | 1.7 V ~ 3.6 V |
| DSC1001AI2-010.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.7 V ~ 3.6 V |
| DSC1001BI1-033.3330 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33.333MHz | 1.7 V ~ 3.6 V |
| DSC1001BI2-006.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 6MHz | 1.7 V ~ 3.6 V |
| DSC1001BI2-030.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V |
| DSC1033BI1-004.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 4MHz | 3.3V |
| DSC1001BI2-026.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 26MHz | 1.7 V ~ 3.6 V |
| DSC1001BI2-033.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 33MHz | 1.7 V ~ 3.6 V |
| DSC1033CI2-012.2880 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 12.288MHz | 3.3V |
| DSC1001BI2-018.4320 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 18.432MHz | 1.7 V ~ 3.6 V |
| DSC1001CI2-012.5000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12.5MHz | 1.7 V ~ 3.6 V |
| DSC1001CI2-030.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V |
| DSC1033BI1-032.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 32MHz | 3.3V |
| DSC1001CI2-006.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 6MHz | 1.7 V ~ 3.6 V |
| DSC1001CI2-011.0592 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 11.0592MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-012.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12MHz | 1.8 V ~ 3.3 V |
| DSC1001BI2-050.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 50MHz | 1.8 V ~ 3.3 V |
| DSC1001CI2-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1001AI2-054.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 54MHz | 1.8 V ~ 3.3 V |
| DSC1033CI1-033.0000 | Microchip振蕩器 | DSC1033 | MEMS (Silicon) | 33MHz | 3.3V |
| DSC1121DI5-034.3680 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 34.368MHz | 2.25 V ~ 3.6 V |
| DSC1001BI1-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1001DE1-075.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 75MHz | 1.7 V ~ 3.6 V |
| DSC1001DC5-012.8000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 12.8MHz | 1.7 V ~ 3.6 V |
| DSC1018BC1-054.0000 | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 54MHz | 1.8V |
| DSC1018BC1-100.0000 | Microchip振蕩器 | DSC1018 | MEMS (Silicon) | 100MHz | 1.8V |
| DSC1003CI2-025.0000 | Microchip振蕩器 | DSC1003 | MEMS (Silicon) | 25MHz | 1.8 ~ 3.3V |
| DSC1001CL1-048.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 48MHz | 1.7 V ~ 3.6 V |
| DSC1001CL1-001.8432 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 1.8432MHz | 1.8 V ~ 3.3 V |
| DSC1101CL2-024.7500 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 24.75MHz | 2.25 V ~ 3.6 V |
| DSC1001BL1-016.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 16MHz | 1.7 V ~ 3.6 V |
| DSC1001CL1-020.0000T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 20MHz | 1.7 V ~ 3.6 V |
| DSC1101DM1-033.3333 | Microchip振蕩器 | DSC1101 | MEMS (Silicon) | 33.3333MHz | 2.25 V ~ 3.6 V |
| DSC1001DI2-014.7456T | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V |
| DSC1004DI2-012.0000 | Microchip振蕩器 | DSC1004 | MEMS (Silicon) | 12MHz | 1.8 ~ 3.3V |
| DSC1001CI5-044.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 44MHz | 1.7 V ~ 3.6 V |
| DSC1001CI5-011.0592 | Microchip Crystal | DSC1001 | MEMS (Silicon) | 11.0592MHz | 1.7 V ~ 3.6 V |
| DSC1001DI2-030.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 30MHz | 1.7 V ~ 3.6 V |
| DSC1001DI2-047.3885 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 47.3885MHz | 1.7 V ~ 3.6 V |
| DSC1028DI2-019.2000 | Microchip振蕩器 | DSC1028 | MEMS (Silicon) | 19.2MHz | 2.8V |
| DSC1001DI2-066.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 66MHz | 1.7 V ~ 3.6 V |
| DSC1003DI2-024.5760 | Microchip振蕩器 | DSC1003 | MEMS (Silicon) | 24.576MHz | 1.8 ~ 3.3V |
| DSC1001DI2-024.5454 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.5454MHz | 1.7 V ~ 3.6 V |
| DSC1121CE1-133.3333 | Microchip振蕩器 | DSC1121 | MEMS (Silicon) | 133.3333MHz | 2.25 V ~ 3.6 V |
| DSC1001DI1-074.2500 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 74.25MHz | 1.7 V ~ 3.6 V |
| DSC1001DI2-024.5455 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 24.5455MHz | 1.8 V ~ 3.3 V |
| DSC1001DI2-014.7456 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 14.7456MHz | 1.8 V ~ 3.3 V |
| DSC1001DI2-008.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 8MHz | 1.8 V ~ 3.3 V |
| DSC1001CI5-010.0000 | Microchip振蕩器 | DSC1001 | MEMS (Silicon) | 10MHz | 1.8 V ~ 3.3 V |
