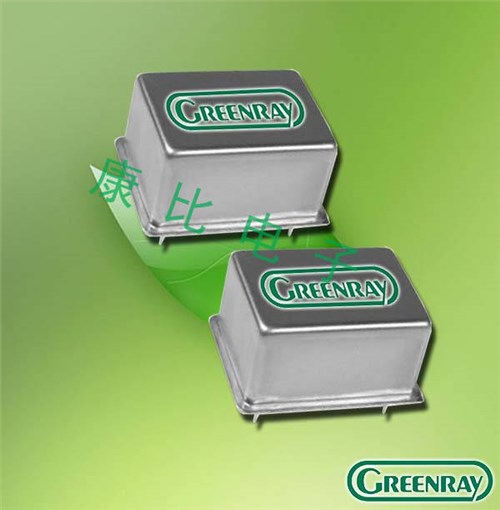

格林雷石英晶振,6G有源晶振,YH1310-N38-5.0-30MHz-E

產品簡介

Greenray格林雷晶振YH1300 系列,歐美進口晶振,編碼為YH1310-N38-5.0-30MHz-E,尺寸36.1 x 26.9mm四腳插件晶振,功率優化石英晶體振蕩器,工作溫度范圍: -40C ~ 85ºC ,石英晶振,插件晶振,石英晶體振蕩器,OSC晶振,歐洲進口晶振,有源晶振,低損耗、低耗能、低電壓、低抖動,供電電壓:12.0: 12.0 VDC,高穩定性晶振

產品詳情

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,Greenray格林雷晶振YH1300系列,歐美進口晶振,編碼為YH1310-N38-5.0-30MHz-E,尺寸36.1 x 26.9mm四腳插件晶振,功率優化石英晶體振蕩器,工作溫度范圍: -40C ~ 85ºC ,石英晶振,插件晶振,石英晶體振蕩器,OSC晶振,歐洲進口晶振,有源晶振,低損耗、低耗能、低電壓、低抖動,供電電壓:12.0: 12.0 VDC,高穩定性晶振,耐高溫晶振,Greenray格林雷工業是一家領先的精密晶體振蕩器,插件晶振,有源晶振,石英晶體振蕩器制造商.幾十年來我們所生產的晶振,石英晶體,石英晶振等產品的設計,測試,包裝都是經過一系列嚴格要求規范操作,我們所生產的有源晶振,貼片晶振,溫補振蕩器都是符合ITAR標準的,我們的質量管理體系認證為ISO:9001標準.有源晶振高頻振蕩器使用IC與晶片設計匹配技術：有源晶振是高頻振蕩器研發及生產過程必須要解決的技術難題,在設計過程中除了要考慮石英晶體諧振器具有的電性外，還有石英晶體振蕩器的電極設計等其它的特殊性，必須考慮石英晶體振蕩器的供應電壓、起動電壓和產品上升時間、下降時間等相關參數。

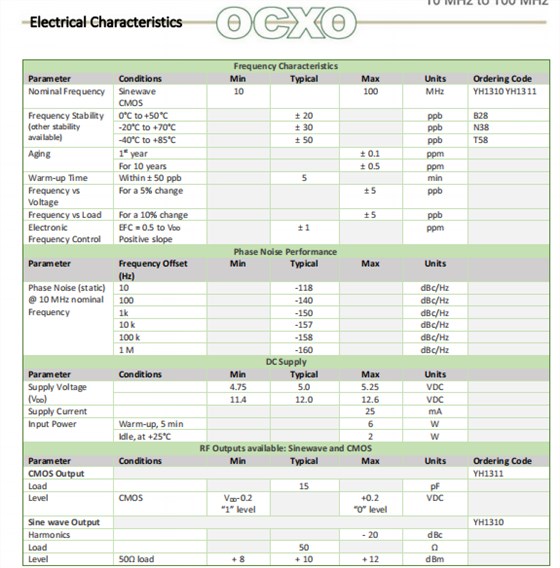

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振,參數表

FrequencyCharacteristics

Parameter

Conditions

Min

Typical

Max

Units

OrderingCode

Nominal Frequency

Sinewave
CMOS

100

MHz

YH1310 YH1311

Frequency Stability
(other stability
available)

0°C to +50°C

± 20

ppb

B28

-20°C to +70°C

± 30

ppb

N38

-40°C to +85°C

± 50

ppb

T58

Aging

1st year

± 0.1

ppm

For 10 years

± 0.5

ppm

Warm-up Time

Within ± 50 ppb

min

Frequency vs
Voltage

For a 5% change

± 5

ppb

Frequency vs Load

For a 10% change

± 5

ppb

Electronic
Frequency Control

EFC = 0.5 to VDD
Positive slope

± 1

ppm

PhaseNoisePerformance

Parameter

FrequencyOffset
(Hz)

Min

Typical

Max

Units

Phase Noise (static)
@ 10 MHz nominal
Frequency

--118

dBc/Hz

100

--140

dBc/Hz

--150

dBc/Hz

10 k

--157

dBc/Hz

100 k

--158

dBc/Hz

1 M

--160

dBc/Hz

DCSupply

Parameter

Conditions

Min

Typical

Max

Units

Supply Voltage
(VDD )

4.75

5.0

5.25

VDC

11.4

12.0

12.6

VDC

Supply Current

Input Power

Warm-up, 5 min

Idle, at +25°C

RFOutputsavailable:SinewaveandCMOS

Parameter

Conditions

Min

Typical

Max

Units

OrderingCode

CMOSOutput

YH1311

Load

Level

CMOS

VDD-0.2
“1” level

+0.2
“0” level

VDC

SinewaveOutput

YH1310

Harmonics

- 20

dBc

Load

Level

50? load

+ 8

+ 10

+ 12

dBm

EnvironmentalandMechanicalSpecifications

Screenings

Screening

Standard

Method,Condition

Description

Vibration

MIL-STD-202

204, Cond A

50 g, 20 to 2,000 Hz, swept sine

Shock

MIL-STD-202

213, Cond C

1,500 g, 0.5 ms half-sine

MIL-STD-810

541, Cond A

RecommendationsandGeneralInformation

Conditions

Parameter

Notes

Operating Temperature

-40°C to +85°C

Storage Temperature

-45°C to +90°C

Terminal Finish

SnPb 63/37 (non-RoHS)

Package Finish

Stainless Steel and Nickel-plated Kovar

Package Weight

14 grams

Soldering Instruction

Hand or reflow soldering

Shipping

Tray package

Marking

Line 1: Greenray logo
Line 2: Model
Line 3: Frequency
Line 4: Serial Number + Data Code (YYWW)

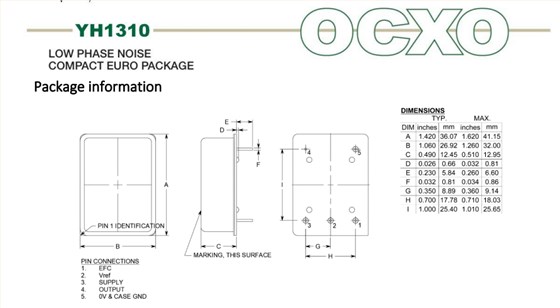

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振，尺寸圖

YH1310-36.1 x 26.9mm-1

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物聯網晶振

特點：

尺寸36.1 x 26.9mm四腳插件晶振石英晶振
工作溫度范圍-40-85℃歐美進口晶振
高精度、高頻率穩定性、可靠性
優良的耐環境特性，可達工業級溫度
滿足無鉛焊接的回流溫度曲線要求
◆符合RoHS標準，綠色環保
