KVG無源晶體\XMP-12132-A1-12pF-26MHz\6G通信專用晶振，尺寸為2.0*1.6mm，頻率26MHZ，KVG石英晶振，進口無源晶體，貼片無源晶振，石英晶體諧振器，石英晶體，SMD晶振，水晶振動子，石英貼片晶體，SMD無源晶振，進口無源晶振，低損耗無源晶體，高性能貼片晶振，高品質貼片晶振，通信專用貼片晶振，可穿戴設備專用晶振，物聯網專用晶振，儀器儀表晶振，工業應用晶振，產品具備低損耗高精度的特點.
無源晶體產品小型,薄型優勢,耐環境特性,包括耐高溫,耐沖擊性等,在移動通信領域得到了廣泛的應用,晶振產品本身可發揮優良的電氣特性,滿足無鉛焊接的高溫回流溫度曲線要求.KVG無源晶體\XMP-12132-A1-12pF-26MHz\6G通信專用晶振.KVG無源晶體\XMP-12132-A1-12pF-26MHz\6G通信專用晶振.

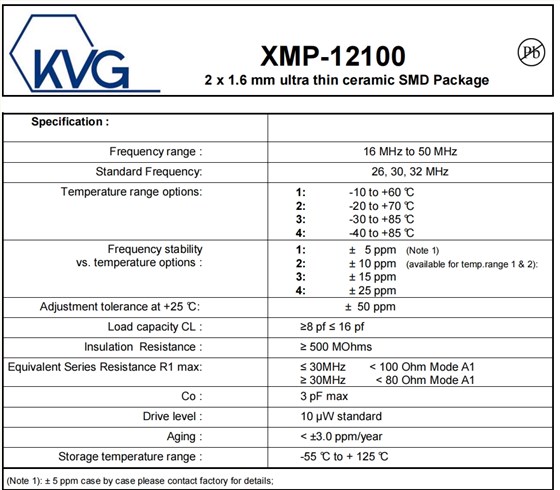

KVG無源晶體\XMP-12132-A1-12pF-26MHz\6G通信專用晶振參數表
Specification :
Frequency range :
26 MHz
Standard Frequency:
26, 30, 32 MHz
Temperature range options:
1:-10 to +60 °C
2:-20 to +70 °C
3:-30 to +85 °C
4:-40 to +85 °C
Frequency stability
vs. temperature options :
1:±5
2:± 10
3:± 15
4:± 25
ppm(Note 1)
ppm(available for temp.range 1 & 2):
ppm
ppm
Adjustment tolerance at +25 °C:
±50 ppm
Load capacity CL :
≥8 pf ≤ 16 pf
InsulationResistance :
≥ 500 MOhms
Equivalent Series Resistance R1 max:
≤ 30MHz
≥ 30MHz
< 100 Ohm Mode A1
< 80 Ohm Mode A1
Co :
3 pF max
Drive level :
10 μW standard
Aging :
< ±3.0 ppm/year
Storage temperature range :
-55 °C to + 125 °C

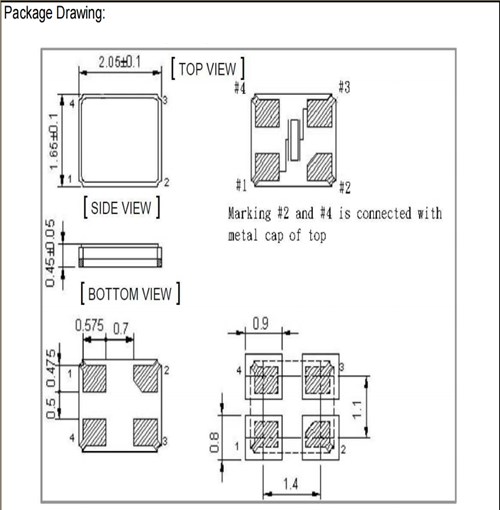

KVG無源晶體\XMP-12132-A1-12pF-26MHz\6G通信專用晶振 尺寸圖
石英晶振產品特性：
尺寸：2.0*1.6mm
頻率范圍：16-50MHZ
低損耗高性能的特點
更多相關KVG晶振型號，請聯系我們！
