1210mm超小型晶體,IQD時鐘晶振,32.768kHz IQXC-146 20/-/-/12.5,IQXC-146諧振器,英國無源晶振,IQD晶體諧振器,石英貼片晶振,貼片無源晶振,32.768KHZ時鐘晶振,貼片晶振,1210mm貼片晶體,尺寸1.2x1.0mm，頻率32.768KHZ,負載12.5pF,環保晶振,高品質晶振,低損耗晶振,千赫茲晶振,數字顯示晶振,數字水表晶振,實時時鐘晶振,收音機晶振.
1210mm超小型晶體,IQD時鐘晶振,32.768kHz IQXC-146 20/-/-/12.5,IQXC-146諧振器特點:
非常低的高度1.27 x 1.05mm SMD無源晶體，
密封帶有密封金屬蓋的密封陶瓷包裝。
適用于實時時鐘應用程序。

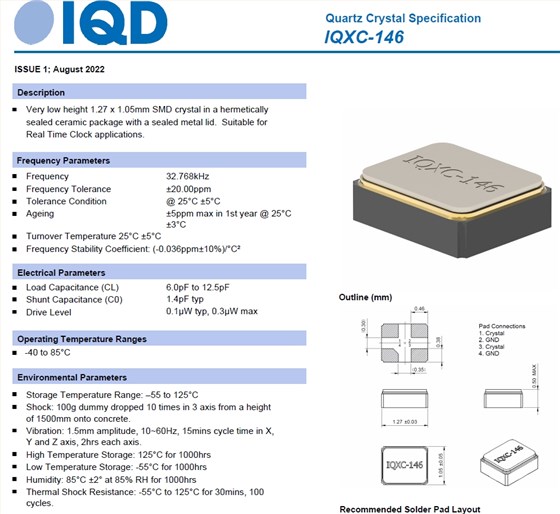

1210mm超小型晶體,IQD時鐘晶振,32.768kHz IQXC-146 20/-/-/12.5,IQXC-146諧振器 參數表
| Frequency | 32.768kHz |
| Frequency Tolerance | ±20.00ppm |
| Tolerance Condition | @ 25°C ±5°C |
| Ageing |
±5ppm max in 1st year @ 25°C ±3°C |
| Turnover Temperature | 25°C ±5°C |
| Frequency Stability Coefficient: | (-0.036ppm±10%)/°C² |
| Load Capacitance (CL) | 6.0pF to 12.5pF |
| Shunt Capacitance (C0) | 1.4pF typ |
| Drive Level | 0.1µW typ, 0.3µW max |
| Operating Temperature Ranges | -40 to 85°C |

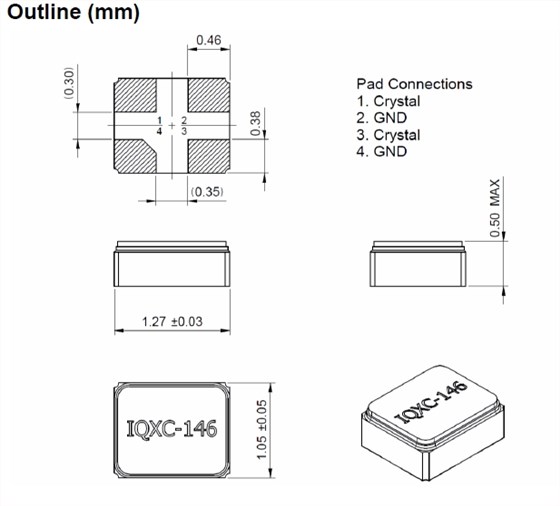

1210mm超小型晶體,IQD時鐘晶振,32.768kHz IQXC-146 20/-/-/12.5,IQXC-146諧振器 尺寸圖
