日本愛普生LVDS晶振也就是我們所說的EPSON差分晶振,具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號.

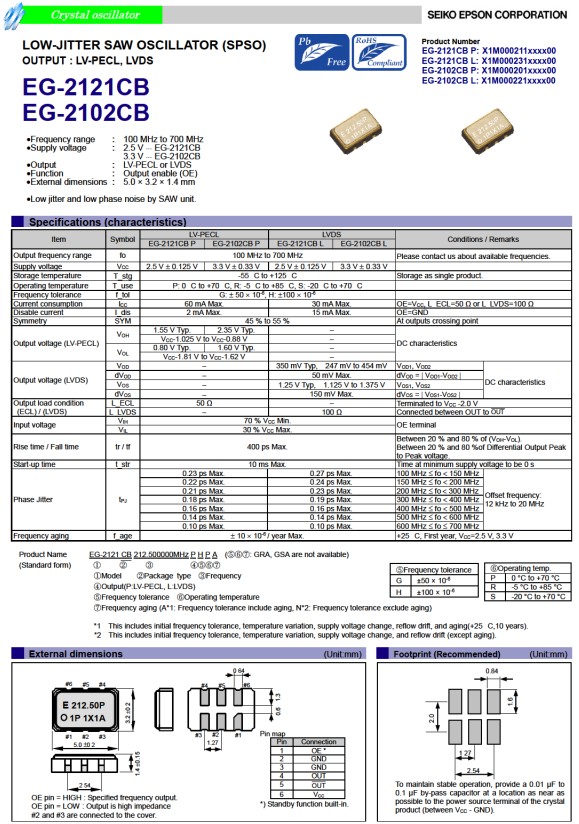

愛普生晶振EG-2121CB是一款低抖動表面聲波(SAW)振蕩器，支持LVDS輸出差分晶體振蕩器，小體積晶振尺寸5.0x3.2mm，六腳貼片晶振，有源晶振，寬頻率范圍從100MHz至700MHz，EG-2121CB有源晶振適用于使用2.5V電源電壓的應用，具有較低的相位抖動范圍從0.1ps到0.27ps(最大值)，該產品具有小體積輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低耗能，低損耗，低電平等特點。被廣泛應用于5G發射器，移動通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。5G發射器專用晶振EG-2121CB差分晶振X1M000231000700
| 產品編碼 |
 型號
|
 頻率
|
 貼片晶振
|
 輸出波
|
 電源電壓
|
 工作溫度
|
            X1M000231000200
|
EG-2121CB | 125.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231000300 | EG-2121CB | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231000400 | EG-2121CB | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231000500 | EG-2121CB | 402.832000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231000600 | EG-2121CB | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | -20 to 70 °C |
| X1M000231000700 | EG-2121CB | 133.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001000 | EG-2121CB | 500.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001100 | EG-2121CB | 402.832031MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001300 | EG-2121CB | 100.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M000231001400 | EG-2121CB | 441.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001500 | EG-2121CB | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M000231001600 | EG-2121CB | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C |
| X1M000231001700 | EG-2121CB | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001800 | EG-2121CB | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231001900 | EG-2121CB | 233.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231002000 | EG-2121CB | 200.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
| X1M000231002100 | EG-2121CB | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.375 to 2.625 V | 0 to 70 °C |
5G發射器專用晶振EG-2121CB差分晶振X1M000231000700
差分晶振近年來逐漸出現在我們的視線中，以及越來越多的電子工程師會更青睞差分晶振。隨著信息化的發展，差分晶振高性能、低功耗、低噪聲的優點，使其成為很多設計適合的方案。但仍有不少電子工程師對差分晶振選型上存在誤區以及盲點。差分晶振與常規晶振不同，差分晶振有不同的輸出信號，LVPECL，LVDS，HCSL是差分晶振通用的輸出信號。
