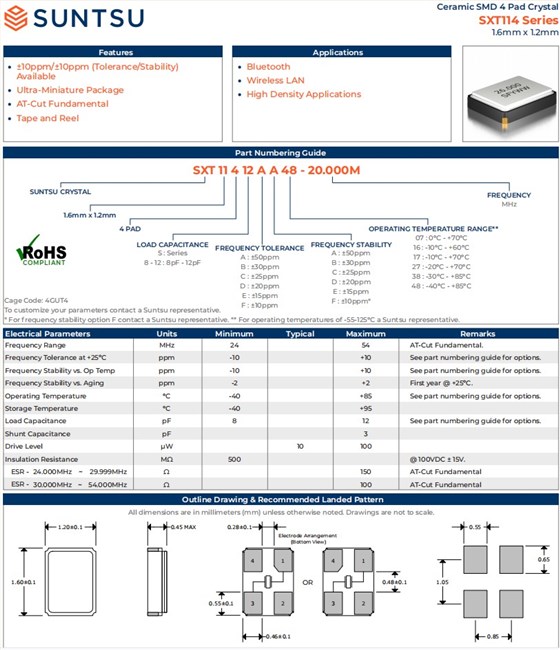

SUNTSU松圖晶振SXT114系列，是一款小體積晶振尺寸1.6mmx1.2mm超小型封裝，四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，無鉛環保晶振，SMD晶體，特點：頻率范圍：24MHz至54MHz，±10ppm/±10ppm（公差/穩定性）可用，工作溫度范圍：-40℃至+85℃，AT-Cut基礎，磁帶和卷軸，1612mm晶體應用于藍牙，無線局域網，可穿戴設備，小型便捷式設備，智能手機，平板電腦，高密度應用程序等。小體積石英晶體SXT11410AA16-30.000M非常適合高密度應用
| 產品編碼 | 美國松圖晶振 | 負載 | 頻率容差 | 頻率穩定性 | 工作穩定 | 頻率 |
| SXT11410AA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT11410AA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT11410AA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT11410AA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT11410AA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT11410AA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT11410AA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT11410AA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT11410AA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT11410AA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT11410AA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT11410AA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT11410AA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT11410AA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT11410AA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT11410AA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT11410AA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT11410AA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT11410AA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT11410AA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT11410AA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT11410AA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT11410AA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT11410AA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT11410AA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT11410AA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT11410AA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT11410AA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT11410AA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT11410AA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT11410AA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT11410AA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 27.120M |
| SXT11410AA27-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 30.000M |
| SXT11410AA27-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 32.000M |
| SXT11410AA27-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 38.400M |
| SXT11410AA27-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -20°C - +70°C | 40.000M |
| SXT11410AA38-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 24.000M |
| SXT11410AA38-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 25.000M |
| SXT11410AA38-26.000M | 1612貼片晶振 | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 26.000M |
| SXT11410AA38-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.000M |
| SXT11410AA38-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 27.120M |
| SXT11410AA38-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 30.000M |
| SXT11410AA38-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 32.000M |
| SXT11410AA38-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 38.400M |
| SXT11410AA38-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -30°C - +85°C | 40.000M |
| SXT11410AA48-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 24.000M |
| SXT11410AA48-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 25.000M |
| SXT11410AA48-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 26.000M |
| SXT11410AA48-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.000M |
| SXT11410AA48-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 27.120M |
| SXT11410AA48-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 30.000M |
| SXT11410AA48-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 32.000M |
| SXT11410AA48-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 38.400M |
| SXT11410AA48-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | ±50ppm | -40°C - +85°C | 40.000M |
| SXT11410BA07-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 24.000M |
| SXT11410BA07-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 25.000M |
| SXT11410BA07-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 26.000M |
| SXT11410BA07-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.000M |
| SXT11410BA07-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 27.120M |
| SXT11410BA07-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 30.000M |
| SXT11410BA07-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 32.000M |
| SXT11410BA07-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 38.400M |
| SXT11410BA07-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | 0°C - +70°C | 40.000M |
| SXT11410BA16-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 24.000M |
| SXT11410BA16-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 25.000M |
| SXT11410BA16-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 26.000M |
| SXT11410BA16-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.000M |
| SXT11410BA16-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 27.120M |
| SXT11410BA16-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 30.000M |
| SXT11410BA16-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 32.000M |
| SXT11410BA16-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 38.400M |
| SXT11410BA16-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +60°C | 40.000M |
| SXT11410BA17-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 24.000M |
| SXT11410BA17-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 25.000M |
| SXT11410BA17-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 26.000M |
| SXT11410BA17-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.000M |
| SXT11410BA17-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 27.120M |
| SXT11410BA17-30.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 30.000M |
| SXT11410BA17-32.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 32.000M |
| SXT11410BA17-38.400M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 38.400M |
| SXT11410BA17-40.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -10°C - +70°C | 40.000M |
| SXT11410BA27-24.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 24.000M |
| SXT11410BA27-25.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 25.000M |
| SXT11410BA27-26.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 26.000M |
| SXT11410BA27-27.000M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.000M |
| SXT11410BA27-27.120M | 1.6X1.2 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±50ppm | -20°C - +70°C | 27.120M |
