CTS晶振公司推出的425F35B025M0000無源晶振常常用于便攜設備

2022-10-21 16:13:20

CTS晶振公司推出的425F35B025M0000無源晶振常常用于便攜設備，CTS擁有多種無源晶體 (XTAL) 產品，可提供多種封裝類型和頻率。我們獨特的基本晶體是使用專有的蝕刻工藝開發的，以達到更高的頻率。我們?cè)谄?chē)市場的悠久歷史使我們了解汽車客戶的需求并提供正確的水晶解決方案。

無論您是開始一項具有關鍵規格的新設計，還是只需要現有應用的可靠來源，我們都有完美的石英晶振解決方案。聯系我們的團隊，幫助您從尺寸小至1.6×1.2mm的玻璃密封或接縫密封封裝中選擇一系列晶體。

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Frequency	Package / Case包裝/封裝	Size / Dimension 尺寸
425F35E027M0000	CTS晶振	425	27MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35E027M0000	CTS晶振	425	27MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B020M0000	CTS晶振	425	20MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B020M0000	CTS晶振	425	20MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B020M0000	CTS晶振	425	20MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B024M0000	CTS晶振	425	24MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B024M0000	CTS晶振	425	24MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B024M0000	CTS晶振	425	24MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B025M0000	CTS晶振	425	25MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B025M0000	CTS晶振	425	25MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B025M0000	CTS晶振	425	25MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B027M0000	CTS晶振	425	27MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B027M0000	CTS晶振	425	27MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)
425F35B027M0000	CTS晶振	425	27MHz	4-SMD, No Lead	0.098" L x 0.079" W (2.50mm x 2.00mm)

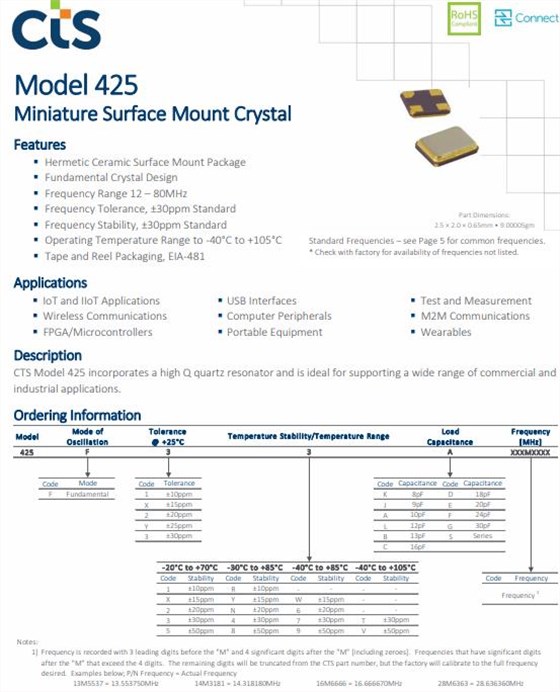

CTS 425型包含高Q石英諧振器，是支持廣泛的商業和工業應用。石英晶體諧振器編碼425F35B025M0000，密封陶瓷表面貼裝封裝,基礎晶體設計,頻率范圍12 - 80MHz,頻率公差，±30ppm標準,頻率穩定性，±30ppm標準,工作溫度范圍-40°C ~ +105°C,帶卷包裝，EIA-481,應用：物聯網和工業物聯網應用，無線通，F(xiàn)PGA /微控制器，USB接口，計算機外圍設備，便攜設備，測試與測量，M2M通信。CTS晶振公司推出的425F35B025M0000無源晶振常常用于便攜設備

CTS has a wide variety of crystal (XTAL) products that are available in multiple package types and frequencies. Our unique fundamental crystals are developed using a proprietary etching process to reach higher frequencies. Our long history in automotive market positions us understand the need of our automotive customers and provide the right crystal solution. We have the perfect crystal solution whether you are starting a new design with critical specifications or if you just need a reliable source for an existing application. Contact our team to help you select from a range of crystals available in glass seal or seam seal packages with sizes as small as 1.6×1.2mm.
